GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

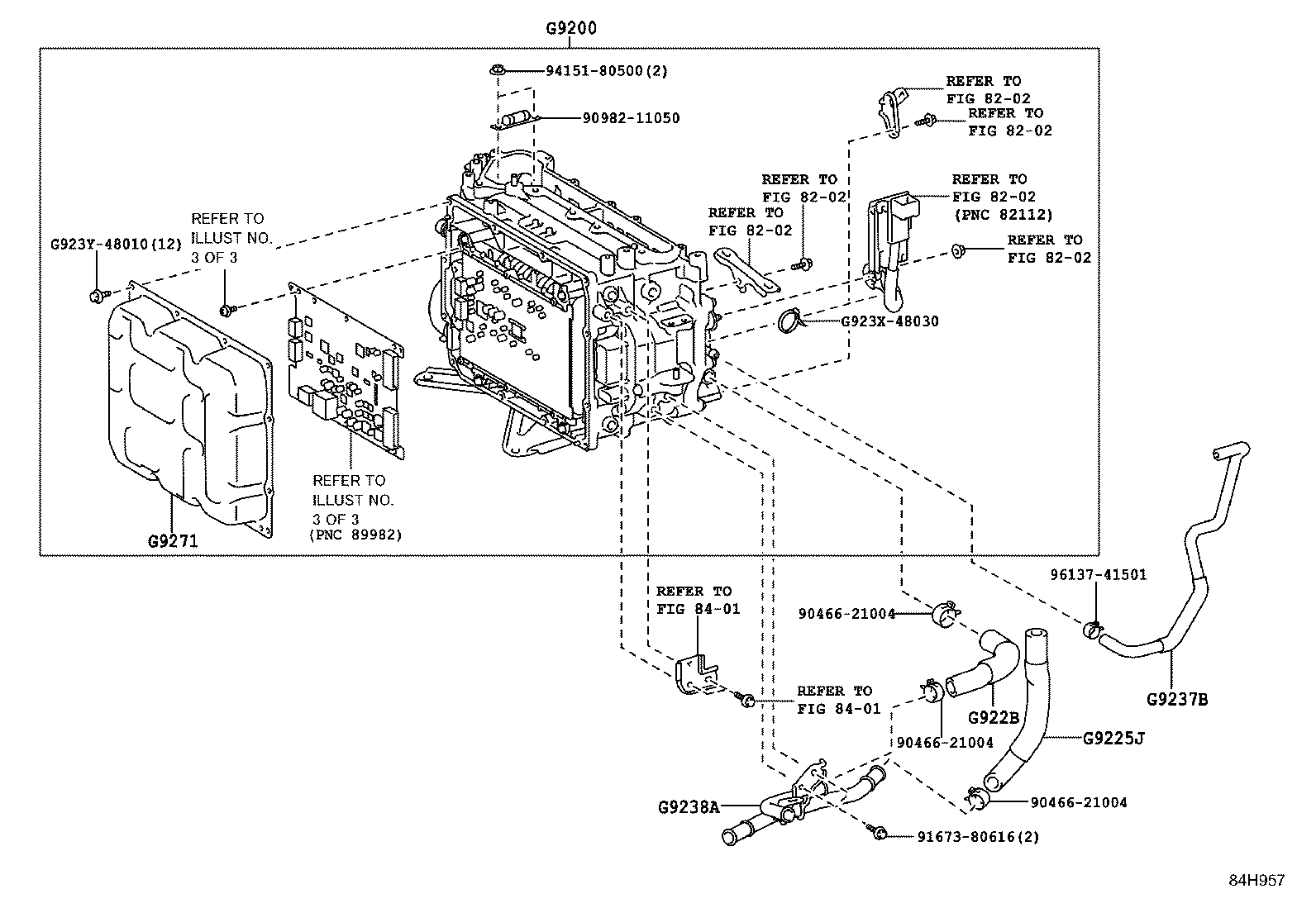

ILLUST NO. 2 OF 3(1406- )GYL1#

Click highlighted areas on diagram

diagram 8202 8202 8202 8202 8202 8202 8401 8401 9046621004 9046621004 9046621004 9098211050 9167380616 9415180500 9613741501 G9200 G9225J G922B G9237B G9238A G923X48030 G923Y48010 G9271
Part # Description Qty Price
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-48112

GYL15,16

 1
G92A0-48111

GYL15,16

 1
G92A0-48250

GYL15,16

 1
G9225J - HOSE, INVERTER COOLING, NO.1
G9225-48050

GYL1#

 1
G922B - HOSE, INVERTER COOLING INLET, NO.2
G922B-48010

GYL1#

 1
G9237B - HOSE, INVERTER DRAIN
G9237-48020

GYL1#

 1
G9238A - PIPE, INVERTER COOLING
G9238-48050

GYL1#

 1
G9238-48051

GYL1#

 1
G9271 - COVER, CONVERTER
G9271-48020

GYL1#

 1
Common parts
90466-21004
90982-11050
91673-80616
94151-80500
96137-41501
G923X-48030
G923Y-48010
Linked diagrams
8202
8401
