GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 8(1203- )

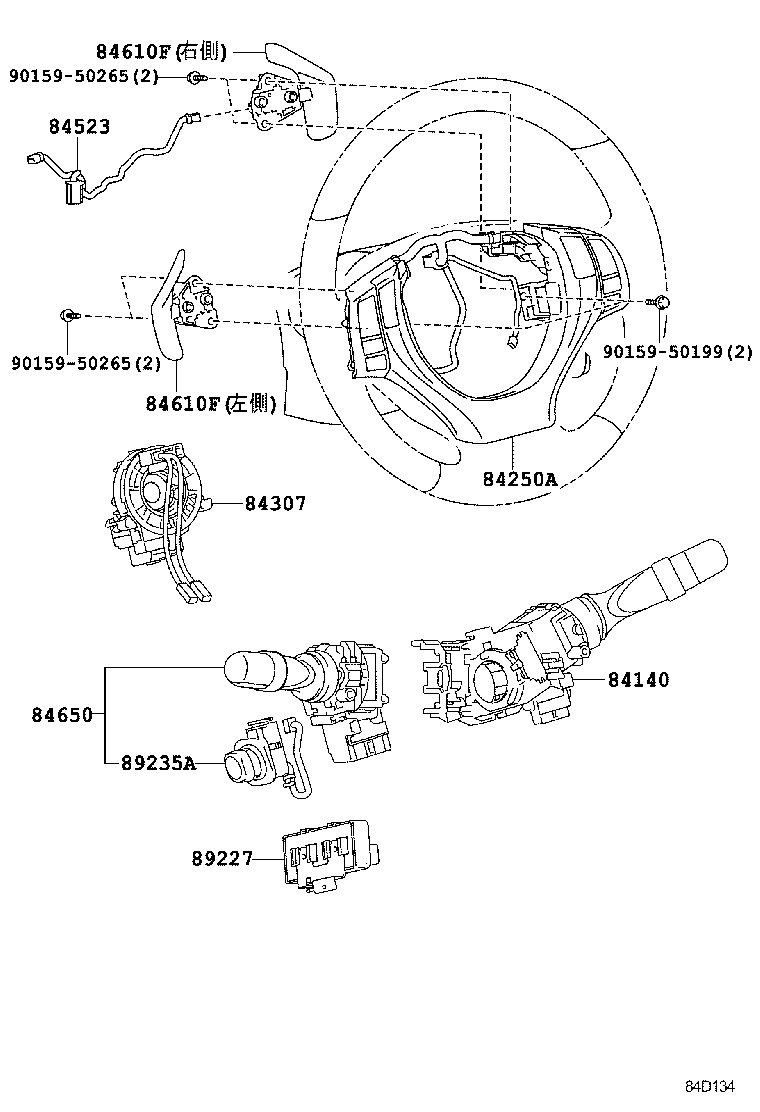

Click highlighted areas on diagram

ｽﾃｱﾘﾝｸﾞ

diagram 84140 84250A 84307 84523 84610F 84610F 84650 89227 89235A 9015950199 9015950265 9015950265
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-48170

AGL10,GGL1#,GYL1#

 1
84140-48180

AGL10,GGL1#,GYL1#

寒冷地仕様

 1
84140-48180

AGL10,GGL1#,GYL1#

寒冷地仕様

 1
84140-48170

AGL10,GGL1#,GYL1#

 1
84250A - SWITCH ASSY, STEERING PAD
84250-48220C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#

 1
84250-48220E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
84250-48250E0

GGL1#,GYL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB),DK. BROWN,TRIM0#

 1
84250-48380

GGL1#,GYL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
84250-48250C0

GGL1#,GYL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB),BLACK,TRIM1#,2#

 1
84250-48360

AGL10,GGL1#,GYL1#

 1
84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR
84307-48110

AGL10,GGL1#,GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)

 1
84307-48110

AGL10,GGL1#,GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目(ﾊﾞﾝﾌﾞ),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)

 1
84307-48100

AGL10,GGL1#,GYL1#

 1
84307-0E080

AGL10,GGL1#,GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),(L)

 1
84307-48110

AGL10,GGL1#,GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),(J)

 1
84307-0E070

AGL10,GGL1#,GYL1#

(L)

 1
84307-48110

GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目(ﾊﾞﾝﾌﾞ),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),(J)

 1
84307-30090

AGL10,GGL1#,GYL1#

 1
84307-48100

AGL10,GGL1#,GYL1#

(J)

 1
84307-0E080

GYL1#

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目(ﾊﾞﾝﾌﾞ),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),(L)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-48150

AGL10,GGL1#,GYL1#

 1
84652-48151

AGL10,GGL1#,GYL1#

 1
84652-48150

AGL10,GGL1#,GYL1#

 1
89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC
89227-48040

AGL10,GGL1#,GYL1#

 1
89227-48040

AGL10,GGL1#,GYL1#

 1
89235A - SWITCH, TILT & TELESCOPIC
89235-30120

AGL10,GGL1#,GYL1#

 1
89235-30120

AGL10,GGL1#,GYL1#

 1
Common parts
90159-50199
90159-50265
