Toyota Lexus rx270/350/450h GYL16 FOG LAMP

GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015

Engine 2GRFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

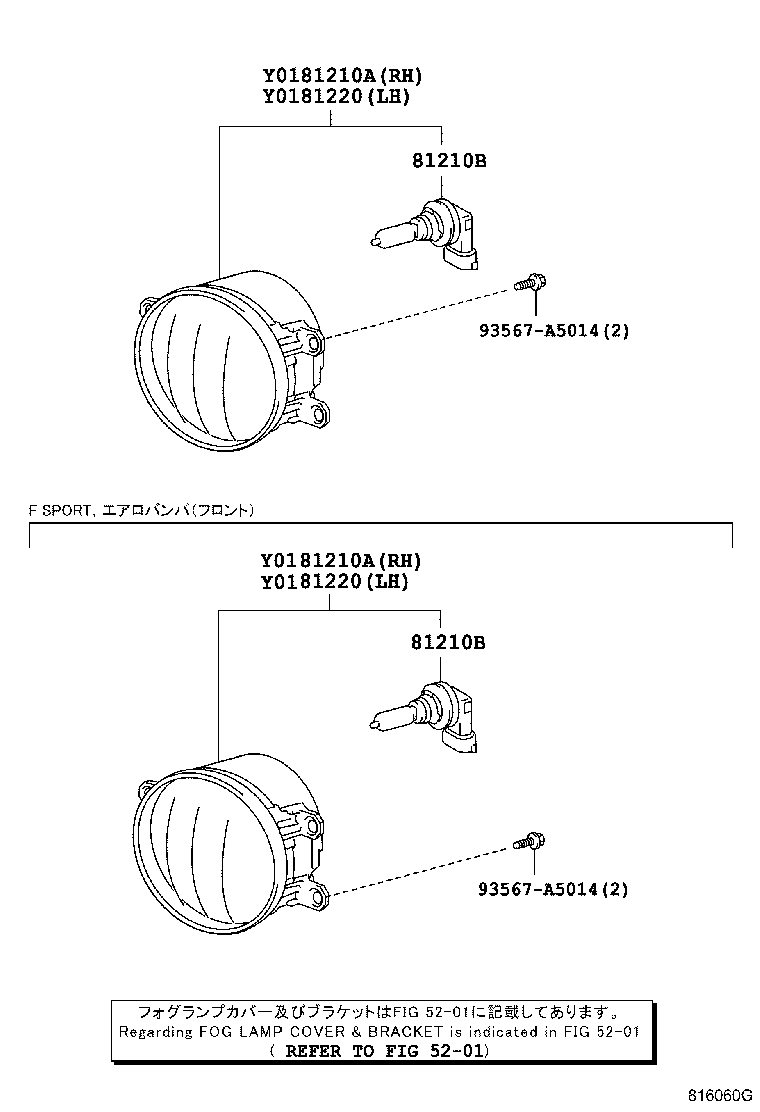

(1203-1308)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81210-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81210-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81210-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81210-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81210A - LAMP ASSY, FOG, RH
81210-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81210-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81210-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81210-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81210-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81210B - BULB, FOG LAMP
90981-1309079	AGL10,GGL1#,GYL1# 12V 19W	08/2013 - 12/2999	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	12/2008 - 03/2012	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	12/2008 - 03/2012	2
81210B - BULB, FOG LAMP
90981-1309079	AGL10,GGL1#,GYL1# 12V 19W	08/2013 - 12/2999	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	12/2008 - 03/2012	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	12/2008 - 03/2012	2
81220 - LAMP ASSY, FOG, LH
81220-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81220-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81220-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81220-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81220-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81220 - LAMP ASSY, FOG, LH
81220-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81220-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81220-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81220-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81220-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
Common parts
93567-A5014
Linked diagrams
5201

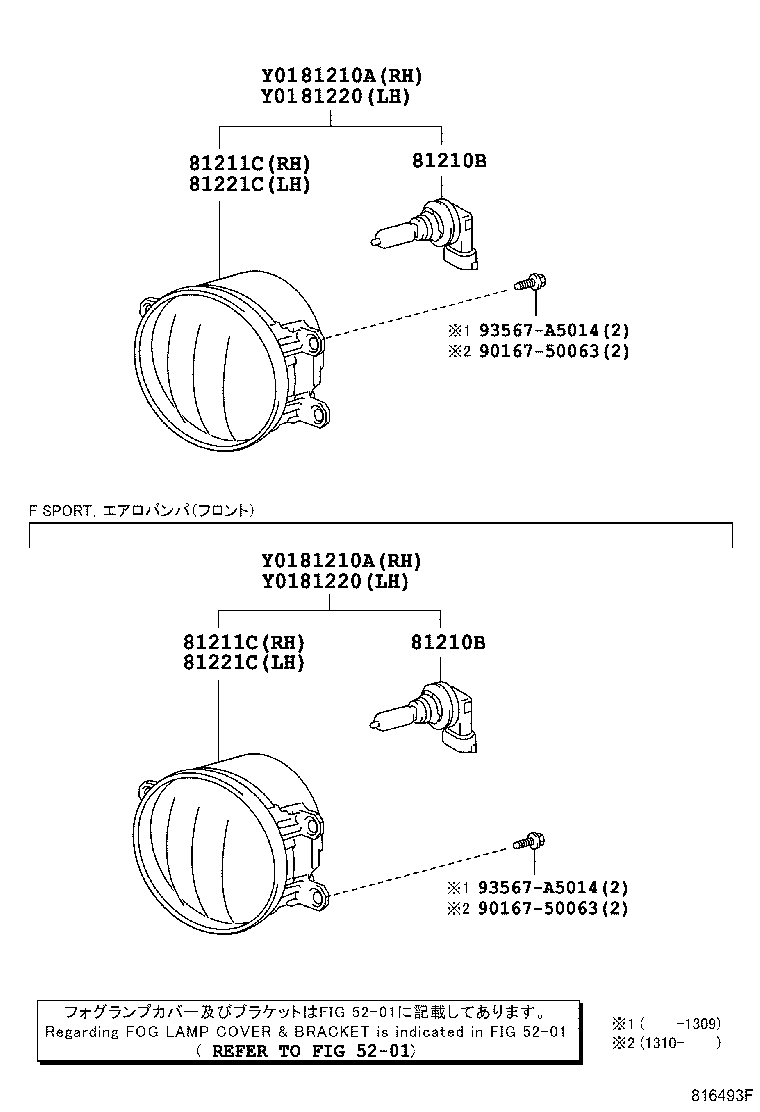

(1308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81210-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81210-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81210-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81210-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81210A - LAMP ASSY, FOG, RH
81210-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81210-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81210-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81210-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81210-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81210B - BULB, FOG LAMP
90981-1309079	AGL10,GGL1#,GYL1# 12V 19W	08/2013 - 12/2999	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	12/2008 - 03/2012	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	12/2008 - 03/2012	2
81210B - BULB, FOG LAMP
90981-1309079	AGL10,GGL1#,GYL1# 12V 19W	08/2013 - 12/2999	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	03/2012 - 08/2013	2
90981-1307579	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	12/2008 - 03/2012	2
90981-1308179	AGL10,GGL1#,GYL1# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	12/2008 - 03/2012	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12230	AGL10,GGL1#,GYL1#	08/2013 - 09/2014	1
81211-47010	AGL10,GGL1#,GYL1#	09/2014 - 12/2999	1
81211C - LAMP UNIT, FOG LAMP, RH
81211-12230	AGL10,GGL1#,GYL1#	08/2013 - 09/2014	1
81211-47010	AGL10,GGL1#,GYL1#	09/2014 - 12/2999	1
81220 - LAMP ASSY, FOG, LH
81220-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81220-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81220-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81220-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81220-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81220 - LAMP ASSY, FOG, LH
81220-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81220-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81220-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81220-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81220-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010	AGL10,GGL1#,GYL1#	09/2014 - 12/2999	1
81221-12230	AGL10,GGL1#,GYL1#	08/2013 - 09/2014	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010	AGL10,GGL1#,GYL1#	09/2014 - 12/2999	1
81221-12230	AGL10,GGL1#,GYL1#	08/2013 - 09/2014	1
Common parts
90167-50063
93567-A5014
Linked diagrams
5201

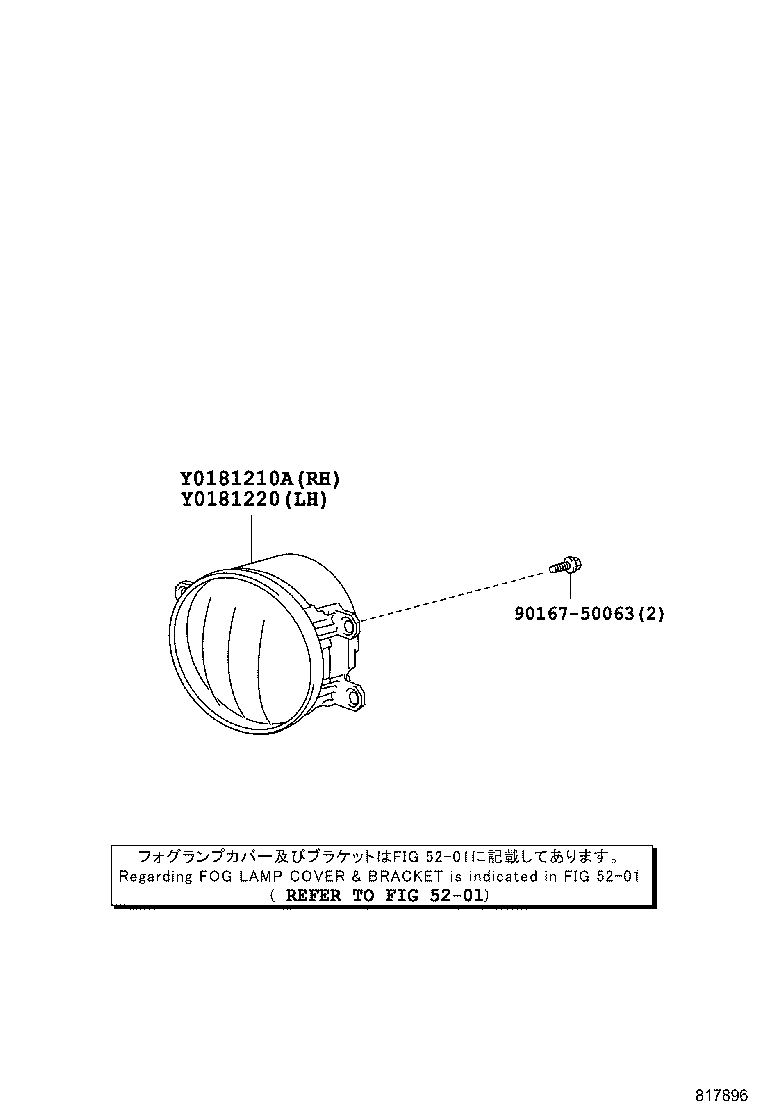

(1403- )

Click highlighted areas on diagram

LED

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81210-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81210-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81210-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81210-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
81220 - LAMP ASSY, FOG, LH
81220-12230	AGL10,GGL1#,GYL1#	08/2013 - 08/2014	1
81220-0D041	GGL1#,GYL1#	12/2008 - 04/2010	1
81220-48050	GYL16 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)	03/2014 - 08/2014	1
81220-0D042	AGL10,GGL1#,GYL1#	03/2012 - 08/2013	1
81220-47010	AGL10,GGL1#,GYL1#	09/2014 - 09/2015	1
Common parts
90167-50063
Linked diagrams
5201

GYL16W-AWXGK (2012)

(1203-1308)

(1308- )

(1403- )
