GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )

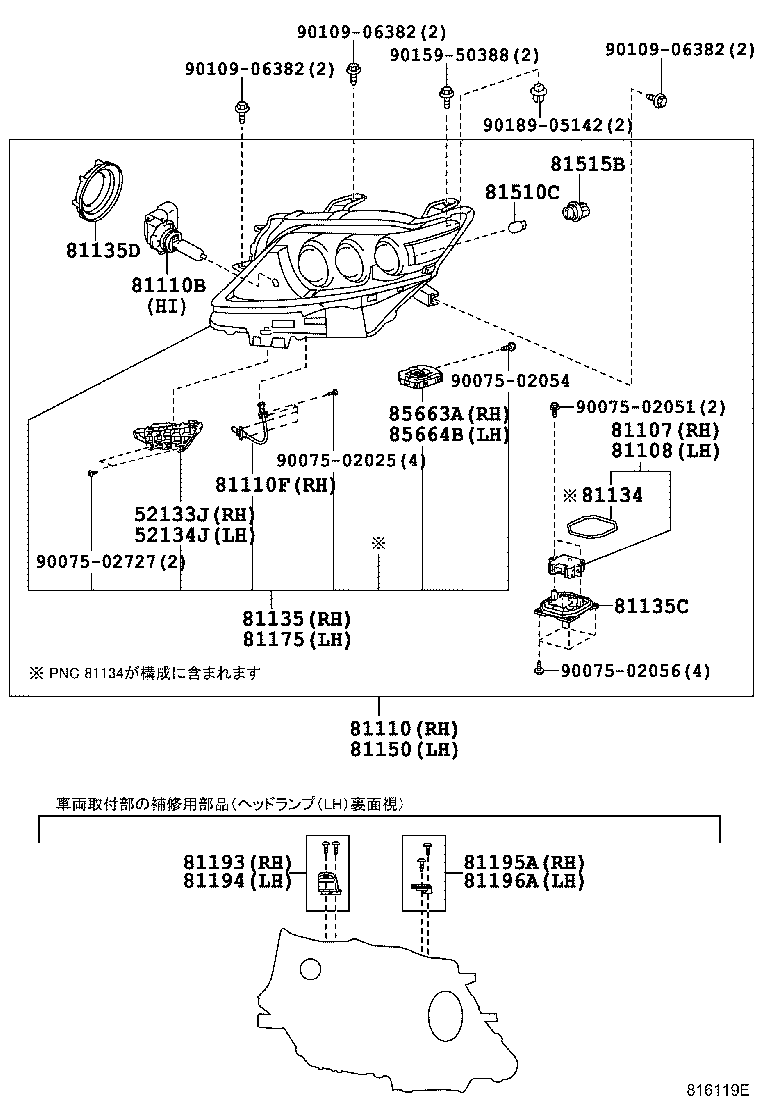

Click highlighted areas on diagram

LED

diagram 52133J 52134J 81107 81108 81110 81110B 81110F 81134 81135 81135C 81135D 81150 81175 81193 81194 81195A 81196A 81510C 81515B 85663A 85664B 9007502025 9007502051 9007502054 9007502056 9007502727 9010906382 9010906382 9010906382 9015950388 9018905142
Part # Description Qty Price
52133J - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-48020

AGL10,GGL1#,GYL1#

 1
52133-48030

AGL10,GGL1#,GYL1#

 1
52134J - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-48030

AGL10,GGL1#,GYL1#

 1
52134-48040

AGL10,GGL1#,GYL1#

 1
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-48B60

AGL10,GGL1#,GYL1#

 1
81107-12A80

GGL1#,GYL1#

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-12A80

GGL1#,GYL1#

 1
81107-48B60

AGL10,GGL1#,GYL1#

 1
81110 - HEADLAMP ASSY, RH
81110-48C20

AGL10,GGL1#,GYL1#

 1
81110-48B90

AGL10,GGL1#,GYL1#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-1308479

AGL10,GGL1#,GYL1#

12V 65W,ﾊﾛｹﾞﾝ

 2
81110F - GEAR UNIT ASSY, RH NO.1
90075-50025

GYL1#

 1
90075-50027

AGL10,GGL1#,GYL1#

 1
81134 - GASKET, HEADLAMP
81134-48B60

AGL10,GGL1#,GYL1#

 1
90075-68007

AGL10,GGL1#,GYL1#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-48B90

AGL10,GGL1#,GYL1#

 1
81145-48C20

AGL10,GGL1#,GYL1#

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-48B60

AGL10,GGL1#,GYL1#

 2
81135-24160

GYL1#

 2
81135D - COVER, HEADLAMP BACK, NO.2
81135-24160

AGL10,GGL1#,GYL1#

 2
81150 - HEADLAMP ASSY, LH
81150-48B90

AGL10,GGL1#,GYL1#

 1
81150-48C20

AGL10,GGL1#,GYL1#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-48B90

AGL10,GGL1#,GYL1#

 1
81185-48C20

AGL10,GGL1#,GYL1#

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-48080

AGL10,GGL1#,GYL1#

 1
81193-48080

AGL10,GGL1#,GYL1#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-48080

AGL10,GGL1#,GYL1#

 1
81194-48080

AGL10,GGL1#,GYL1#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-48050

AGL10,GGL1#,GYL1#

 1
81195-48050

AGL10,GGL1#,GYL1#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-48050

AGL10,GGL1#,GYL1#

 1
81196-48050

AGL10,GGL1#,GYL1#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-1502179

AGL10,GGL1#,GYL1#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-1502179

AGL10,GGL1#,GYL1#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

AGL10,GGL1#,GYL1#

 2
90075-60028

AGL10,GGL1#,GYL1#

 2
85663A - MOTOR, HEADLAMP SWIVEL, RH
85663-30030

AGL10,GGL1#,GYL1#

 1
85664B - MOTOR, HEADLAMP SWIVEL, LH
85664-30030

AGL10,GGL1#,GYL1#

 1
Common parts
90075-02025
90075-02051
90075-02054
90075-02056
90075-02727
90109-06382
90159-50388
90189-05142
