GYL16W-AWXGK (2012)
Toyota Lexus Rx270/350/450h
Production
Mar 2012
-
Sep 2015
Engine
2GRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

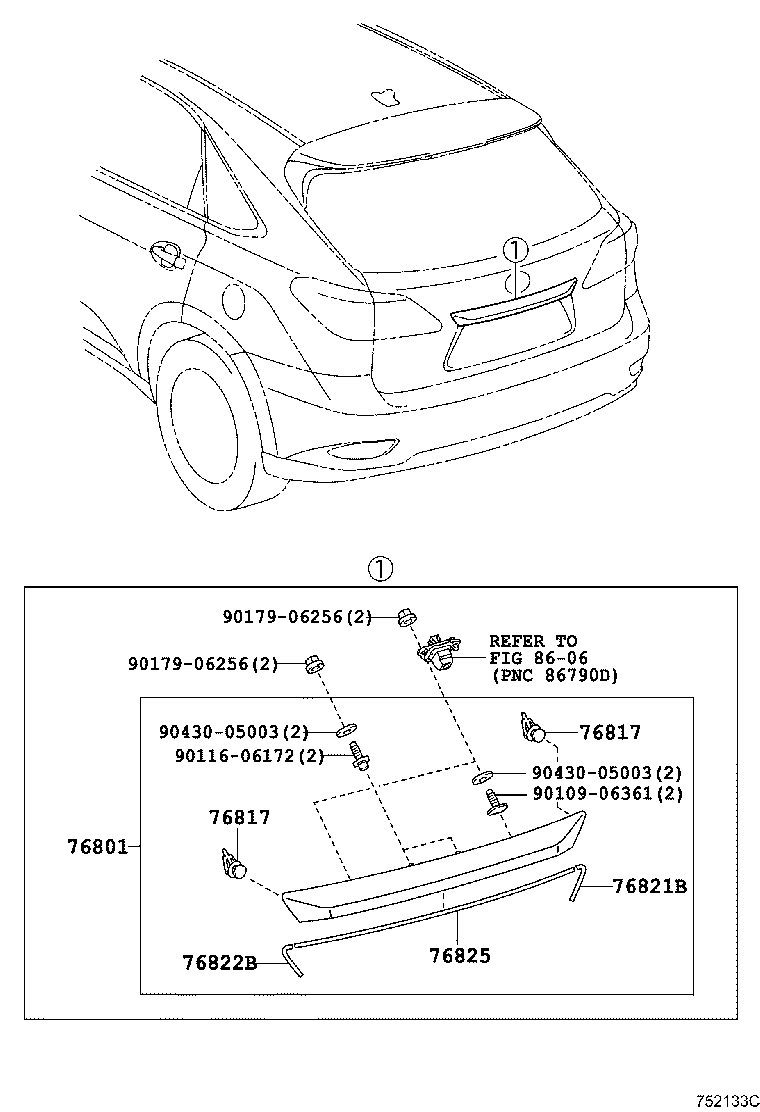

(0812-1308)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-48250 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76801-48230 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76801-48410 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76821-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76822-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76825-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| Common parts | ||||
| 90109-06361 | ||||
| 90116-06172 | ||||
| 90179-06256 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 8606 | ||||

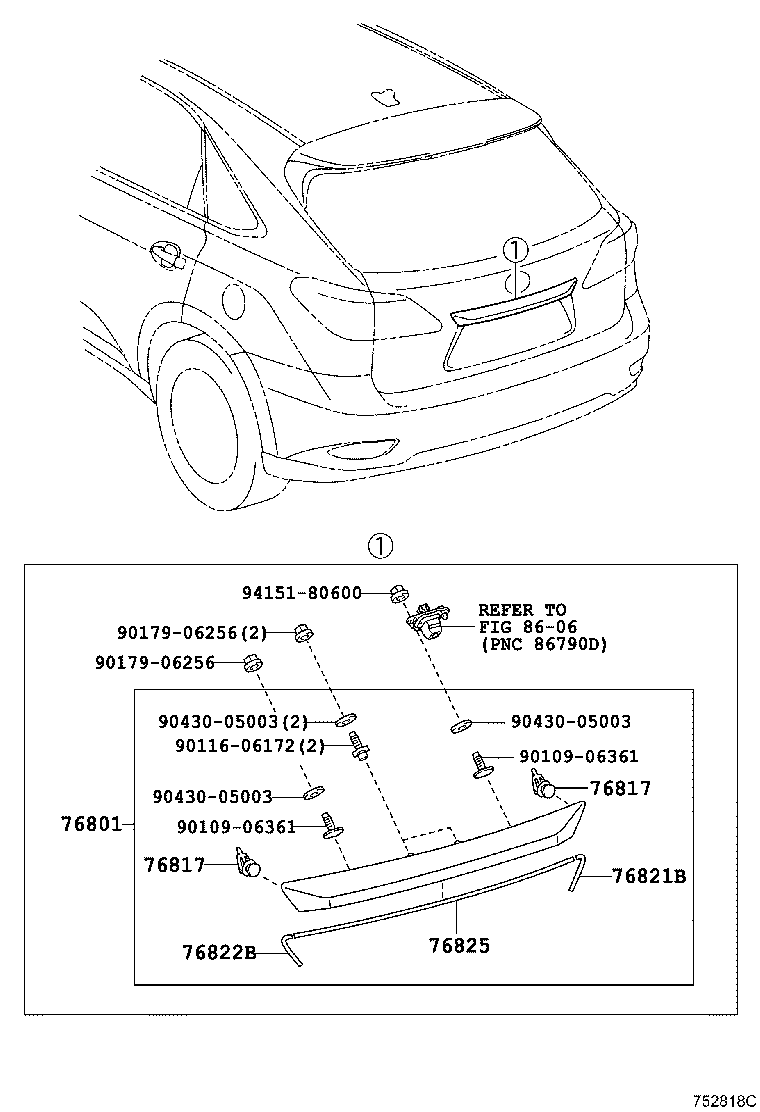

(1308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-48250 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76801-48230 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76801-48410 |
AGL10,GGL1#,GYL1# ﾒｯｷ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76817-50010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76821-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76822-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 76825-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| Common parts | ||||
| 90109-06361 | ||||
| 90116-06172 | ||||
| 90179-06256 | ||||
| 90430-05003 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
