GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )

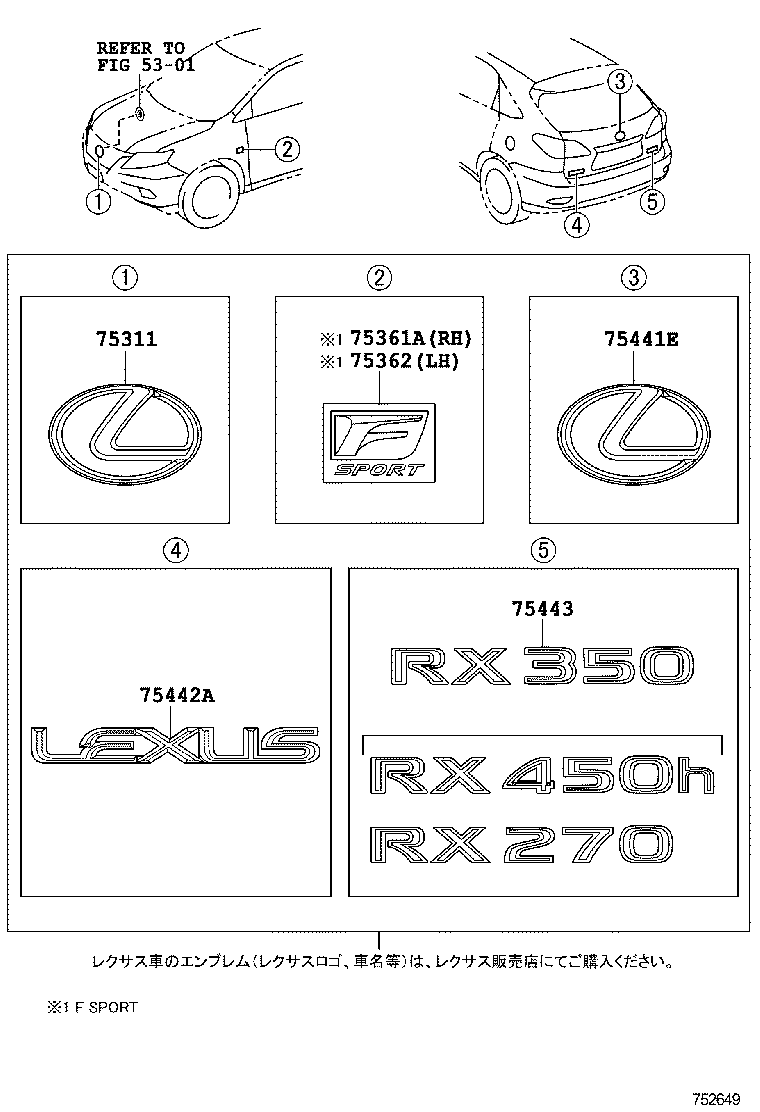

Click highlighted areas on diagram

diagram 5301 75311 75361A 75362 75441E 75442A 75443
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
53141-4806079

GYL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB),購入時はｲﾗｽﾄ参照

 1
90975-0212679

GYL1#

購入時はｲﾗｽﾄ参照

 1
53141-4806079

GYL1#

ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB),購入時はｲﾗｽﾄ参照

 1
75441E - PLATE, BACK DOOR NAME, NO.1
90975-0222879

GYL1#

購入時はｲﾗｽﾄ参照

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-4811079

AGL10,GGL1#,GYL1#

LEXUS,購入時はｲﾗｽﾄ参照

 1
75442-4811079

AGL10,GGL1#,GYL1#

LEXUS,購入時はｲﾗｽﾄ参照

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-4814079

GYL1#

RX450H,購入時はｲﾗｽﾄ参照

 1
Linked diagrams
5301
