GYL16W-AWXGK (2012)
Toyota Lexus Rx270/350/450h

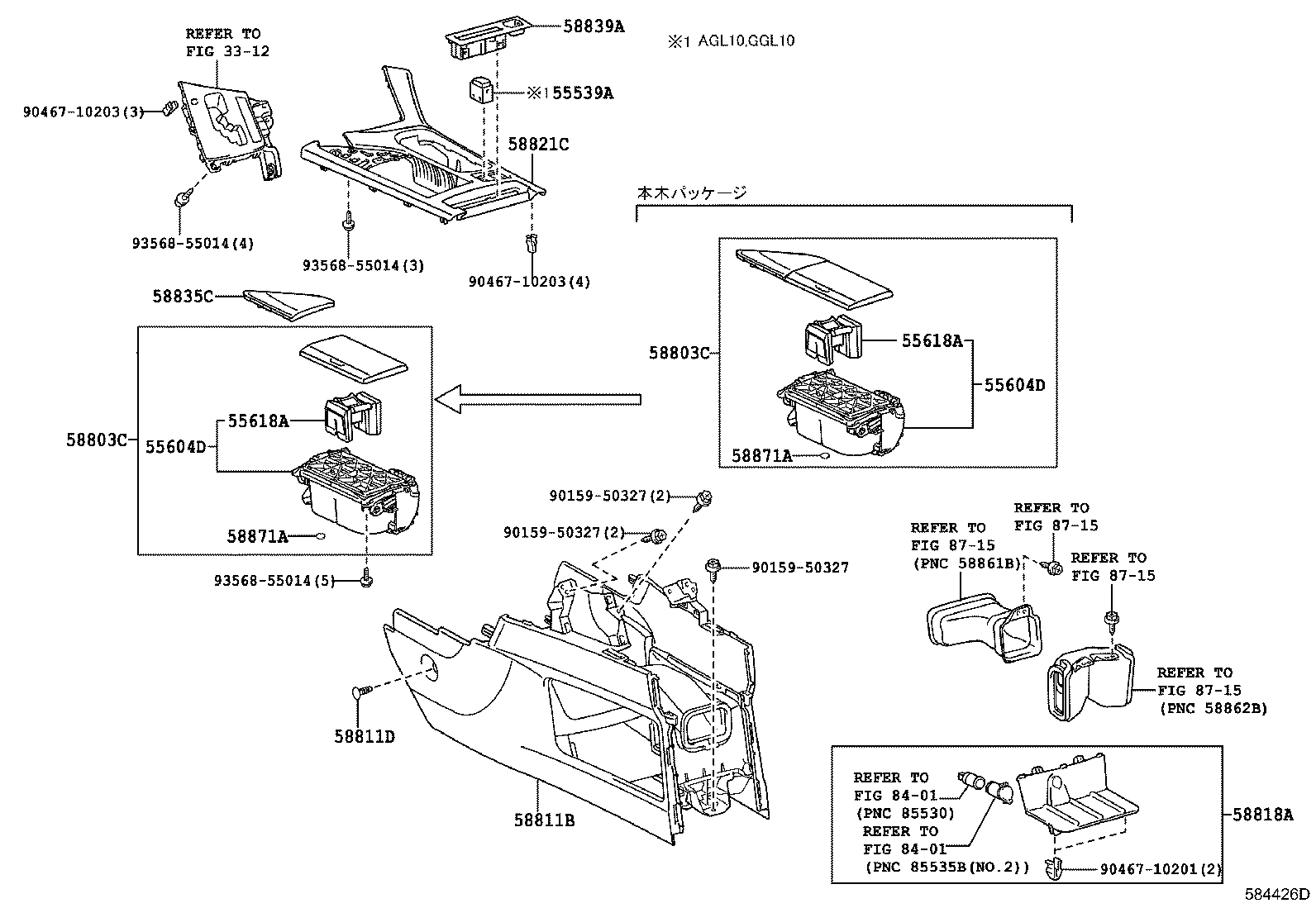

ILLUST NO. 1 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-48100 |
AGL10,GGL10,GYL1# |
1 | ||
| 55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-48070 |
GYL16 |
1 | ||
| 55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-48070 |
GYL16 |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55618-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 55618-48180 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-48040E0 |
GGL16,GYL16 本木目ﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM1# |
1 | ||
| 58803-48040E1 |
GGL1#,GYL1# 本木目ﾊﾟｯｹｰｼﾞ,MD.BROWN,TRIM0#,2# |
1 | ||
| 58803-48020 |
GGL16,GYL16 |
1 | ||
| 58803-48040E0 |
GGL16,GYL16 本木目ﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM1# |
1 | ||
| 58803-48041C2 |
GYL16 DARK GRAY,TRIM1#,2#,3# |
1 | ||
| 58803-48041E0 |
GYL16 DK.BROWN,TRIM0#,4# |
1 | ||
| 58803-48041C2 |
GYL16 DARK GRAY,TRIM10,20,30 |
1 | ||
| 58803-48040E1 |
GGL1#,GYL1# 本木目ﾊﾟｯｹｰｼﾞ,MD.BROWN,TRIM0#,2# |
1 | ||
| 58803-48041F0 |
GYL16 NATURAL BROWN,TRIM00,10,20,30,40 |
1 | ||
| 58803-48041E0 |
GYL16 DK.BROWN,TRIM00,40 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-48040E0 |
GGL16,GYL16 本木目ﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM1# |
1 | ||
| 58803-48040E1 |
GGL1#,GYL1# 本木目ﾊﾟｯｹｰｼﾞ,MD.BROWN,TRIM0#,2# |
1 | ||
| 58803-48020 |
GGL16,GYL16 |
1 | ||
| 58803-48040E0 |
GGL16,GYL16 本木目ﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM1# |
1 | ||
| 58803-48041C2 |
GYL16 DARK GRAY,TRIM1#,2#,3# |
1 | ||
| 58803-48041E0 |
GYL16 DK.BROWN,TRIM0#,4# |
1 | ||
| 58803-48041C2 |
GYL16 DARK GRAY,TRIM10,20,30 |
1 | ||
| 58803-48040E1 |
GGL1#,GYL1# 本木目ﾊﾟｯｹｰｼﾞ,MD.BROWN,TRIM0#,2# |
1 | ||
| 58803-48041F0 |
GYL16 NATURAL BROWN,TRIM00,10,20,30,40 |
1 | ||
| 58803-48041E0 |
GYL16 DK.BROWN,TRIM00,40 |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58810-48420A0 |
GYL1# IVORY,TRIM0# |
1 | ||
| 58810-48420C0 |
GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-06020A6 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
2 | ||
| 90467-06020A6 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
2 | ||
| 90467-06020C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 58818A - COVER, CONSOLE BOX, FR | ||||
| 58818-48060C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58818-48020A0 |
GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58818-48060A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-48130E0 |
AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 58821-48100E0 |
AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 58821-48130C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58821-48100C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-48020 |
GGL16,GYL16 |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-48040 |
GGL16,GYL16 |
1 | ||
| 58839-48060 |
GYL16 |
1 | ||
| 58871A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58871-48030 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58871A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58871-48030 |
AGL10,GGL1#,GYL1# |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
| 8715 | ||||

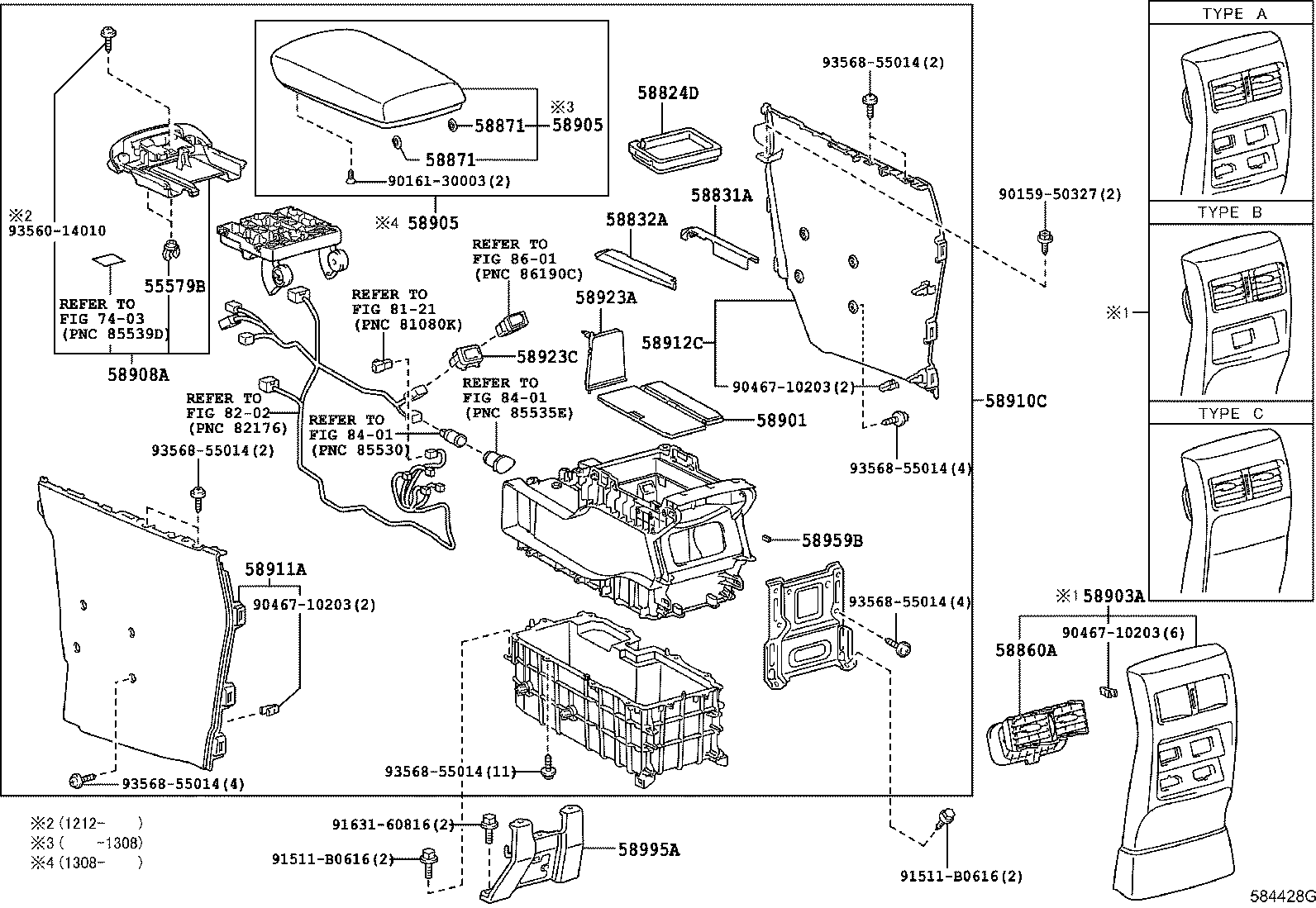

ILLUST NO. 2 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55579B - BAND, GLOVE COMPARTMENT BOX | ||||
| 55579-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58824D - BOX, CONSOLE COIN | ||||
| 58824-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58824-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-48080E0 |
GGL1#,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 58831-48080C0 |
GGL1#,GYL1# BLACK,TRIM1#,2# |
1 | ||
| 58831-48090E0 |
AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 58831-48090C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-48080C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58832-48080E0 |
AGL10,GGL1#,GYL1# DK. BROWN,TRIM0# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48040C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58860-48040A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58860-48040A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58871-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58871-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 58901 - PANEL SUB-ASSY, BOX | ||||
| 58901-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-48070A0 |
GYL1# ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100V),IVORY,TRIM0#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 58903-48080A0 |
GYL1# IVORY,TRIM0#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 58903-48100A0 |
GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58903-48110A0 |
GYL1# IVORY,TRIM0#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 58903-48100C0 |
GYL1# 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK,TRIM1#,2#,3#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58903-48110C0 |
GYL1# BLACK,TRIM1#,2#,3#,4#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-48020A3 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58905-48050A0 |
GYL1# “version L”&ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100V),IVORY,TRIM0# |
1 | ||
| 58905-48070A2 |
GYL16 IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58905-48070C1 |
GYL16 BLACK,TRIM3#,4# |
1 | ||
| 58905-48070C2 |
GYL16 BLACK/GRAY,TRIM2# |
1 | ||
| 58905-48070B3 |
GYL16 LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58864-48050A0 |
AGL10,GGL1#,GYL1# IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58864-48050C0 |
AGL10,GGL10,GYL10,16 BLACK/GRAY,TRIM2# |
1 | ||
| 58864-48050C4 |
GGL15,GYL1# BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58864-48050B0 |
AGL10,GGL1#,GYL1# LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-48020A3 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58905-48050A0 |
GYL1# “version L”&ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100V),IVORY,TRIM0# |
1 | ||
| 58905-48070A2 |
GYL16 IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58905-48070C1 |
GYL16 BLACK,TRIM3#,4# |
1 | ||
| 58905-48070C2 |
GYL16 BLACK/GRAY,TRIM2# |
1 | ||
| 58905-48070B3 |
GYL16 LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58864-48050A0 |
AGL10,GGL1#,GYL1# IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58864-48050C0 |
AGL10,GGL10,GYL10,16 BLACK/GRAY,TRIM2# |
1 | ||
| 58864-48050C4 |
GGL15,GYL1# BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58864-48050B0 |
AGL10,GGL1#,GYL1# LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-48020 |
GGL1#,GYL1# |
1 | ||
| 58908-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-48010A3 |
GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58910-48070A0 |
GGL1#,GYL1# “version L”&ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100V),IVORY,TRIM0# |
1 | ||
| 58910-48020A3 |
GGL1#,GYL1# ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100V),IVORY,TRIM0# |
1 | ||
| 58910-48330A2 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY/IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58910-48340A2 |
GYL16 IVORY/IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58910-48330C3 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58910-48330C5 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 58910-48340C3 |
GYL16 BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58910-48340C6 |
GYL16 BLACK/LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58910-48340C5 |
GYL16 BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 58910-48310A3 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),IVORY/IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58910-48310C7 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK/LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58910-48310C9 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 58910-48310C8 |
GYL16 有り(後席ﾃﾞｨｽﾌﾟﾚｲ),BLACK/BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58910-48360A3 |
GYL1# IVORY/IVORY/DK.BROWN,TRIM0# |
1 | ||
| 58910-48360C7 |
GYL1# BLACK/LT.GRAY/DK.GRAY,TRIM1# |
1 | ||
| 58910-48360C9 |
GYL10,16 BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 58910-48360C8 |
GYL1# BLACK/BLACK/BLACK,TRIM3#,4# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-48050C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58911-48050A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-48120C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58912-48120A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-48110 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58923C - PLATE, BOX, UPPER NO.3 | ||||
| 58924-30160 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-48011 |
AGL10,GGL1#,GYL1# |
5 | ||
| 58959-48010 |
GGL1#,GYL1# |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 58995-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90161-30003 | ||||
| 90467-10203 | ||||
| 91511-B0616 | ||||
| 91631-60816 | ||||
| 93560-14010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8601 | ||||
