GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )

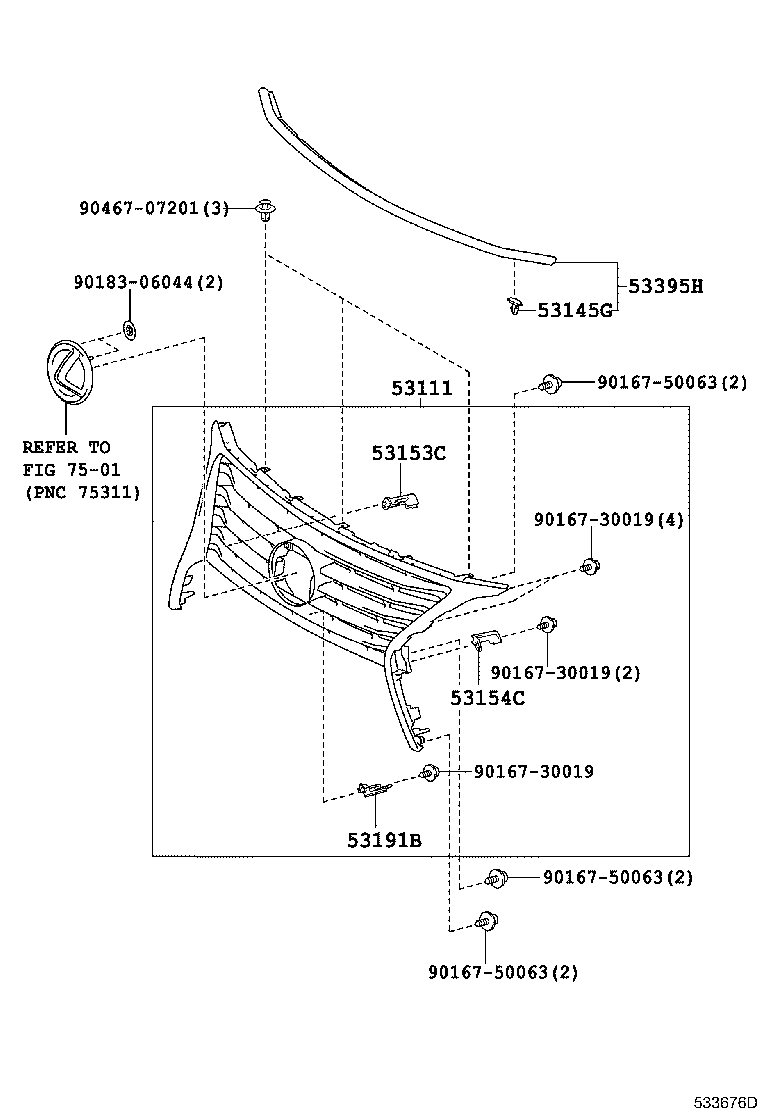

Click highlighted areas on diagram

diagram 53111 53145G 53153C 53154C 53191B 53395H 7501 9016730019 9016730019 9016730019 9016750063 9016750063 9016750063 9018306044 9046707201
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-48900

AGL10,GGL1#,GYL1#

 1
53101-48581

AGL10,GGL1#,GYL1#

ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)

 1
53101-48906

AGL10,GGL1#,GYL1#

ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)

 1
53101-48401

AGL10,GGL1#,GYL1#

 1
53101-48906

GGL1#,GYL1#

ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

AGL10,GGL1#,GYL1#

 16
53145-60030

AGL10,GGL1#,GYL1#

 16
53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-48010

AGL10,GGL1#,GYL1#

 1
53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-48010

AGL10,GGL1#,GYL1#

 1
53191B - RETAINER, RADIATOR GRILEE, UPPER
53191-48010

AGL10,GGL1#,GYL1#

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48040

AGL10,GGL1#,GYL1#

 1
53395-48060

AGL10,GGL1#,GYL1#

 1
Common parts
90167-30019
90167-50063
90183-06044
90467-07201
Linked diagrams
7501
