GYL16W-AWXGK (2012)
Toyota Lexus Rx270/350/450h

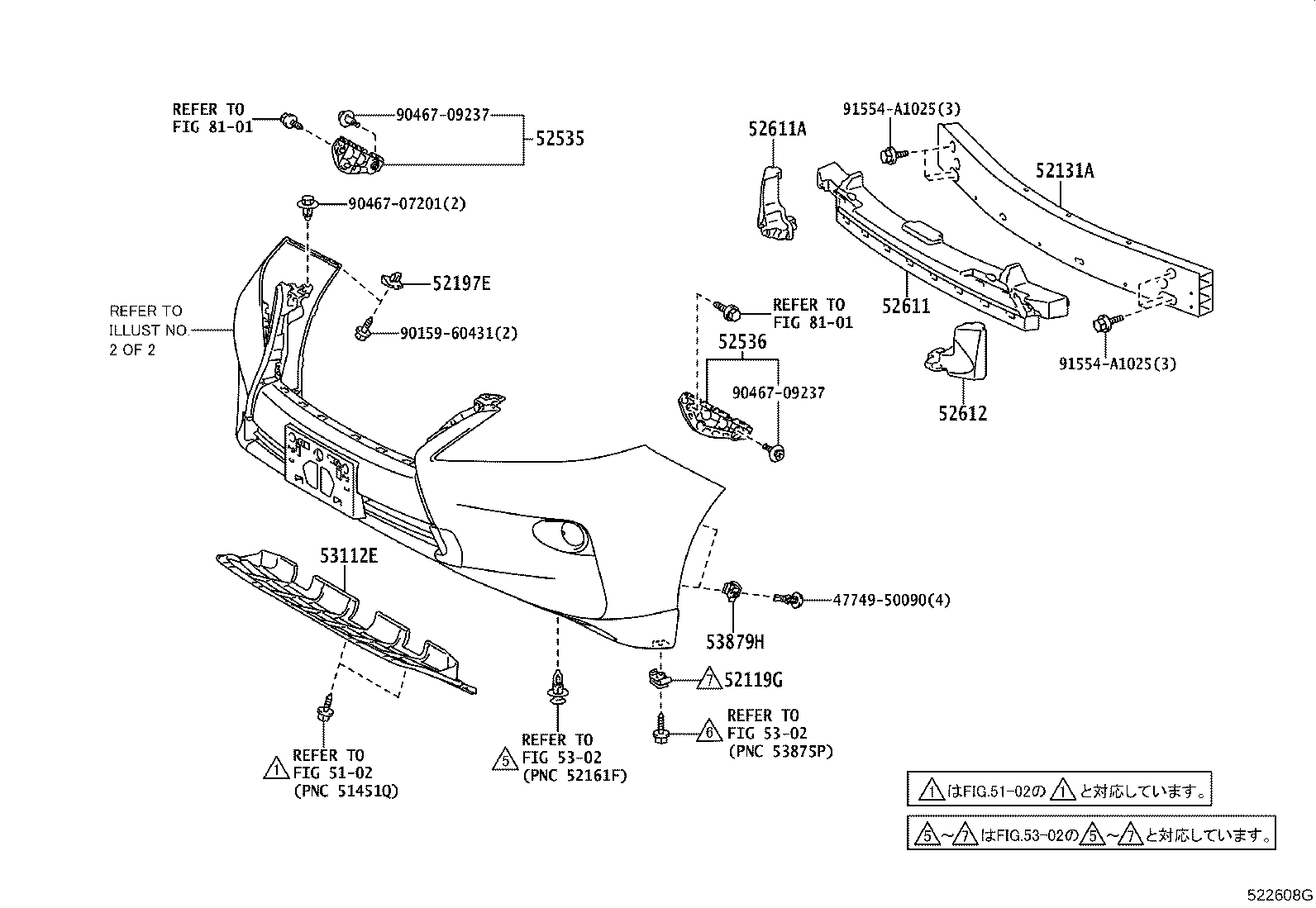

ILLUST NO. 1 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL1#,GYL1# |
2 | ||
| 90467-05114 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48111 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52131-48110 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52197-30040 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48010 |
GGL1#,GYL1# |
1 | ||
| 52535-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48010 |
GGL1#,GYL1# |
1 | ||
| 52536-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48160 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611-48150 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52611-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52613-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52613-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52612-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48120 |
AGL10,GGL1#,GYL1# 塗装不要 |
1 | ||
| 53112-48100 |
AGL10,GGL1#,GYL1# 塗装不要 |
1 | ||
| 53112-48130 |
AGL10,GGL1#,GYL1# 塗装不要,ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53112-48130 |
AGL10,GGL1#,GYL1# 塗装不要,ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
AGL10,GGL1#,GYL1# |
4 | ||
| 53879-50020 |
AGL10,GGL1#,GYL1# |
4 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90159-60431 | ||||
| 90467-07201 | ||||
| 90467-09237 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

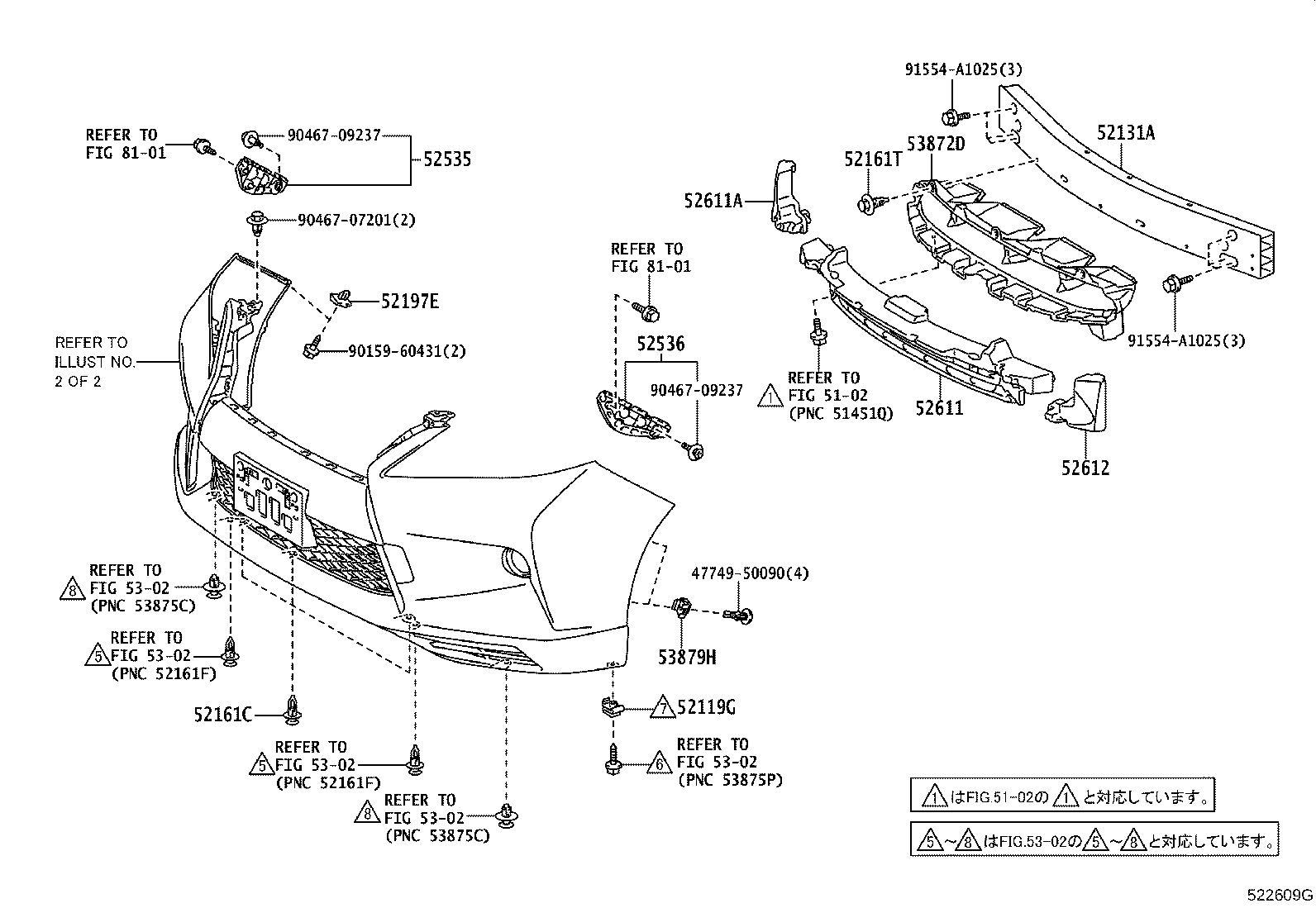

ILLUST NO. 1 OF 2(1203- )
F SPORT OR ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL1#,GYL1# |
2 | ||
| 90467-05114 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48111 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52131-48110 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52161-16010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
3 | ||
| 52161-16010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
3 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-20010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
3 | ||
| 52161-20010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
3 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52197-30040 |
AGL10,GGL1#,GYL1# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48010 |
GGL1#,GYL1# |
1 | ||
| 52535-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48010 |
GGL1#,GYL1# |
1 | ||
| 52536-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48160 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611-48150 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52611-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52613-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52613-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52612-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53872D - DUCT, AIR, LOWER | ||||
| 53872-48010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53872-48010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
AGL10,GGL1#,GYL1# |
4 | ||
| 53879-50020 |
AGL10,GGL1#,GYL1# |
4 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90159-60431 | ||||
| 90467-07201 | ||||
| 90467-09237 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

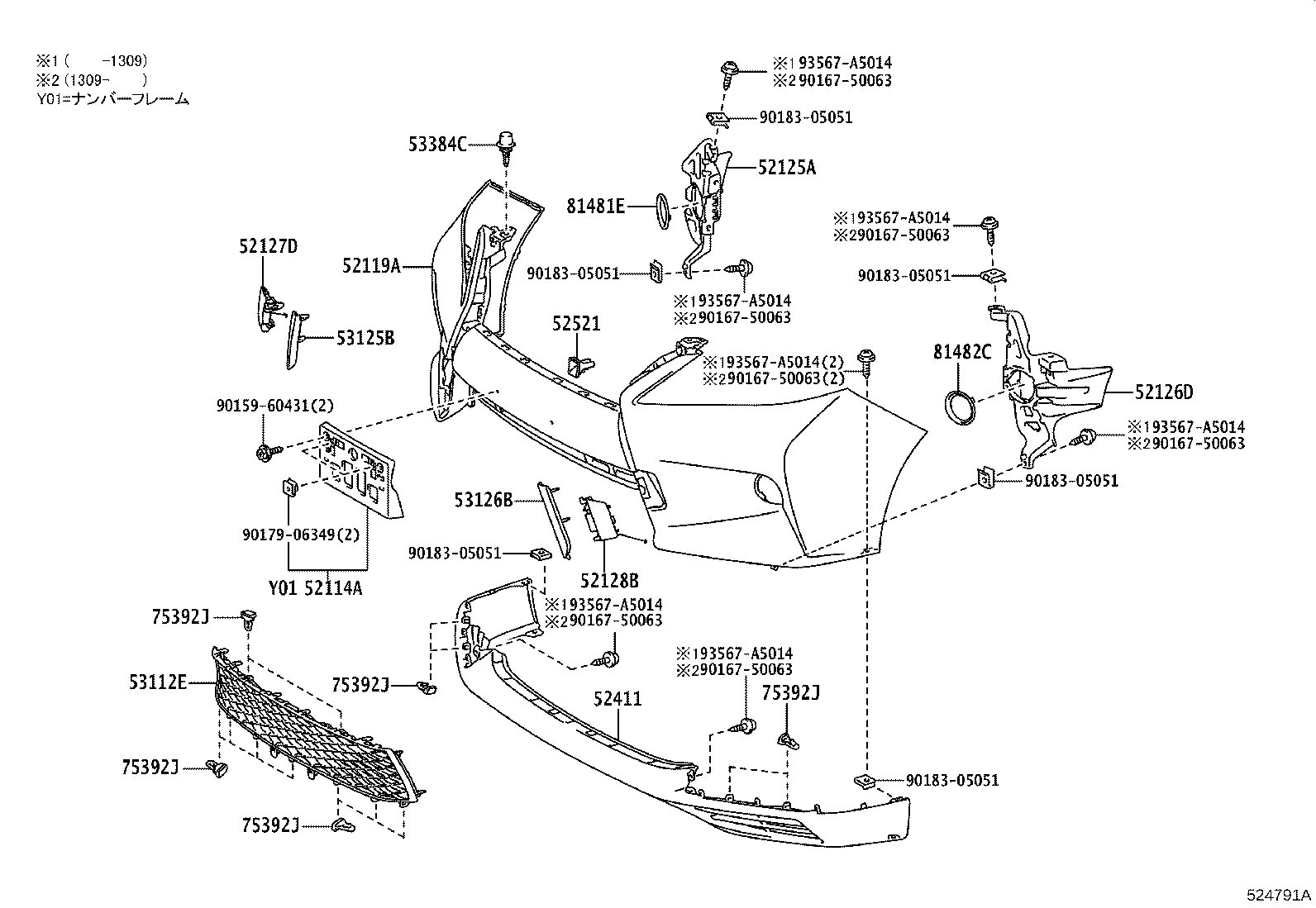

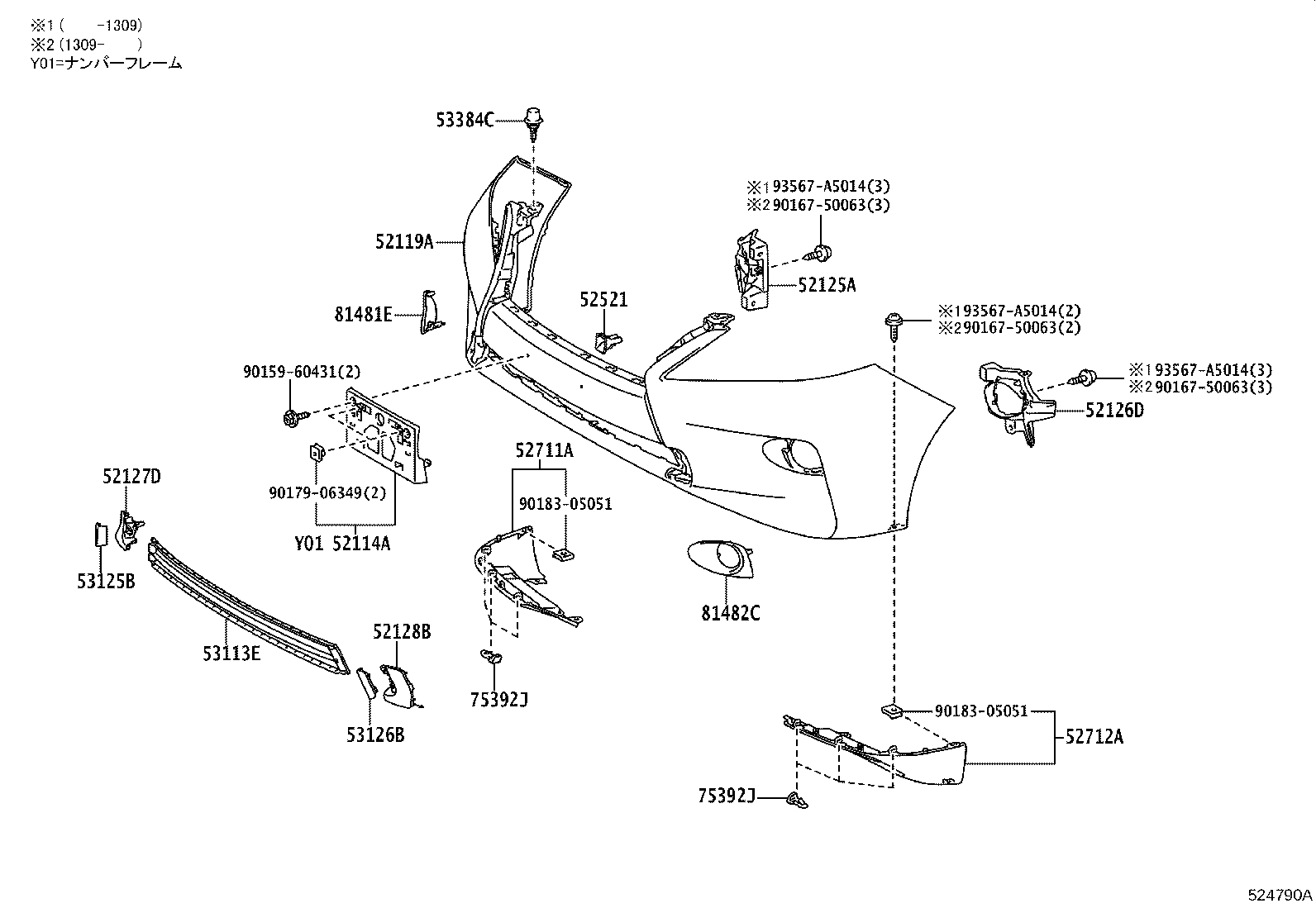

ILLUST NO. 2 OF 2(1203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48200 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52114-48310 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52114-48280 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48470A1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48470B1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48470E0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48660B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48470C1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48470B2 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48660C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52119-48660C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48660B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48660D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52119-48470E1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48470J0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48470D0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48470C0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48470A0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48660A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48660A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52119-48760A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48660E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48760A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48660J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48760C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48760B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48660E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48760D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48760B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48760C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A00A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52119-48A00B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48760E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A00A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48760J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48A00E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A00B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48A00D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52119-48471A0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48760E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48471C0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48A00C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52119-48471C1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A00E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A00C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48471B2 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48471D0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48471E0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48471J0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52119-48661D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52119-48471E1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48471B1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48661C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48761A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48A00J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48661E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48761C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48661B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48661C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52119-48661B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48761C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A01B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48761D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48761B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48761J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48761E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A01A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52119-48761B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48761E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A01C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A01B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48A01E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A01C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52119-48A01J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48A01D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52119-48A01E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52125-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52125-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52125-48081 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-48071 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52126-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48120A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48130A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48120A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52127-48120C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48120B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52127-48130A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52127-48120B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48120D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52127-48130B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48130A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48130B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52127-48130B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48130B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52127-48120J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52127-48130E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52127-48130E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48130J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48130E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48090A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48090C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52128-48090J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52128-48100A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48090E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48090B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48100B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48100A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48100A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52128-48090B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48090D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52128-48100B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48100B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48090C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48090A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52128-48090E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52128-48100B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48100C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52128-48100C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52128-48100C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48100E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48100E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52128-48100D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52128-48100E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48100J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52128-48100E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48100J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52711-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52712-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53125B - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53125-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53125-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53126B - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53126-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53126-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
AGL10,GGL1#,GYL1# |
2 | ||
| 53384-22070 |
AGL10,GGL1#,GYL1# |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48150 |
AGL10,GGL1#,GYL1# |
1 | ||
| 81481-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 81481-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 81482-48150 |
AGL10,GGL1#,GYL1# |
1 | ||
| 81482-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-05051 | ||||
| 93567-A5014 | ||||
ILLUST NO. 2 OF 2(1203- )
F SPORT OR ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48200 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52114-48310 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52114-48280 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48470A1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48470B1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48470E0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48660B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48470C1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48470B2 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48660C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52119-48660C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48660B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48660D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52119-48470E1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48470J0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48470D0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48470C0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48470A0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48660A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48660A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52119-48760A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48660E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48760A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48660J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48760C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48760B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48660E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48760D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48760B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48760C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A00A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52119-48A00B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48760E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A00A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52119-48760J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48A00E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A00B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48A00D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52119-48471A0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48760E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48471C0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48A00C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52119-48471C1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A00E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A00C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48471B2 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48471D0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48471E0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48471J0 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52119-48661D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52119-48471E1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48471B1 |
AGL10,GGL1#,GYL1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48661C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48761A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52119-48A00J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48661E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48661E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48761C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52119-48661B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48661C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52119-48661B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48761C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A01B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48761D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52119-48761B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-48761J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48761E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52119-48A01A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52119-48761B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48761E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A01C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52119-48A01B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-48A01E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52119-48A01C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52119-48A01J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52119-48A01D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52119-48A01E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52125-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52125-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52125-48081 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-48071 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126-48070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 52126-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52126-48060 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48120A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48130A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48120A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52127-48120C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48120B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52127-48130A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52127-48120B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48120D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52127-48130B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48130A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52127-48130B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52127-48130B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52127-48130B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52127-48120C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52127-48120J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52127-48130E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52127-48130E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52127-48130E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48130J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52127-48130C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52127-48130E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52127-48130D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48090A1 |
AGL10,GGL1#,GYL1# QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48090C0 |
AGL10,GGL1#,GYL1# BLACK,212 |
1 | ||
| 52128-48090J0 |
AGL10,GGL1#,GYL1# LAPIS LAZULI MC.,8V3 |
1 | ||
| 52128-48100A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48090E0 |
AGL10,GGL1#,GYL1# SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48090B1 |
AGL10,GGL1#,GYL1# MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48100B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48100A1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),QUARTZ WHITE CS.,078 |
1 | ||
| 52128-48100A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52128-48090B2 |
AGL10,GGL1#,GYL1# PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48090D0 |
AGL10,GGL1#,GYL1# GARNET RED MC.,3S0 |
1 | ||
| 52128-48100B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48100B1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52128-48090C1 |
AGL10,GGL1#,GYL1# STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48090A0 |
AGL10,GGL1#,GYL1# WHITE PEARL CS.,077 |
1 | ||
| 52128-48090E1 |
AGL10,GGL1#,GYL1# FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100A0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),WHITE PEARL CS.,077 |
1 | ||
| 52128-48100B2 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52128-48100C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),BLACK,212 |
1 | ||
| 52128-48100C0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52128-48100C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48100E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48100E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GARNET RED MC.,3S0 |
1 | ||
| 52128-48100D0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),GARNET RED MC.,3S0 |
1 | ||
| 52128-48100E0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),SLEEK ECRU ME.,4U7 |
1 | ||
| 52128-48100J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAPIS LAZULI MC.,8V3 |
1 | ||
| 52128-48100E1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),FIRE AGATE M.M.,4V3 |
1 | ||
| 52128-48100C1 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52128-48100J0 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ),LAPIS LAZULI MC.,8V3 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-48010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52411-48010 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48120 |
AGL10,GGL1#,GYL1# 塗装不要 |
1 | ||
| 53112-48100 |
AGL10,GGL1#,GYL1# 塗装不要 |
1 | ||
| 53112-48130 |
AGL10,GGL1#,GYL1# 塗装不要,ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53112-48130 |
AGL10,GGL1#,GYL1# 塗装不要,ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53125B - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53125-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53125-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53126B - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 53126-48100 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53126-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
AGL10,GGL1#,GYL1# |
2 | ||
| 53384-22070 |
AGL10,GGL1#,GYL1# |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
13 | ||
| 75392-35220 |
AGL10,GGL1#,GYL1# |
6 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48150 |
AGL10,GGL1#,GYL1# |
1 | ||
| 81481-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 81481-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ) |
1 | ||
| 81482-48150 |
AGL10,GGL1#,GYL1# |
1 | ||
| 81482-48170 |
AGL10,GGL1#,GYL1# ｴｱﾛﾊﾞﾝﾊﾟ(ﾌﾛﾝﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-05051 | ||||
| 93567-A5014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
