GYL16W-AWXGK (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1301)GGL10 ; (0903- )GYL1#

Click highlighted areas on diagram

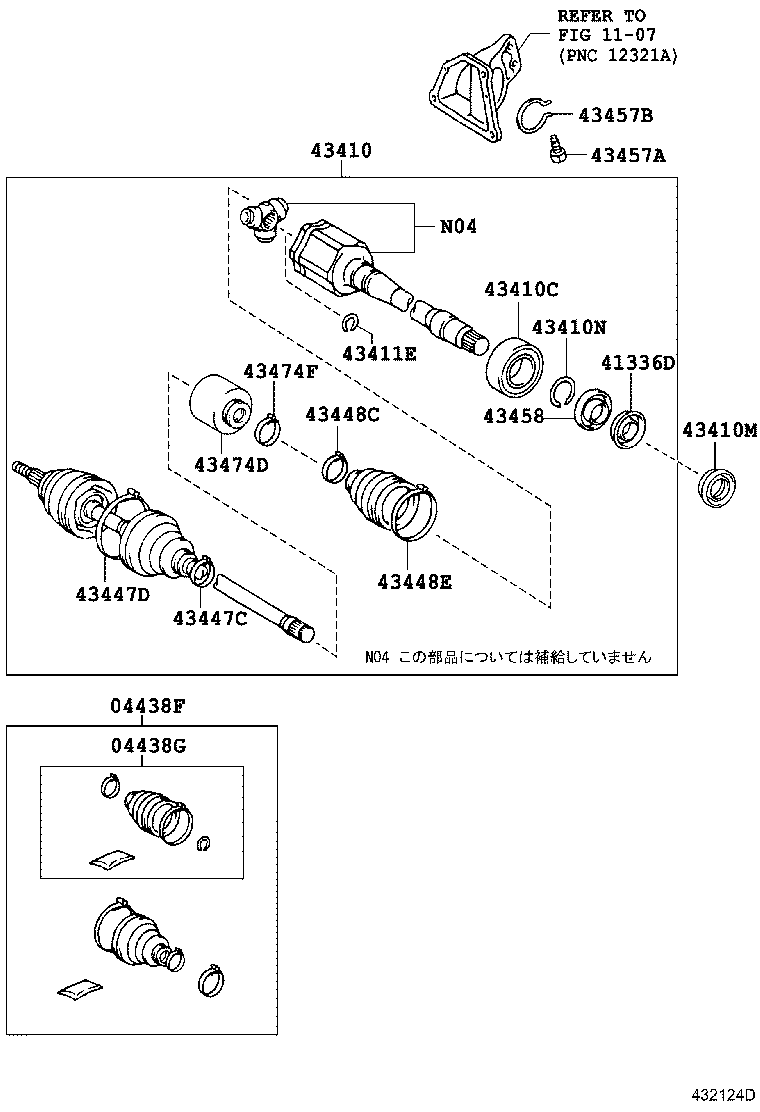

RH

diagram 04438F 04438G 1107 41336D 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457A 43457B 43458 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04428-0E060

GGL1#,GYL1#

 1
04427-0W110

GYL1#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-08130

GGL1#,GYL1#

 1
04438-08130

GGL10,GYL1#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-06020

GGL10,GYL1#

 1
41336-06020

GGL10,GYL1#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0E040

GGL15,16

 1
43410-0W350

GYL1#

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

GGL15,16

 1
90080-36133

GGL10,GYL1#

 1
90080-36133

GGL10,GYL1#

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40029

AGL10,GGL10,GYL1#

 1
90311-40039

GYL1#

 1
90311-40029

GYL1#

 1
90316-34001

GGL15,16

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52013

GGL10,GYL1#

 1
90080-52054

GGL15,16

 1
90080-52013

GGL10,GYL1#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-08040

GGL1#,GYL1#

 1
43425-08040

GGL1#,GYL1#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030

GGL1#,GYL1#

 1
42345-04030

GGL1#,GYL1#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06250

GGL1#,GYL1#

 1
42345-06250

GGL1#,GYL1#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-08070

GGL1#,GYL1#

 1
42345-08070

GGL1#,GYL1#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06240

GGL1#,GYL1#

 1
42345-06240

GGL1#,GYL1#

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

AGL10,GGL10,GYL1#

*10−1.25PX19.8−8.3

 1
90119-10461

AGL10,GGL10,GYL1#

*10−1.25PX19.8−8.3

 1
90901-19060

GGL15,16

*10−1.25PX28.5−14.8

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

AGL10,GGL10,GYL1#

 1
90521-75002

GGL15,16

 1
90521-78002

AGL10,GGL10,GYL1#

 1
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-06020

GGL10,GYL1#

 1
43458-06020

GGL10,GYL1#

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0W030

GGL15,16

 1
43474-0W030

GGL10,GYL1#

 1
43474-0W080

GYL1#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06100

GGL10,GYL1#

 1
42345-06100

GGL15,16

 1
42345-0W070

GYL1#

 1
Linked diagrams
1107

(0812- )GGL1# ; (0903-1301)GYL1#

Click highlighted areas on diagram

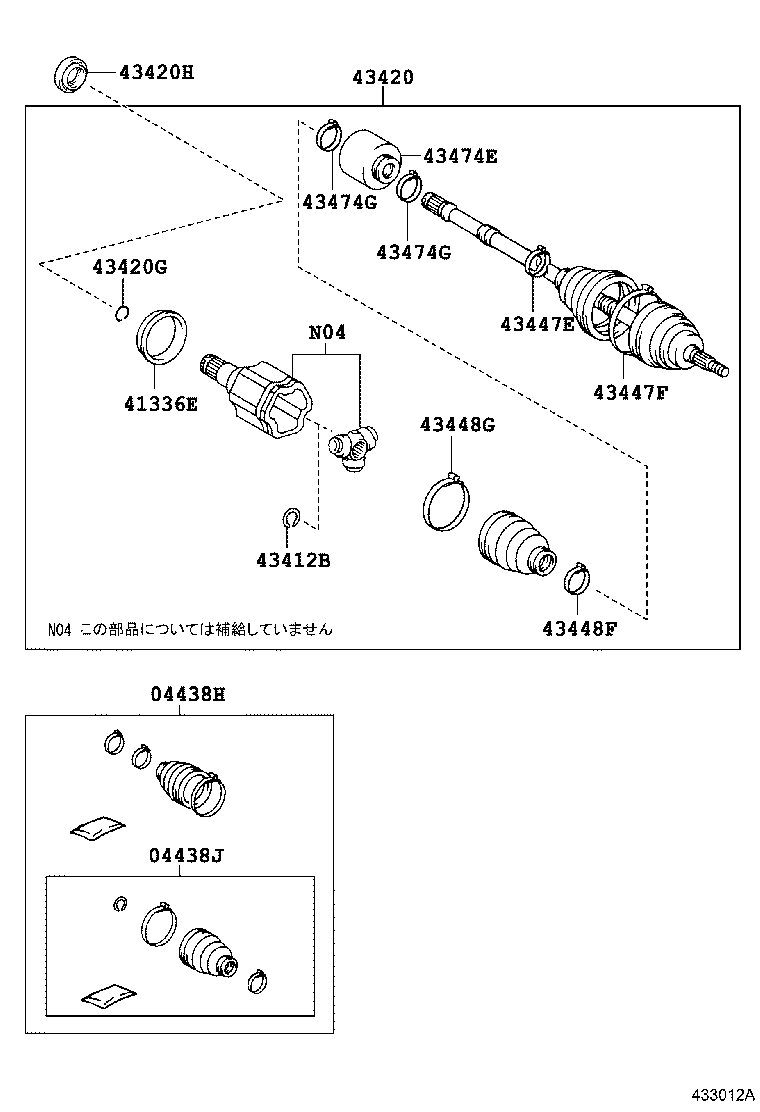

LH

diagram 04438H 04438J 41336E 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-0E060

GGL1#,GYL1#

 1
04428-0W060

GYL1#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-08130

GGL1#,GYL1#

 1
04438-08130

GGL1#,GYL1#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-07010

GYL1#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040

GGL1#,GYL1#

 1
43425-08040

GGL1#,GYL1#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0W280

GYL1#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52017

GGL1#,GYL1#

 1
90080-52017

GGL1#,GYL1#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50053

GYL1#

 1
90311-50031

GYL1#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030

GGL1#,GYL1#

 1
42345-04030

GGL1#,GYL1#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06250

GGL1#,GYL1#

 1
42345-06250

GGL1#,GYL1#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-08070

GGL1#,GYL1#

 1
42345-08070

GGL1#,GYL1#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06240

GGL1#,GYL1#

 1
42345-06240

GGL1#,GYL1#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-0W040

GYL1#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100

GGL1#,GYL1#

 1
42345-06100

GYL1#

 1

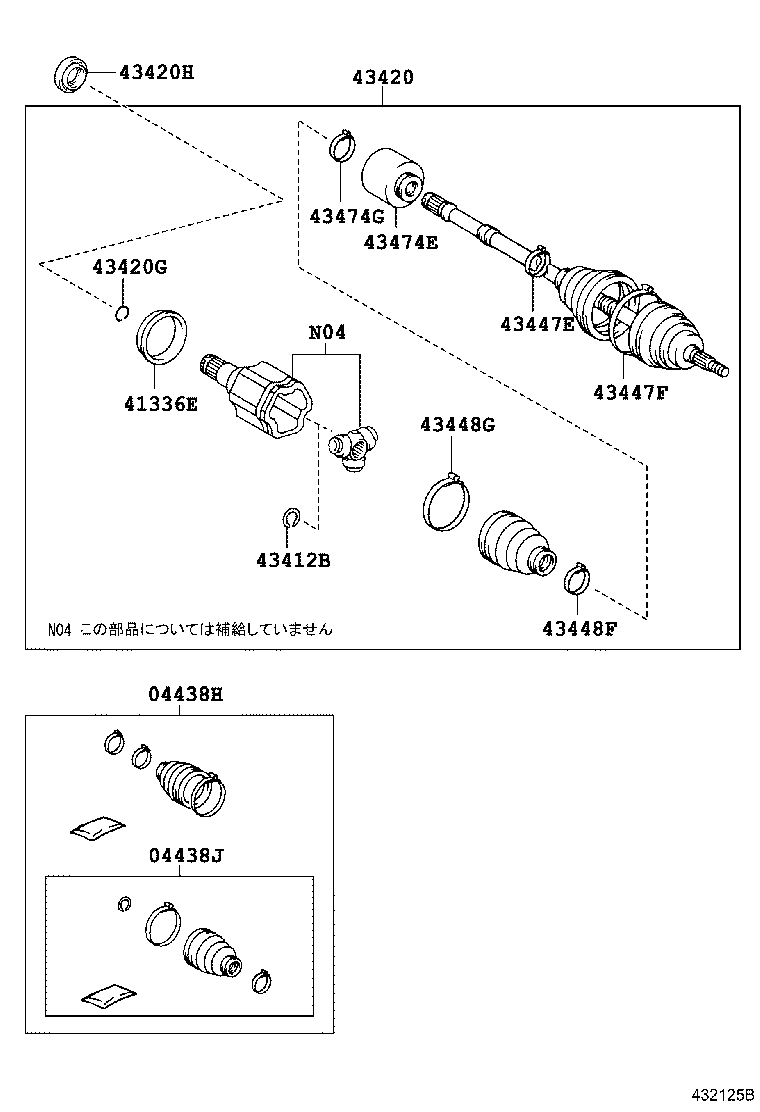

(1301- )GYL1#

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-0E060

GGL1#,GYL1#

 1
04428-0W060

GYL1#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-08130

GGL1#,GYL1#

 1
04438-08130

GGL1#,GYL1#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-07010

GYL1#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040

GGL1#,GYL1#

 1
43425-08040

GGL1#,GYL1#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0W280

GYL1#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52017

GGL1#,GYL1#

 1
90080-52017

GGL1#,GYL1#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50053

GYL1#

 1
90311-50031

GYL1#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030

GGL1#,GYL1#

 1
42345-04030

GGL1#,GYL1#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06250

GGL1#,GYL1#

 1
42345-06250

GGL1#,GYL1#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-08070

GGL1#,GYL1#

 1
42345-08070

GGL1#,GYL1#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06240

GGL1#,GYL1#

 1
42345-06240

GGL1#,GYL1#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-0W040

GYL1#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100

GGL1#,GYL1#

 1
42345-06100

GYL1#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100

GGL1#,GYL1#

 1
42345-06100

GYL1#

 1
