GYL15W-AWXGK (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )GYL1#

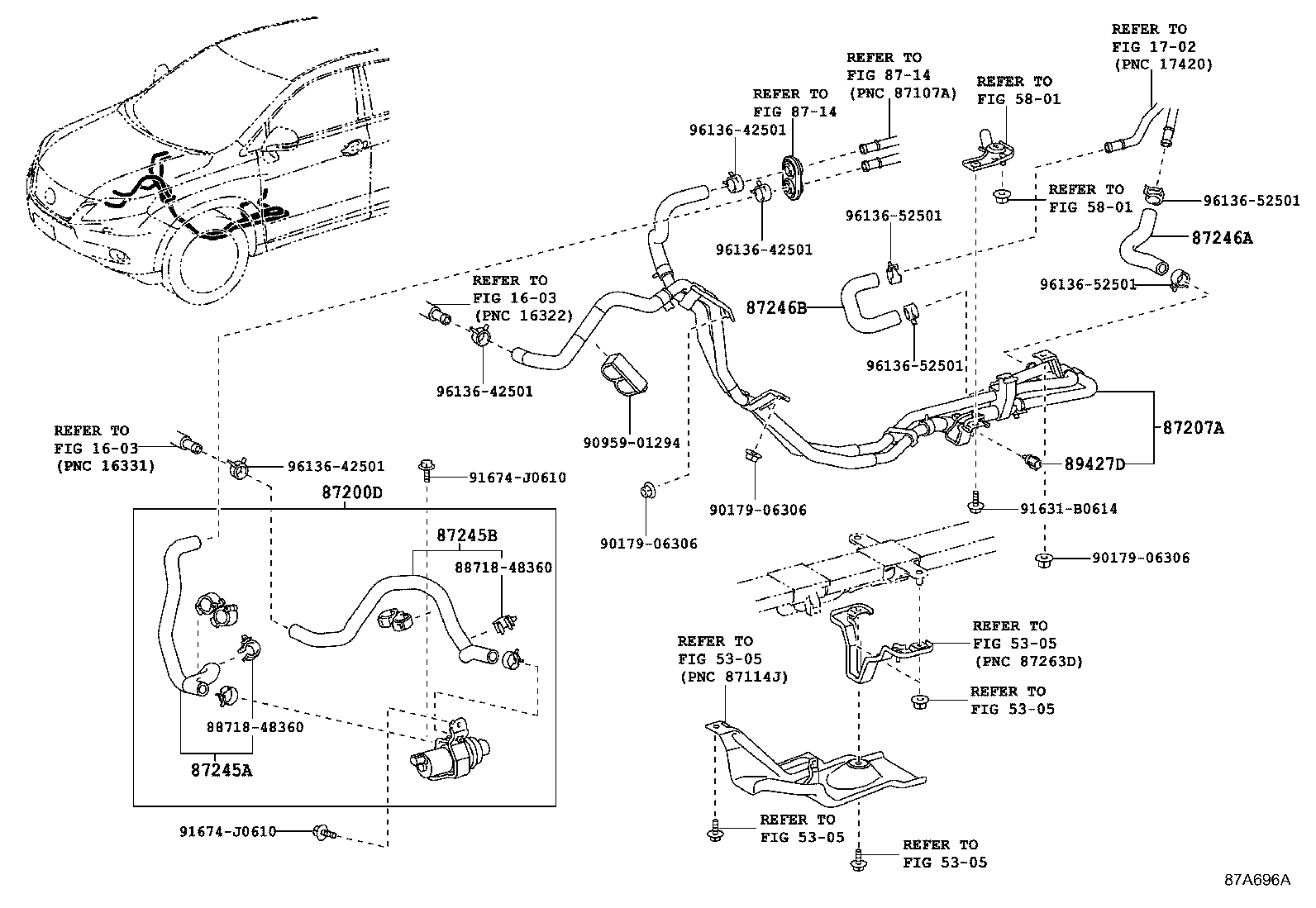

Click highlighted areas on diagram

diagram 1603 1603 1702 5305 5305 5305 5305 5305 5801 5801 8714 8714 87200D 87207A 87245A 87245B 87246A 87246B 8871848360 8871848360 89427D 9017906306 9017906306 9017906306 9095901294 91631B0614 91674J0610 91674J0610 9613642501 9613642501 9613642501 9613642501 9613652501 9613652501 9613652501 9613652501
Part # Description Qty Price
87200D - ACCESSORY ASSY, HEATER
87200-48080

GYL1#

 1
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-48050

GYL1#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-48C70

GYL1#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-48C80

GYL1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-48C40

GYL1#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-48C50

GYL1#

 1
89427D - SWITCH, TEMPERATURE
89428-12170

GYL1#

 1
Common parts
88718-48360
90179-06306
90959-01294
91631-B0614
91674-J0610
96136-42501
96136-52501
