GYL15W-AWXGK (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1203)GYL1#

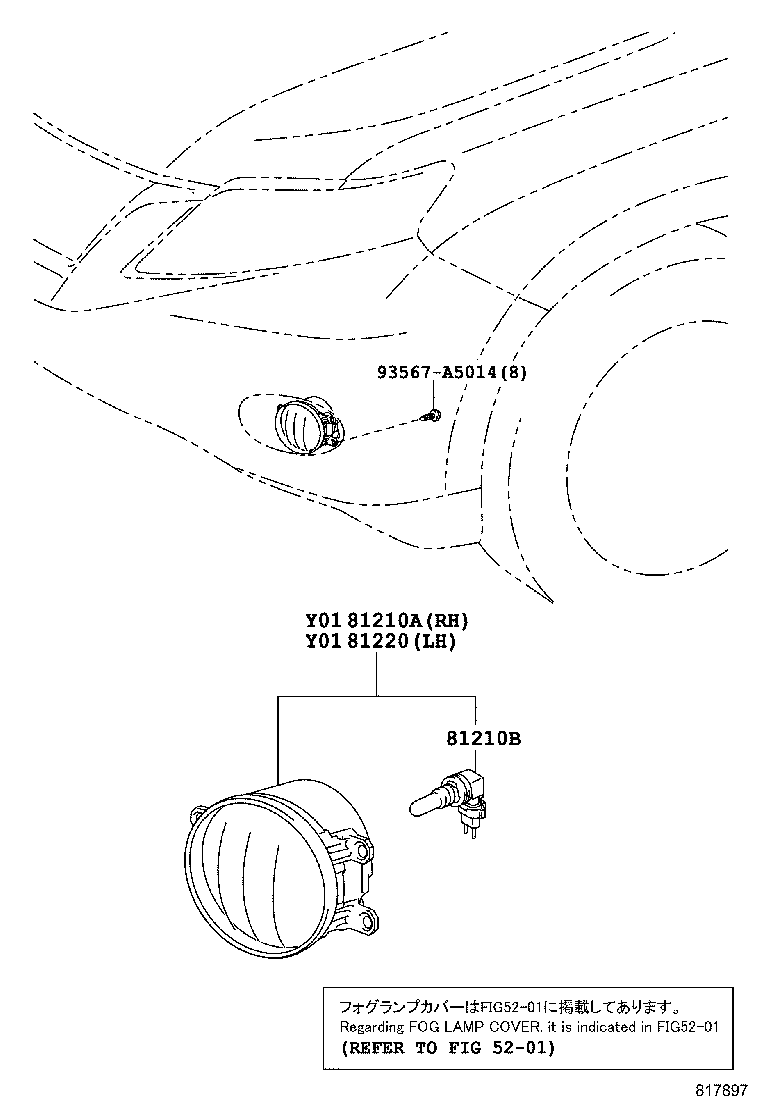

Click highlighted areas on diagram

diagram 81210A 81210B 81220 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D042

GGL1#,GYL1#

 1
81210-0W080

AGL10,GGL1#,GYL1#

 1
81210-0D042

AGL10,GGL1#,GYL1#

 1
81210-0D041

GGL1#,GYL1#

 1
81210B - BULB, FOG LAMP
90981-1307579

AGL10,GGL1#,GYL1#

12V 55W,ﾊﾛｹﾞﾝ,PHILIPS

 2
90981-1308179

AGL10,GGL1#,GYL1#

12V 55W,ﾊﾛｹﾞﾝ,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-0W070

AGL10,GGL1#,GYL1#

 1
81220-0D042

AGL10,GGL1#,GYL1#

 1
81220-0D041

GGL1#,GYL1#

 1
81220-0D042

GGL1#,GYL1#

 1
Common parts
93567-A5014
