GYL15W-AWXGK (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0903- )GYL1#

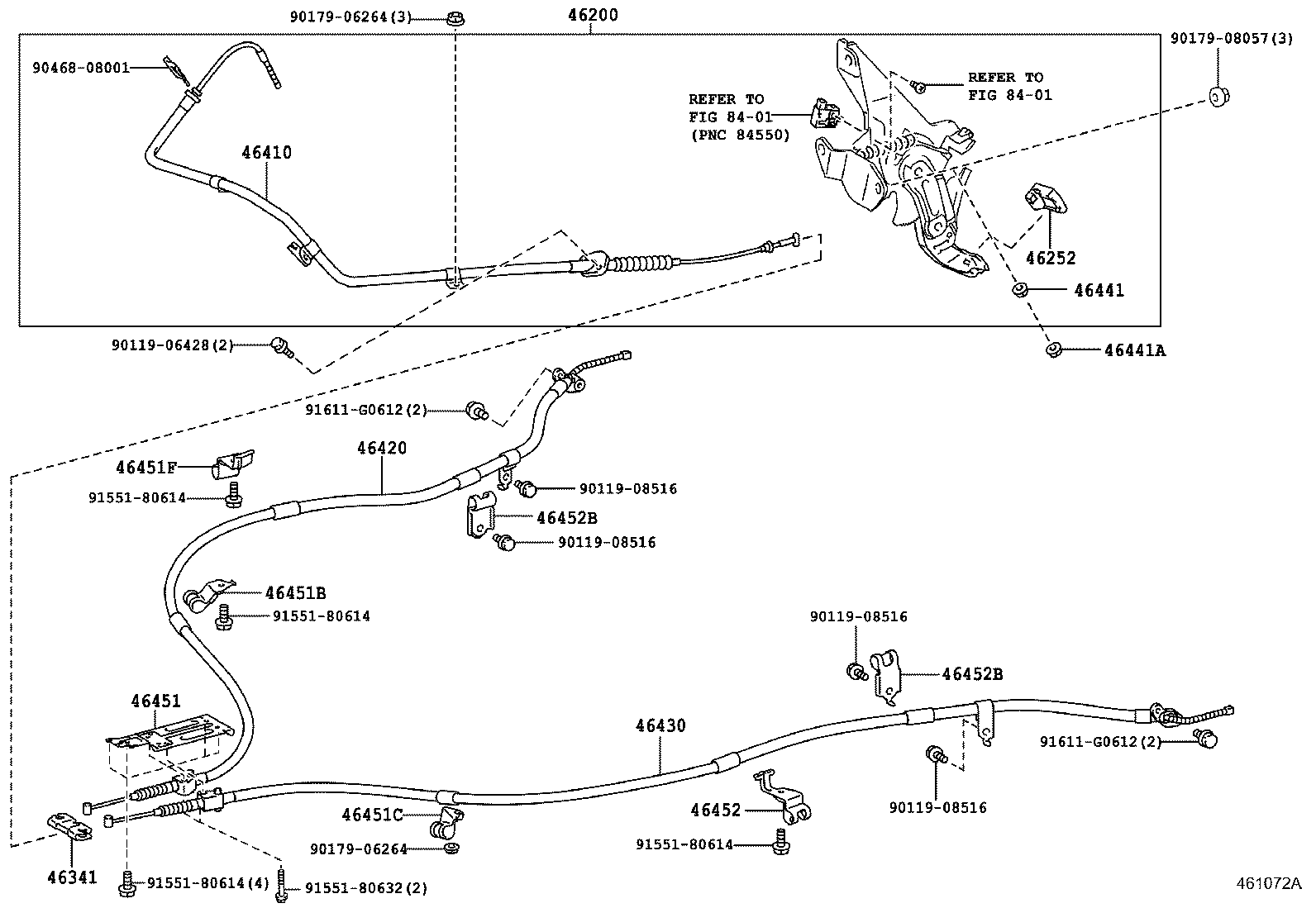

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46430 46441 46441A 46451 46451B 46451C 46451F 46452 46452B 46452B 8401 8401 9011906428 9011908516 9011908516 9011908516 9011908516 9017906264 9017906264 9017908057 9046808001 9155180614 9155180614 9155180614 9155180614 9155180632 91611G0612 91611G0612
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-48160

GYL1#

 1
46252 - PAD, PARKING PEDAL
46252-22010

AGL10,GGL1#,GYL1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-48010

AGL10,GGL1#,GYL1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-48160

GYL1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-48160

GYL1#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-48160

GYL1#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

AGL10,GGL1#,GYL1#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
94151-80600

AGL10,GGL1#,GYL1#

 1
46451 - BRACKET, CABLE SUPPORT
46451-48180

GYL1#

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-48260

GYL1#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-48250

GYL1#

 1
46451F - BRACKET, CABLE SUPPORT
46451-48150

AGL10,GGL1#,GYL1#

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-48160

AGL10,GGL1#,GYL1#

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-48170

AGL10,GGL1#,GYL1#

 2
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-48170

AGL10,GGL1#,GYL1#

 2
Common parts
90119-06428
90119-08516
90179-06264
90179-08057
90468-08001
91551-80614
91551-80632
91611-G0612
Linked diagrams
8401
