GGL16W-AWTGK (2008)
Toyota Lexus Rx270/350/450h

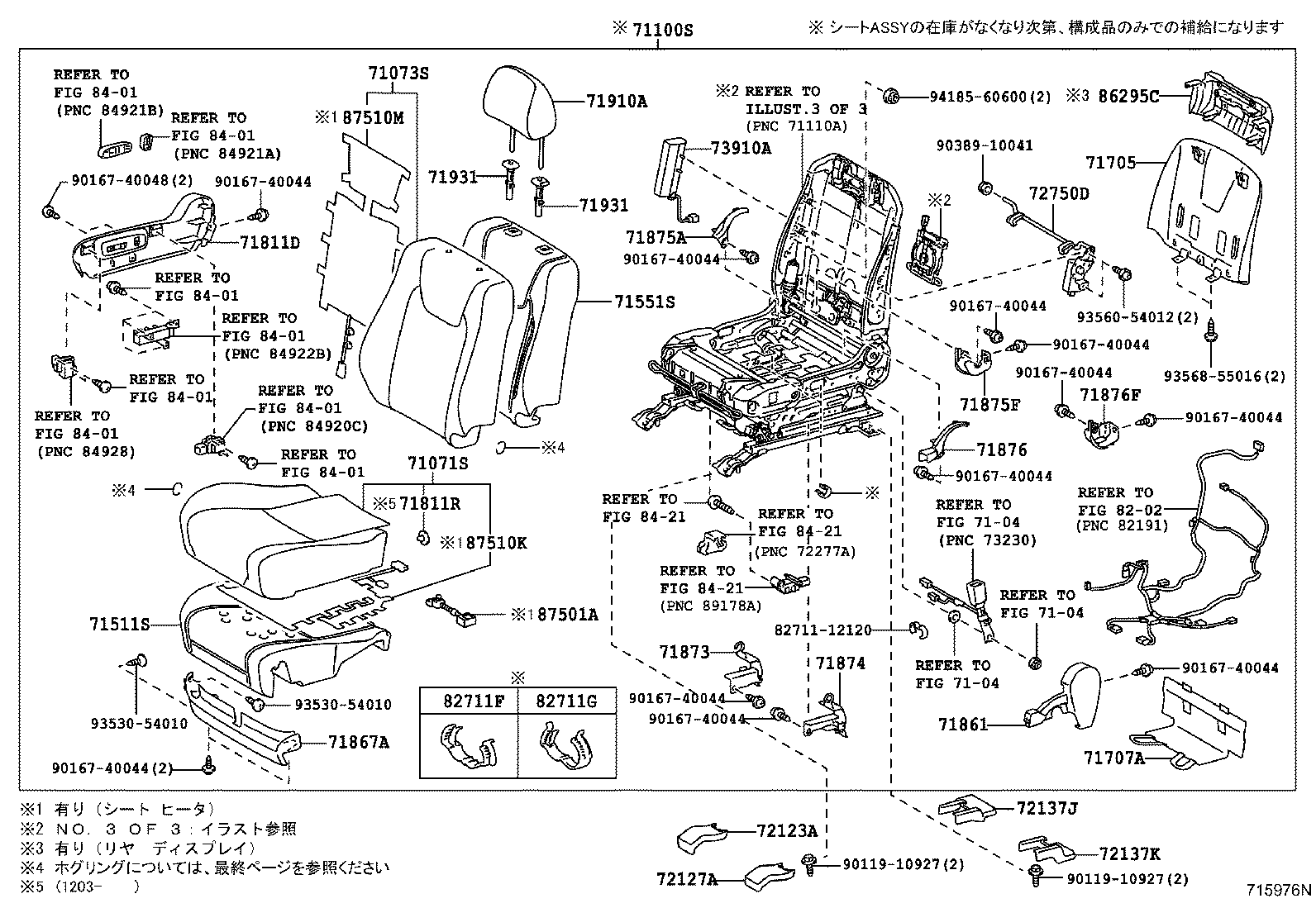

ILLUST NO. 1 OF 3(0812- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48570A1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71071-48620A2 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71071-48570B1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71071-48570C1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71071-48620B1 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71071-48650C2 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71071-48620C1 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71071-48650B2 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-48650A2 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71071-48620B3 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71071-48620C2 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71071-48620A3 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71071-48800C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71071-48800B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-48800A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48740C1 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71073-48740B1 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71073-48740A2 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71073-48750A1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71073-48711B2 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-48750B1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-48711A2 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71073-48750C1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71073-48711C2 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71073-48741C2 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71073-48820A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71073-48741B3 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71073-48741A3 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71073-48820B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-48820C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-48J30A5 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71100-48J30B6 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71100-48K20A6 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71100-48K20B6 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71100-48J30C5 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71100-48K20C5 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71100-48L00B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71100-48L00A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71100-48L00C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71100-48K21B0 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71100-48K21A0 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71100-48K21C0 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71100-48L40A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71100-48L40B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71100-48L40C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48251 |
GGL16,GYL16 “version L” |
1 | ||
| 71511-48250 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71511-48300 |
GGL16,GYL16 “version L” |
1 | ||
| 71511-48230 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71511-48250 |
GGL16,GYL16 “version L” |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48150 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71551-48190 |
GGL16,GYL16 “version L” |
1 | ||
| 71551-48150 |
GGL16,GYL16 “version L” |
1 | ||
| 71551-48151 |
GGL16,GYL16 “version L” |
1 | ||
| 71551-48130 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-48130A0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71705-48110B0 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71705-48130C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71705-48130C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71705-48130A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71705-48110A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71705-48130B0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71705-48110C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71705-48130B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48020B3 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71707-48020C1 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71707-48020A2 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48160B1 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71811-48160A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71811-48170B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71811-48170C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71811-48170A0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71811-48170B0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71811-48160C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71811-48170A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71811-48170C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33070A1 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71861-33070C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71861-33070B2 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-48060B0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71867-48060A0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71867-48040B1 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71867-48060C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71867-48060A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71867-48060B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71867-48060C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71867-48040C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71867-48040A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48120 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-12040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030A2 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71875-58030B3 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71875-58030C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150A3 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71875-60150B7 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71875-60150C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48500A0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
2 | ||
| 71910-48520A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
2 | ||
| 71910-48520B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
2 | ||
| 71910-48500C0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
2 | ||
| 71910-48520C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
2 | ||
| 71910-48500B0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
2 | ||
| 71910-48490A1 |
GGL16,GYL16 IVORY,TRIM0# |
2 | ||
| 71910-48470B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-48470C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
2 | ||
| 71910-48470A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
2 | ||
| 71910-48490B0 |
GGL16,GYL16 LT.GRAY,TRIM1# |
2 | ||
| 71910-48490C0 |
GGL16,GYL16 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030A3 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-52030B5 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020B2 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-52030C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020A6 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030A3 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-52030B5 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020B2 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-52030C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020A6 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-48120B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72123-48120A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72123-48120C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-48060C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72123-48060A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72123-48060B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72128-48070B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72128-48070C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72128-48070A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72127-48060C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72127-48060B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72127-48060A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
AGL10,GGL1#,GYL1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
GGL16,GYL16 “version L” |
2 | ||
| 82711-2B660 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
2 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-35060 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
2 | ||
| 82711-35060 |
GGL16,GYL16 “version L” |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60010 |
GGL16,GYL16 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-48110 |
GGL16 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-48030 |
GGL16,GYL16 |
1 | ||
| 87530-48031 |
GGL16,GYL16 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||

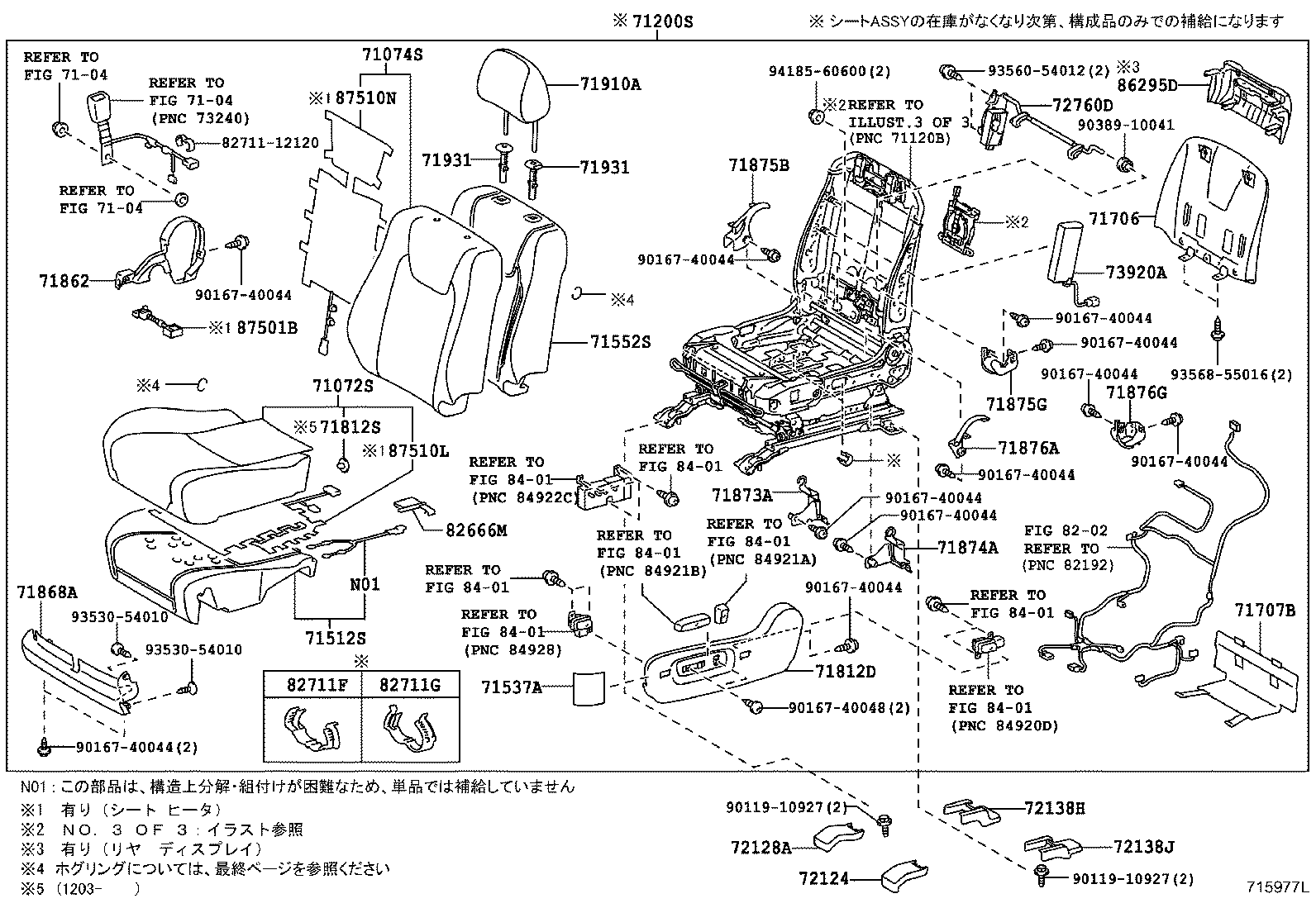

ILLUST NO. 2 OF 3(0812- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48590C1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71072-48590A1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71072-48590B1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71072-48610B1 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71072-48610C1 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71072-48610A2 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71072-48630C2 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71072-48630B2 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-48630A2 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71072-48610A3 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71072-48610C2 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71072-48650A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71072-48650B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-48650C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71072-48610B3 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48730B1 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71074-48740B1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-48740C1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71074-48730C1 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71074-48740A1 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71074-48730A2 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71074-48791A2 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71074-48791B2 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-48731A3 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71074-48731B3 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71074-48791C2 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71074-48A50B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-48A50A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71074-48731C2 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71074-48A50C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-48K40A6 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71200-48L10C5 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71200-48K40B6 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71200-48L10B6 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71200-48K40C5 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71200-48L10A5 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71200-48N70A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71200-48N70B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71200-48N70C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71200-48K41B0 |
GGL16,GYL16 LT.GRAY,TRIM1# |
1 | ||
| 71200-48L50C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71200-48K41C0 |
GGL16,GYL16 BLACK,TRIM2# |
1 | ||
| 71200-48L50B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71200-48K41A0 |
GGL16,GYL16 IVORY,TRIM0# |
1 | ||
| 71200-48L50A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-48021 |
GGL16,GYL16 “version L” |
1 | ||
| 71502-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71502-48020 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71502-48020 |
GGL16,GYL16 “version L” |
1 | ||
| 71502-48050 |
GGL16,GYL16 “version L” |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48140 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71552-48141 |
GGL16,GYL16 “version L” |
1 | ||
| 71552-48120 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71552-48140 |
GGL16,GYL16 “version L” |
1 | ||
| 71552-48180 |
GGL16,GYL16 “version L” |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-48070C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71706-48070C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71706-48060B0 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71706-48070B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71706-48070A0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71706-48060A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71706-48070B0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71706-48060C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71706-48070A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48020C1 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71707-48020B3 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71707-48020A2 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48140C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
1 | ||
| 71812-48140A0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
1 | ||
| 71812-48130A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71812-48140B1 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
1 | ||
| 71812-48140A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
1 | ||
| 71812-48130B1 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71812-48140B1 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
1 | ||
| 71812-48140C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
1 | ||
| 71812-48130C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33050B4 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71862-33050A2 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71862-33050C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-48040C0 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK |
1 | ||
| 71868-48040C0 |
GGL16,GYL16 “version L”,BLACK |
1 | ||
| 71868-48030C0 |
AGL10,GGL1#,GYL1# BLACK |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-12040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48120 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71876-60170B9 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71876-60170A4 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B3 |
AGL10,GGL1#,GYL1# LT.GRAY,TRIM1# |
1 | ||
| 71876-60150C0 |
AGL10,GGL1#,GYL1# BLACK,TRIM2# |
1 | ||
| 71876-60150A3 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48500A0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),IVORY,TRIM0# |
2 | ||
| 71910-48520A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
2 | ||
| 71910-48520B0 |
GGL16,GYL16 “version L”,LT.GRAY,TRIM1# |
2 | ||
| 71910-48500C0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),BLACK,TRIM2# |
2 | ||
| 71910-48520C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
2 | ||
| 71910-48500B0 |
GGL1#,GYL1# “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ),LT.GRAY,TRIM1# |
2 | ||
| 71910-48490A1 |
GGL16,GYL16 IVORY,TRIM0# |
2 | ||
| 71910-48470B0 |
GGL16,GYL16 “version L”,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-48470C0 |
GGL16,GYL16 “version L”,BLACK,TRIM2# |
2 | ||
| 71910-48470A0 |
GGL16,GYL16 “version L”,IVORY,TRIM0# |
2 | ||
| 71910-48490B0 |
GGL16,GYL16 LT.GRAY,TRIM1# |
2 | ||
| 71910-48490C0 |
GGL16,GYL16 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030A3 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-52030B5 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020B2 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-52030C0 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020A6 |
AGL10,GGL1#,GYL1# ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48110A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72124-48110B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72124-48110C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72124-48100C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72124-48100A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72124-48100B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72138-48110B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72138-48110A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72138-48110C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-48160A0 |
AGL10,GGL1#,GYL1# IVORY,TRIM0# |
1 | ||
| 72137-48160C0 |
AGL10,GGL1# BLACK,TRIM2# |
1 | ||
| 72137-48160B0 |
AGL10,GGL1# LT.GRAY,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30170 |
AGL10,GGL1#,GYL1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-33270 |
AGL10,GGL1#,GYL1# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
GGL16,GYL16 “version L” |
2 | ||
| 82711-2B660 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
2 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-35060 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
2 | ||
| 82711-35060 |
GGL16,GYL16 “version L” |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60010 |
GGL16,GYL16 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-48110 |
GGL16 |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-48030 |
GGL16,GYL16 |
1 | ||
| 87530-48031 |
GGL16,GYL16 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||

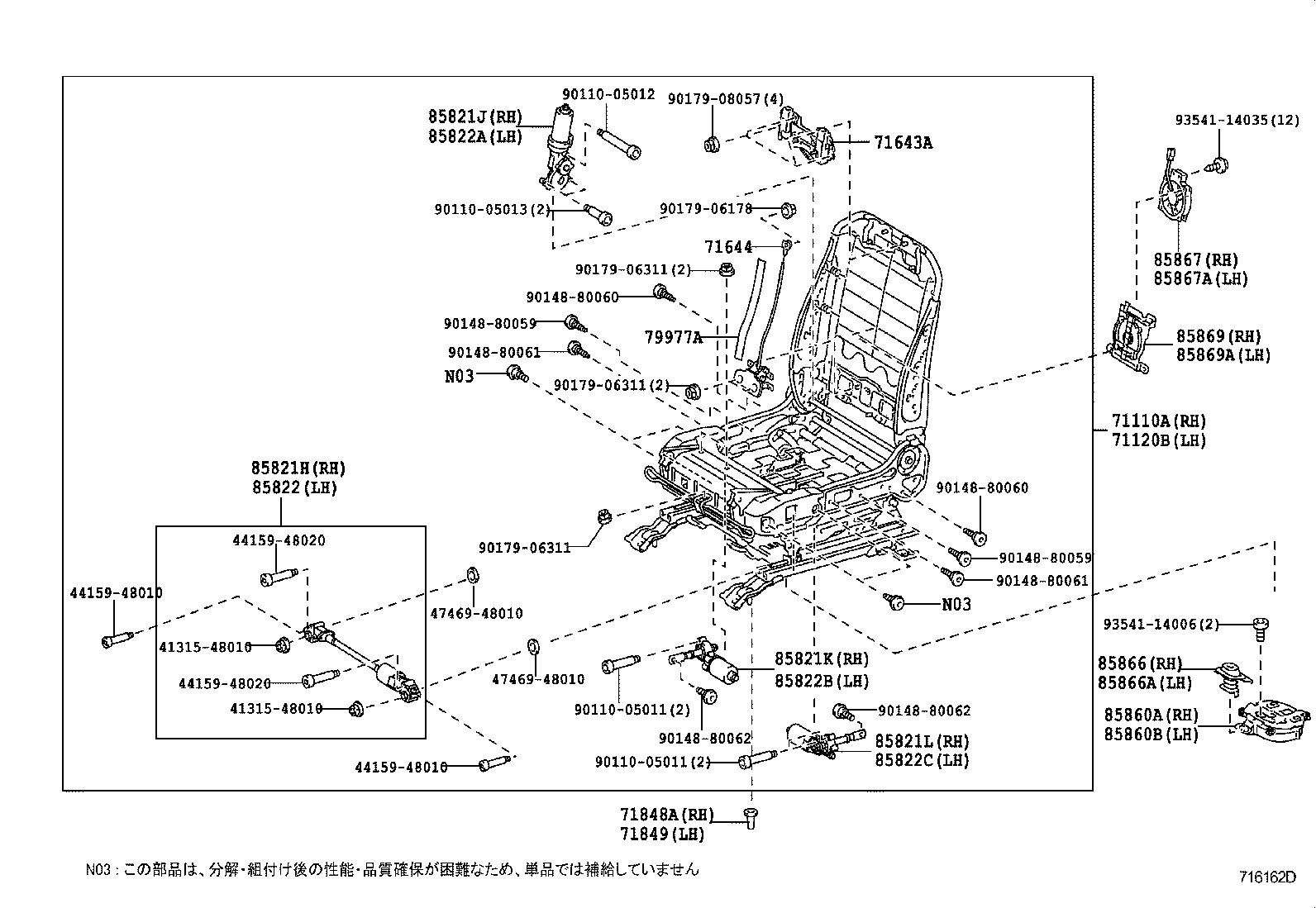

ILLUST NO. 3 OF 3(0812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-48240 |
GGL16 “version L” |
1 | ||
| 71110-48241 |
GGL16 “version L” |
1 | ||
| 71110-48230 |
GGL16,GYL16 |
1 | ||
| 71110-48240 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71110-48231 |
GGL16,GYL16 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-48240 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 71120-48241 |
GGL16 “version L” |
1 | ||
| 71120-48231 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71120-48240 |
GGL16 “version L” |
1 | ||
| 71120-48230 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
AGL10,GGL1#,GYL1# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
AGL10,GGL1#,GYL1# |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 85821H - MOTOR ASSY, POWER SEAT SLIDE, RH | ||||
| 85801-48060 |
GGL16,GYL16 |
1 | ||
| 85801-30210 |
GGL16,GYL16 |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
GGL16,GYL16 |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-58040 |
GGL16,GYL16 |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
GGL16,GYL16 |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-30230 |
AGL10,GGL1#,GYL1# |
1 | ||
| 85801-48090 |
GGL1#,GYL1# |
1 | ||
| 85801-48070 |
AGL10,GGL1#,GYL1# “version L” |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-60020 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85801-28050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 85801-60020 |
GGL16,GYL16 “version L” |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-28080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 85801-60040 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85801-60040 |
GGL16,GYL16 “version L” |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-60030 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85801-60030 |
GGL16,GYL16 “version L” |
1 | ||
| 85801-28070 |
AGL10,GGL1#,GYL1# |
1 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-30020 |
GGL16,GYL16 “version L” |
1 | ||
| 85860-30020 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-30020 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85860-30020 |
GGL16,GYL16 “version L” |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-30010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85866-30010 |
GGL16,GYL16 “version L” |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-30010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85866-30010 |
GGL16,GYL16 “version L” |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33010 |
GGL16,GYL16 “version L” |
1 | ||
| 85867-33010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-33010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85867-33010 |
GGL16,GYL16 “version L” |
1 | ||
| 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-30010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85869-30010 |
GGL16,GYL16 “version L” |
1 | ||
| 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-30010 |
GGL16,GYL16 “version L”&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｻｲﾄﾞｴｱﾊﾞｯｸ) |
1 | ||
| 85869-30010 |
GGL16,GYL16 “version L” |
1 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48010 | ||||
| 44159-48020 | ||||
| 47469-48010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-06311 | ||||
| 90179-08057 | ||||
| 93541-14006 | ||||
| 93541-14035 | ||||
(0812- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
