GGL16W-AWTGK (2008)
Toyota Lexus Rx270/350/450h

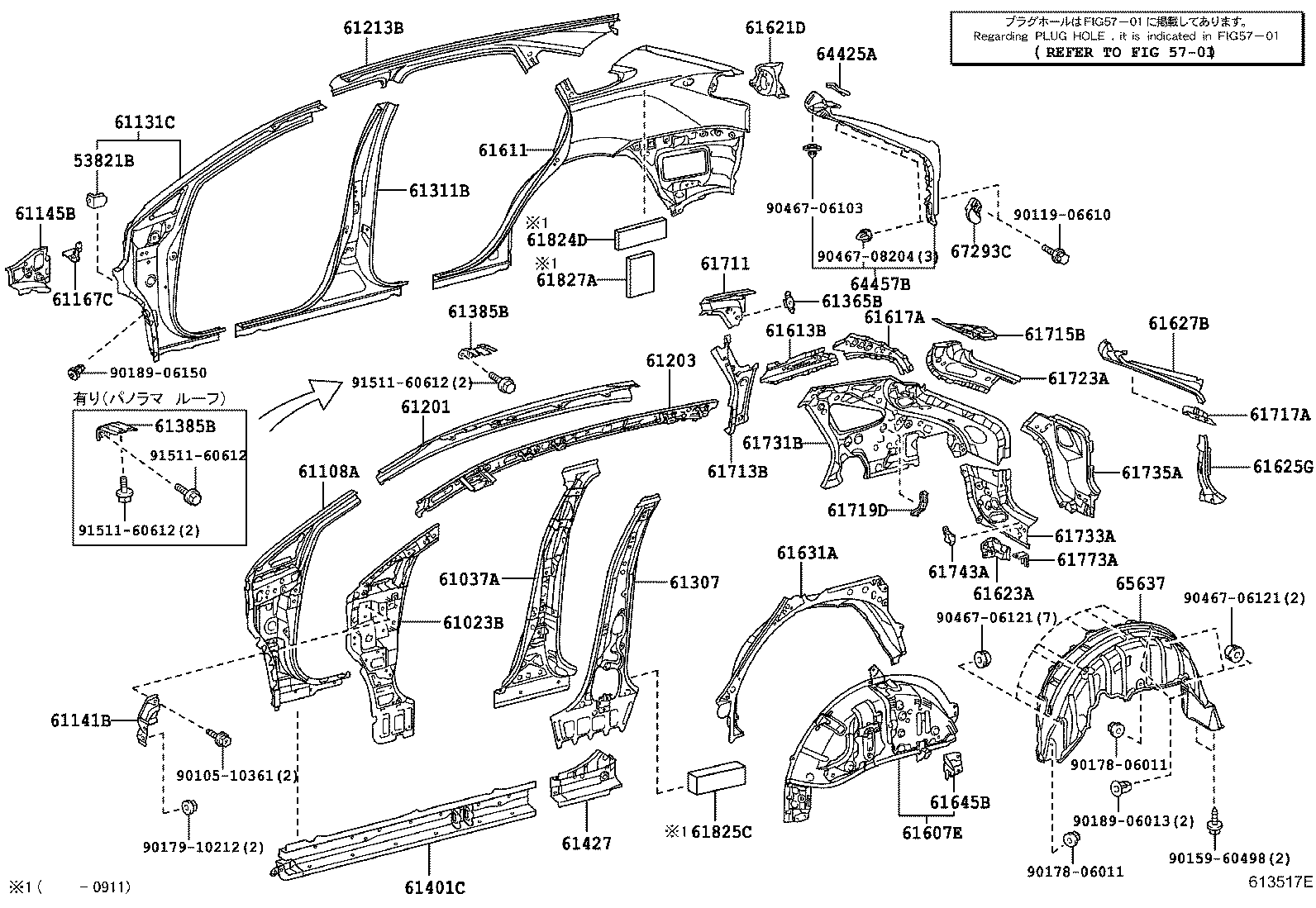

ILLUST NO. 1 OF 2(0812- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-48905 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-48903 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61141B - GUSSET, FRONT BODY PILLAR, UPPER RH | ||||
| 61141-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61167C - BRACKET, FRONT BODY PILLAR TO COWL TOP, RH | ||||
| 61167-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-48902 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61365B - REINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH | ||||
| 61365-60040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61385B - EXTENSION, CENTER BODY PILLAR, INNER RH | ||||
| 61385-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61385-48030 |
AGL10,GGL1#,GYL15 有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
1 | ||
| 61385B - EXTENSION, CENTER BODY PILLAR, INNER RH | ||||
| 61385-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61385-48030 |
AGL10,GGL1#,GYL15 有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-48902 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-48102 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61611-48100 |
GGL1#,GYL1# |
1 | ||
| 61611-48103 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61611-48101 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61613B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61613-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61719D - BRACKET, ROOF SIDE, INNER RH | ||||
| 61719-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61773A - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61773-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-48010 |
GGL1#,GYL1# |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-48010 |
GGL1#,GYL1# |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-48011 |
GGL1#,GYL1# |
1 | ||
| 64425A - PLUG, QUARTER PANEL, RH | ||||
| 64425-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 64457B - COVER, BACK DOOR STOPPER CUSHION, RH | ||||
| 64457-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 67293C - CUSHION, BACK DOOR STOPPER | ||||
| 67293-48060 |
AGL10,GGL1#,GYL1# |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-06610 | ||||
| 90159-60498 | ||||
| 90178-06011 | ||||
| 90179-10212 | ||||
| 90189-06013 | ||||
| 90189-06150 | ||||
| 90467-06103 | ||||
| 90467-06121 | ||||
| 90467-08204 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||

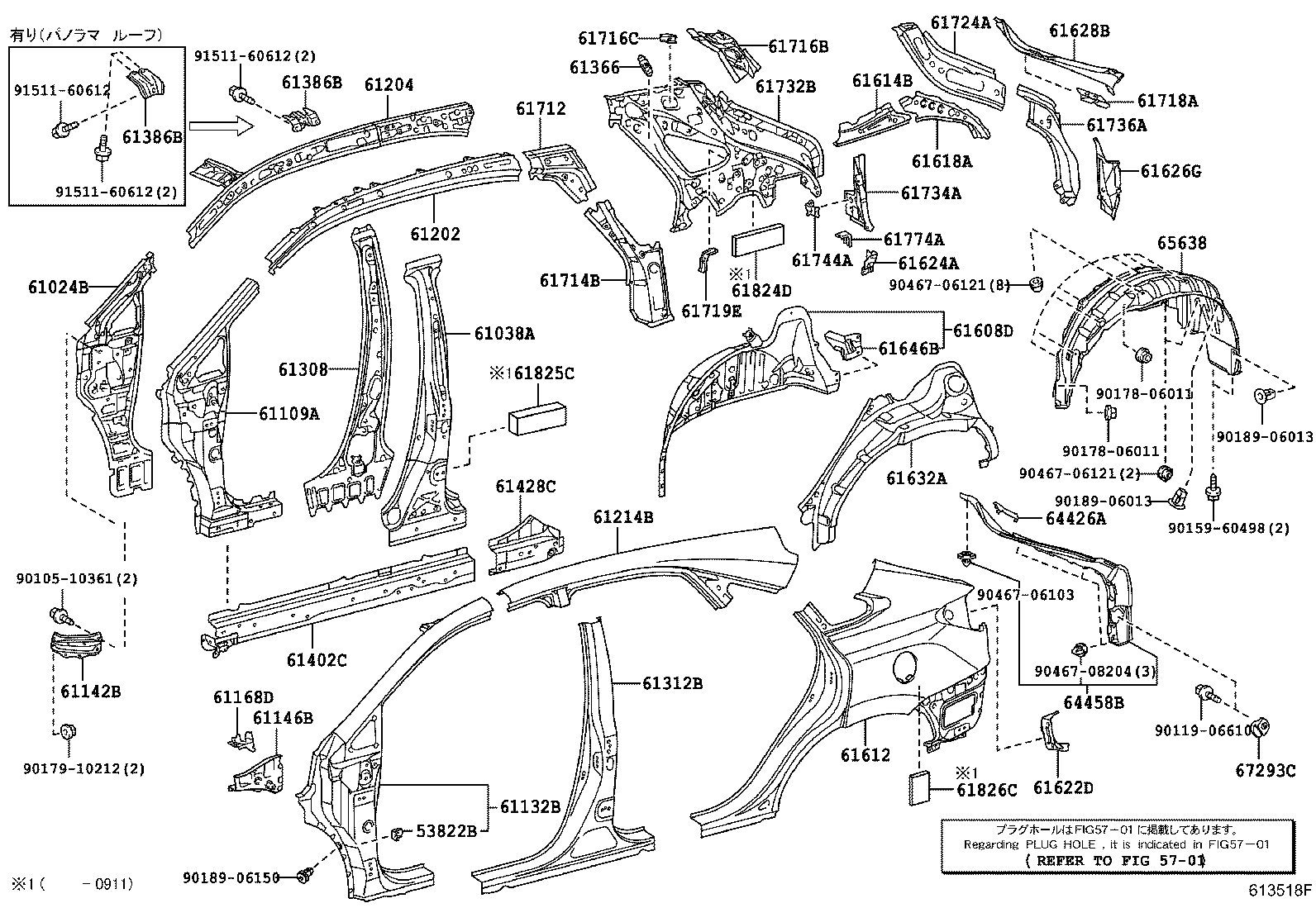

ILLUST NO. 2 OF 2(0812- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-48906 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-48903 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61142B - GUSSET, FRONT BODY PILLAR, UPPER LH | ||||
| 61142-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61168D - BRACKET, FRONT BODY PILLAR TO COWL TOP, LH | ||||
| 61168-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-48902 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61366 - REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH | ||||
| 61365-60040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61385-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61385-48030 |
AGL10,GGL1#,GYL15 有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61385-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61385-48030 |
AGL10,GGL1#,GYL15 有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-48902 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-48101 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61612-48100 |
GGL1#,GYL1# |
1 | ||
| 61612-48103 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61612-48102 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61614B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61614-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-48040 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61716-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 55137-12010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61719E - BRACKET, ROOF SIDE, INNER LH | ||||
| 61719-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-48050 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61773-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-48010 |
GGL1#,GYL1# |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-48010 |
GGL1#,GYL1# |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-48010 |
GGL1#,GYL1# |
1 | ||
| 64426A - PLUG, QUARTER PANEL, LH | ||||
| 64426-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 64458B - COVER, BACK DOOR STOPPER CUSHION, LH | ||||
| 64458-48020 |
AGL10,GGL1#,GYL1# |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-48030 |
AGL10,GGL1#,GYL1# |
1 | ||
| 67293C - CUSHION, BACK DOOR STOPPER | ||||
| 67293-48060 |
AGL10,GGL1#,GYL1# |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-06610 | ||||
| 90159-60498 | ||||
| 90178-06011 | ||||
| 90179-10212 | ||||
| 90189-06013 | ||||
| 90189-06150 | ||||
| 90467-06103 | ||||
| 90467-06121 | ||||
| 90467-08204 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
