GGL15W-AWTGK (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)

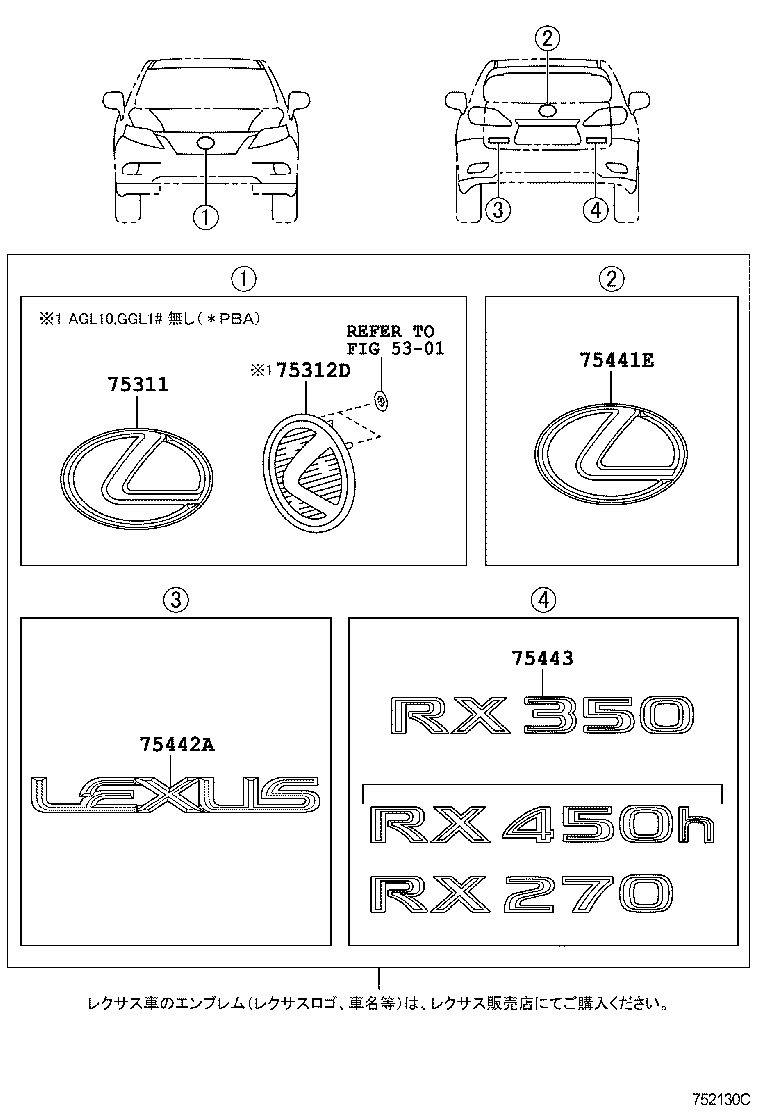

Click highlighted areas on diagram

diagram 5301 75311 75312D 75441E 75442A 75443
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-0208279

AGL10,GGL1#

購入時はｲﾗｽﾄ参照

 1
53141-4805079

GGL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB),購入時はｲﾗｽﾄ参照

 1
75312D - BASE, RADIATOR GRILLE EMBLEM
75312-4804079

GGL1#

購入時はｲﾗｽﾄ参照

 1
75312-4806079

AGL10,GGL10,15

“Art Works” *(M),購入時はｲﾗｽﾄ参照

 1
75312-4804179

AGL10,GGL1#

購入時はｲﾗｽﾄ参照

 1
75441E - PLATE, BACK DOOR NAME, NO.1
90975-0207979

AGL10,GGL1#

購入時はｲﾗｽﾄ参照

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-4811079

AGL10,GGL1#,GYL1#

LEXUS,購入時はｲﾗｽﾄ参照

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-4813079

GGL1#

RX350,購入時はｲﾗｽﾄ参照

 1
Linked diagrams
5301
