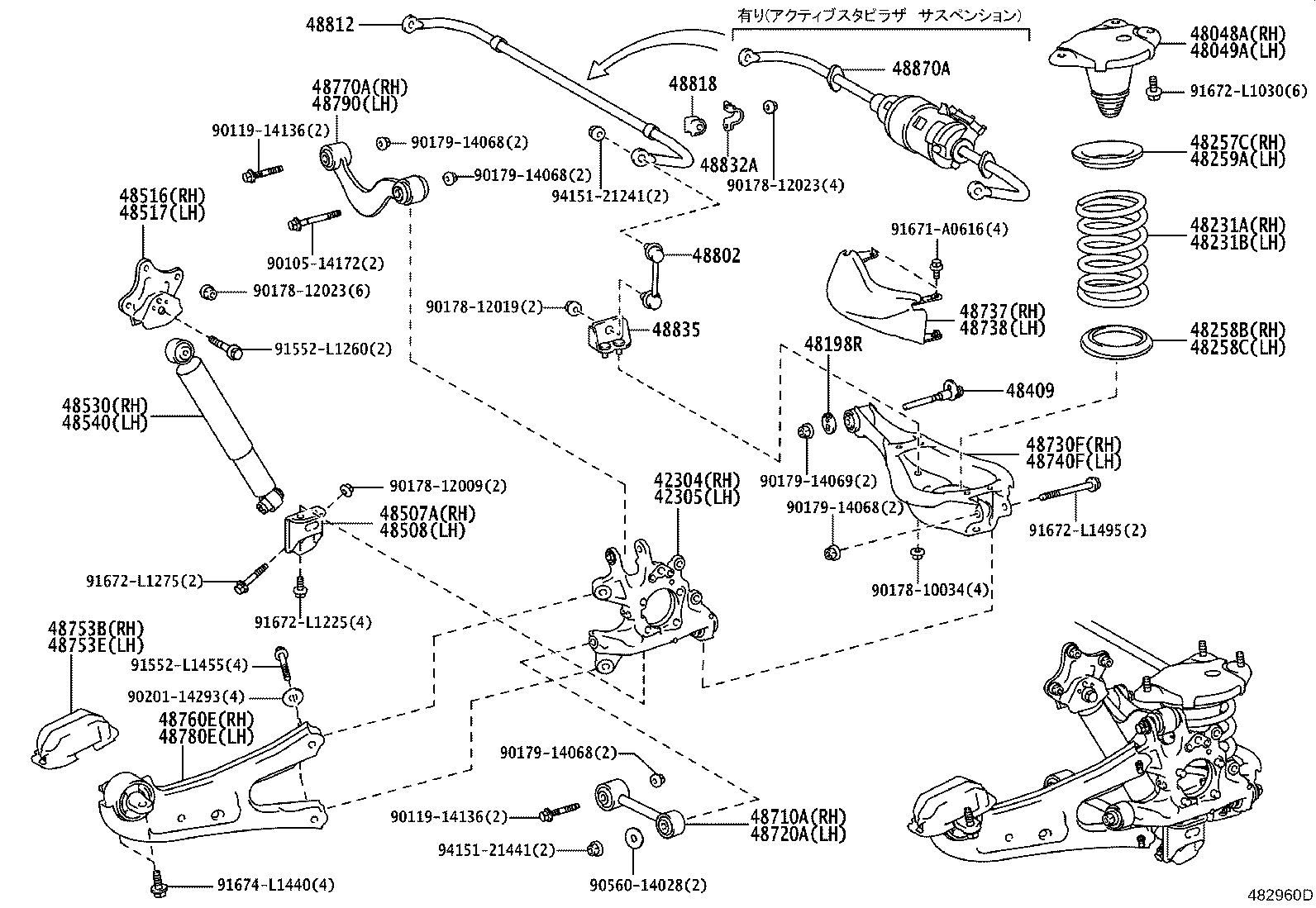

GGL15W-AWTGK (2008)
Toyota Lexus Rx270/350/450h
(0812- )AGL10,GGL10,15,GYL10,15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48048A - SEAT SUB-ASSY, SPRING, RH | ||||
| 48048-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48048-48011 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48049A - SEAT SUB-ASSY, SPRING, LH | ||||
| 48049-48011 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48049-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-48530 |
GGL15,GYL10 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-48530 |
GGL15,GYL10 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-48020 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-48020 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-48030 |
AGL10,GGL1#,GYL1# |
2 | ||
| 48507A - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH | ||||
| 48507-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48508 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH | ||||
| 48508-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48517-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-48140 |
GYL10,15 ﾏｰｸ 48531−48140,“version S” |
1 | ||
| 48531-48100 |
AGL10,GGL10,15 ﾏｰｸ 48531−48100 |
1 | ||
| 48531-48130 |
AGL10,GGL10,15 ﾏｰｸ 48531−48130,“version S” |
1 | ||
| 48531-48131 |
AGL10,GGL10,15 ﾏｰｸ 48531−48131,“version S” |
1 | ||
| 48531-48141 |
GYL10,15 ﾏｰｸ 48531−48141,“version S” |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-48140 |
GYL10,15 ﾏｰｸ 48531−48140,“version S” |
1 | ||
| 48531-48100 |
AGL10,GGL10,15 ﾏｰｸ 48531−48100 |
1 | ||
| 48531-48130 |
AGL10,GGL10,15 ﾏｰｸ 48531−48130,“version S” |
1 | ||
| 48531-48131 |
AGL10,GGL10,15 ﾏｰｸ 48531−48131,“version S” |
1 | ||
| 48531-48141 |
GYL10,15 ﾏｰｸ 48531−48141,“version S” |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-48080 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-48170 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-48010 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-48170 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH | ||||
| 48753-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-48060 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-48090 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-48010 |
AGL10,GGL1#,GYL1# |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48803-48010 |
AGL10,GGL10,15,GYL10,15 左側 |
1 | ||
| 48802-48010 |
AGL10,GGL10,15,GYL10,15 右側 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-48230 |
AGL10,GGL10,15,GYL10,15 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-48060 |
AGL10,GGL10,15,GYL10,15 |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-48050 |
AGL10,GGL1#,GYL1# |
2 | ||
| 48835 - BRACKET, REAR STABILIZER, LOWER | ||||
| 48835-48010 |
AGL10,GGL1#,GYL1# |
2 | ||
| Common parts | ||||
| 90105-14172 | ||||
| 90119-14136 | ||||
| 90178-10034 | ||||
| 90178-12009 | ||||
| 90178-12019 | ||||
| 90178-12023 | ||||
| 90179-14068 | ||||
| 90179-14069 | ||||
| 90201-14293 | ||||
| 90560-14028 | ||||
| 91552-L1260 | ||||
| 91552-L1455 | ||||
| 91671-A0616 | ||||
| 91672-L1030 | ||||
| 91672-L1225 | ||||
| 91672-L1275 | ||||
| 91672-L1495 | ||||
| 91674-L1440 | ||||
| 94151-21241 | ||||
| 94151-21441 | ||||
