GGL15W-AWTGK (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

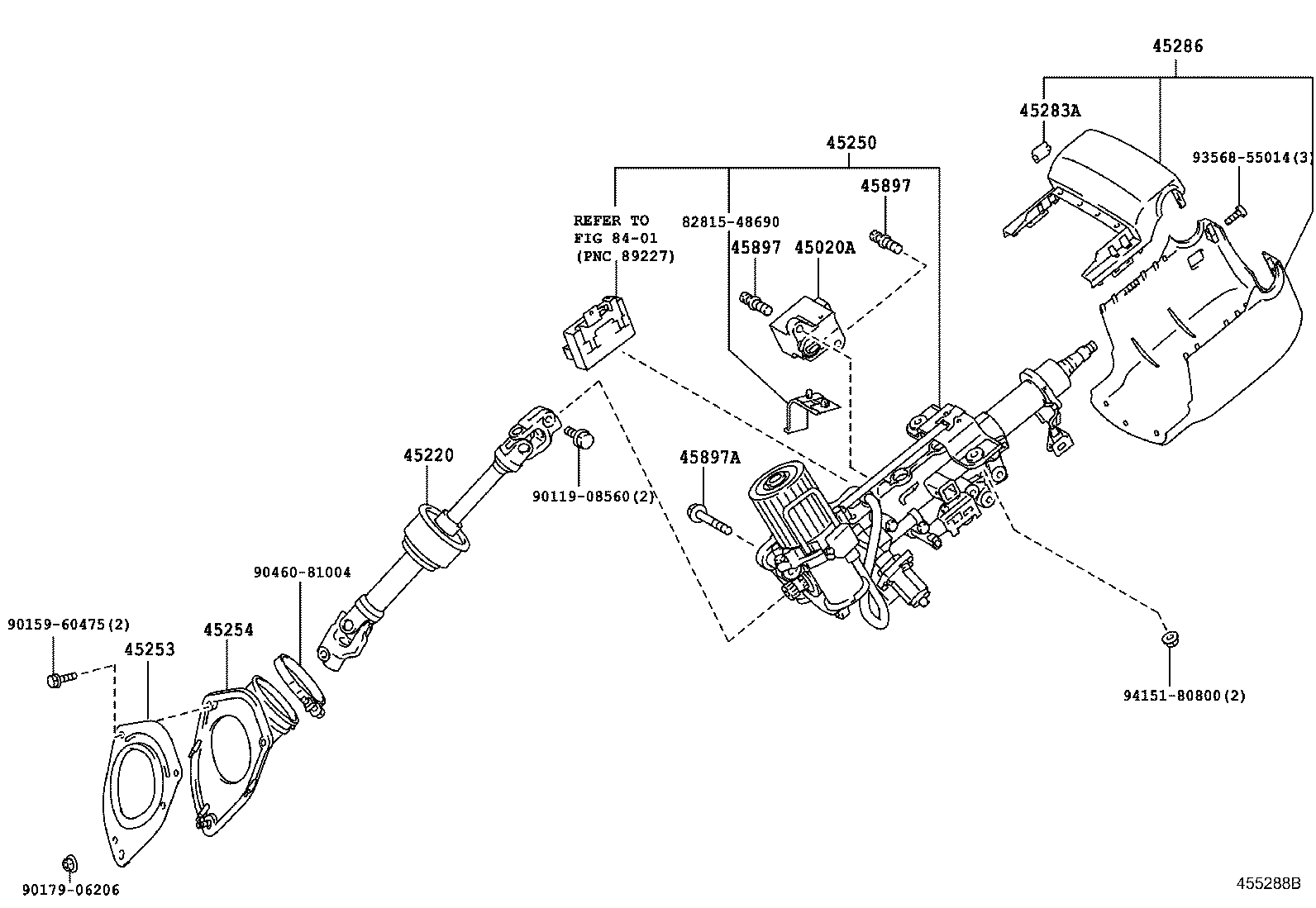

Click highlighted areas on diagram

diagram 45020A 45220 45250 45253 45254 45283A 45286 45897 45897 45897A 8281548690 8401 9011908560 9015960475 9017906206 9046081004 9356855014 9415180800
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-48100

AGL10,GGL1#,GYL1#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-48190

AGL10,GGL1#,GYL1#

 1
45250 - COLUMN ASSY, STEERING
45250-48231

AGL10,GGL1#,GYL1#

 1
45250-48230

AGL10,GGL1#,GYL1#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48060

AGL10,GGL1#,GYL1#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48070

AGL10,GGL1#,GYL1#

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

AGL10,GGL1#,GYL1#

 1
45286 - COVER, STEERING COLUMN
45024-48901C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#

 1
45024-48901E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
45024-48902E0

AGL10,GGL1#,GYL1#

DK. BROWN,TRIM0#

 1
45024-48902C0

AGL10,GGL1#,GYL1#

BLACK,TRIM1#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AGL10,GGL1#,GYL1#

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AGL10,GGL1#,GYL1#

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-20020

AGL10,GGL1#,GYL1#

 1
Common parts
82815-48690
90119-08560
90159-60475
90179-06206
90460-81004
93568-55014
94151-80800
Linked diagrams
8401
