GGL10W-AWTGK (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0812- )AGL10,GGL1#

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9164180818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48410

GGL10

 1
44050-48490

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)&車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48490

GGL10

車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48421

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
44050-48420

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
44050-48491

AGL10,GGL10

車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48411

AGL10,GGL10

 1
44050-48492

AGL10,GGL10

車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48492

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)&車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48491

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)&車両運動統合制御−VDIMｱﾙﾌｧ(V2−H)

 1
44050-48422

GGL10

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
44050-48412

AGL10,GGL10

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGL10,GGL1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGL10,GGL1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGL10,GGL1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48190

AGL10,GGL1#

 1
Common parts
44521-12050
90119-06844
91641-80818

ILLUST NO. 1 OF 2(0812- )AGL10,GGL1#

Click highlighted areas on diagram

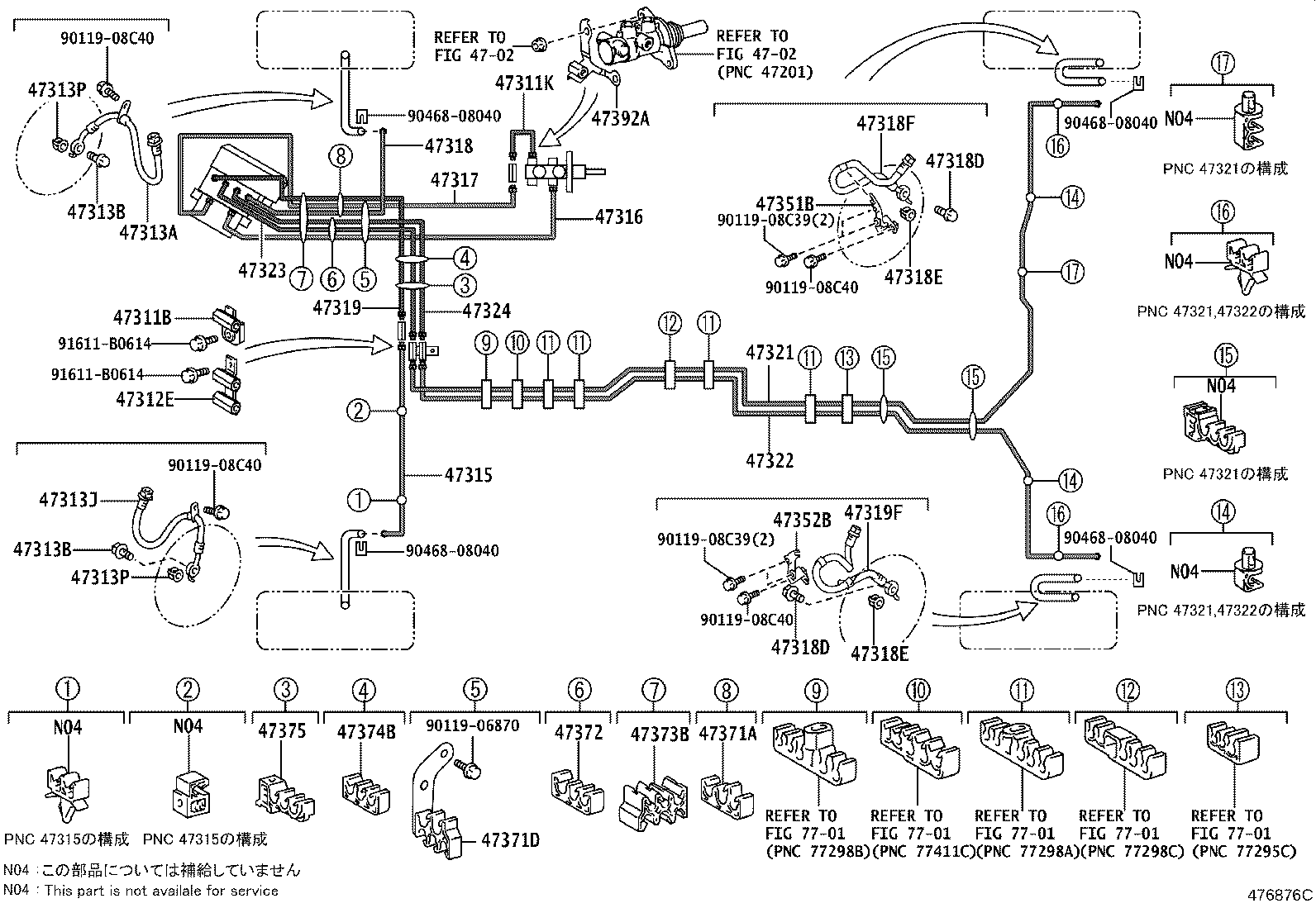

diagram 4702 4702 47311B 47311K 47312E 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47351B 47352B 47371A 47371D 47372 47373B 47374B 47375 47392A 7701 7701 7701 7701 7701 9011908C39 9011908C39 9011908C40 9011908C40 9011908C40 9011908C40 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

AGL10,GGL1#

 1
47311K - TUBE, BRAKE MASTER CYLINDER TO WAY
47311-48050

AGL10,GGL1#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

AGL10,GGL1#,GYL1#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F79

AGL10,GGL1#,GYL1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F80

AGL10,GGL1#,GYL1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48180

AGL10,GGL1#,GYL1#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48260

AGL10,GGL1#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48310

GGL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
47317-48260

AGL10,GGL1#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48170

AGL10,GGL1#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F78

AGL10,GGL1#,GYL1#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48240

AGL10,GGL1#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F78

AGL10,GGL1#,GYL1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48110

AGL10,GGL1#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48120

AGL10,GGL1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48270

AGL10,GGL1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48270

AGL10,GGL1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-48010

AGL10,GGL1#,GYL1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-48010

AGL10,GGL1#,GYL1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00919

AGL10,GGL1#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-04057

GGL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
90949-04045

AGL10,GGL1#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00894

AGL10,GGL1#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D52

AGL10,GGL1#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00857

AGL10,GGL1#,GYL1#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01C95

AGL10,GGL1#

 1
47392A - WAY, BRAKE TUBE, NO.2
47392-48010

AGL10,GGL1#

 1
Common parts
90119-08C39
90119-08C40
90468-08040
91611-B0614
91611-G0612
Linked diagrams
4702
7701

ILLUST NO. 1 OF 2(0812- )GGL1#

Click highlighted areas on diagram

ｱﾘ(ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ)

diagram 4702 4702 47311B 47311K 47312E 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47323 47324 47351B 47352B 47371A 47371D 47372 47373B 47374B 47375 47392A 7701 7701 7701 7701 7701 9011906870 9011908C39 9011908C39 9011908C40 9011908C40 9011908C40 9011908C40 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

AGL10,GGL1#

 1
47311K - TUBE, BRAKE MASTER CYLINDER TO WAY
47311-48050

AGL10,GGL1#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

AGL10,GGL1#,GYL1#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F79

AGL10,GGL1#,GYL1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F80

AGL10,GGL1#,GYL1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48180

AGL10,GGL1#,GYL1#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48260

AGL10,GGL1#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48310

GGL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
47317-48260

AGL10,GGL1#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48170

AGL10,GGL1#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGL10,GGL1#,GYL1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AGL10,GGL1#,GYL1#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F78

AGL10,GGL1#,GYL1#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48240

AGL10,GGL1#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F78

AGL10,GGL1#,GYL1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48110

AGL10,GGL1#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48120

AGL10,GGL1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48270

AGL10,GGL1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48270

AGL10,GGL1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-48010

AGL10,GGL1#,GYL1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-48010

AGL10,GGL1#,GYL1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00919

AGL10,GGL1#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-04057

GGL1#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB&*PBA&*PB)

 1
90949-04045

AGL10,GGL1#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00894

AGL10,GGL1#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D52

AGL10,GGL1#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00857

AGL10,GGL1#,GYL1#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01C95

AGL10,GGL1#

 1
47392A - WAY, BRAKE TUBE, NO.2
47392-48010

AGL10,GGL1#

 1
Common parts
90119-06870
90119-08C39
90119-08C40
90468-08040
91611-B0614
Linked diagrams
4702
7701
