GSC10-RCZLH (2015)

Toyota Lexus Rc Series

Production Oct 2015 - Oct 2018

Engine 2GRF

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

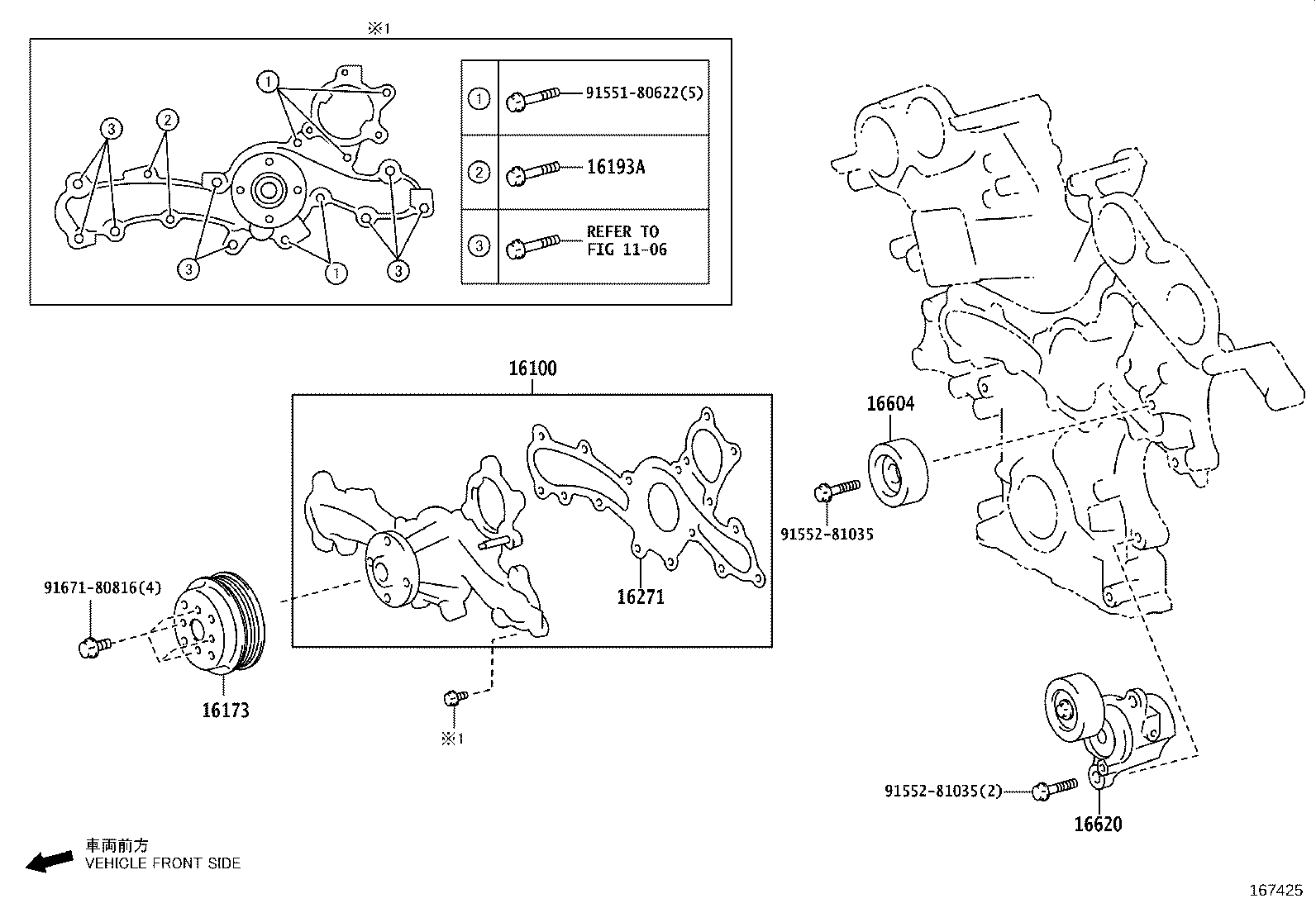

(1409-1711)2GRF

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-39436	2GRF..GSC10	10/2015 - 11/2017	1
16100-39615	2GRF..GSC10	11/2017 - 10/2018	1
16173 - PULLEY, WATER PUMP
16173-31030	2GRF..GSC10	11/2017 - 10/2018	1
16173-31010	2GRF..GSC10	10/2015 - 11/2017	1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080	2GRF..GSC10	10/2015 - 09/2018	2
16271 - GASKET, WATER PUMP
16271-31020	2GRF..GSC10	10/2015 - 11/2017	1
16271-31050	2GRF..GSC10	11/2017 - 10/2018	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31030	2GRF..GSC10	10/2015 - 10/2018	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31021	2GRF..GSC10	10/2015 - 11/2017	1
16620-31100	2GRF..GSC10	11/2017 - 10/2018	1
Common parts
91551-80622
91552-81035
91552-81070
91671-80816
Linked diagrams
1106

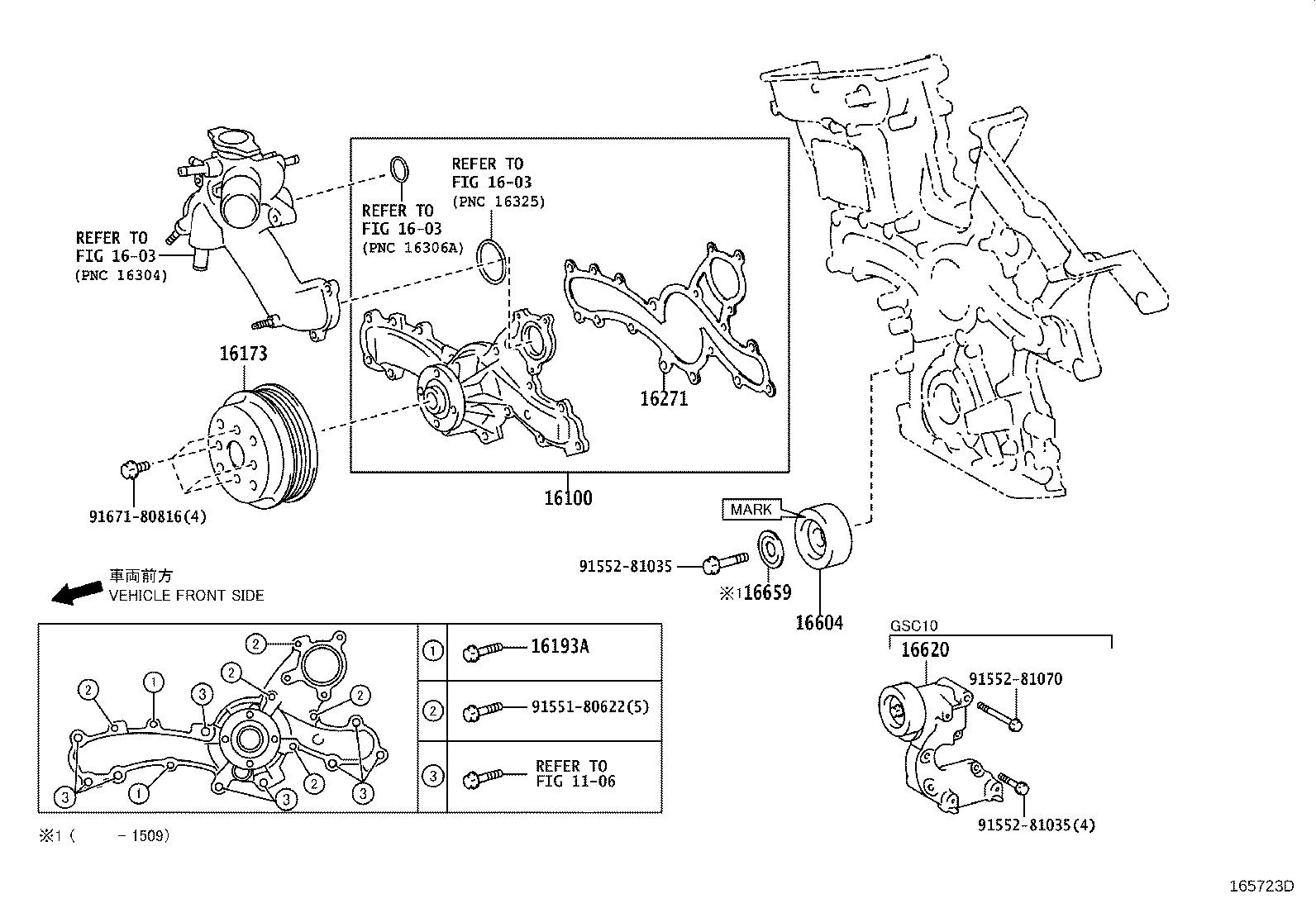

(1711- )2GRF

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-39436	2GRF..GSC10	10/2015 - 11/2017	1
16100-39615	2GRF..GSC10	11/2017 - 10/2018	1
16173 - PULLEY, WATER PUMP
16173-31030	2GRF..GSC10	11/2017 - 10/2018	1
16173-31010	2GRF..GSC10	10/2015 - 11/2017	1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080	2GRF..GSC10	10/2015 - 09/2018	2
16271 - GASKET, WATER PUMP
16271-31020	2GRF..GSC10	10/2015 - 11/2017	1
16271-31050	2GRF..GSC10	11/2017 - 10/2018	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31030	2GRF..GSC10	10/2015 - 10/2018	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31021	2GRF..GSC10	10/2015 - 11/2017	1
16620-31100	2GRF..GSC10	11/2017 - 10/2018	1
Common parts
91551-80622
91552-81035
91671-80816
Linked diagrams
1106
