GSC10-RCZLH (2014)

Toyota Lexus Rc Series

Production Sep 2014 - Oct 2015
Engine 2GRF
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

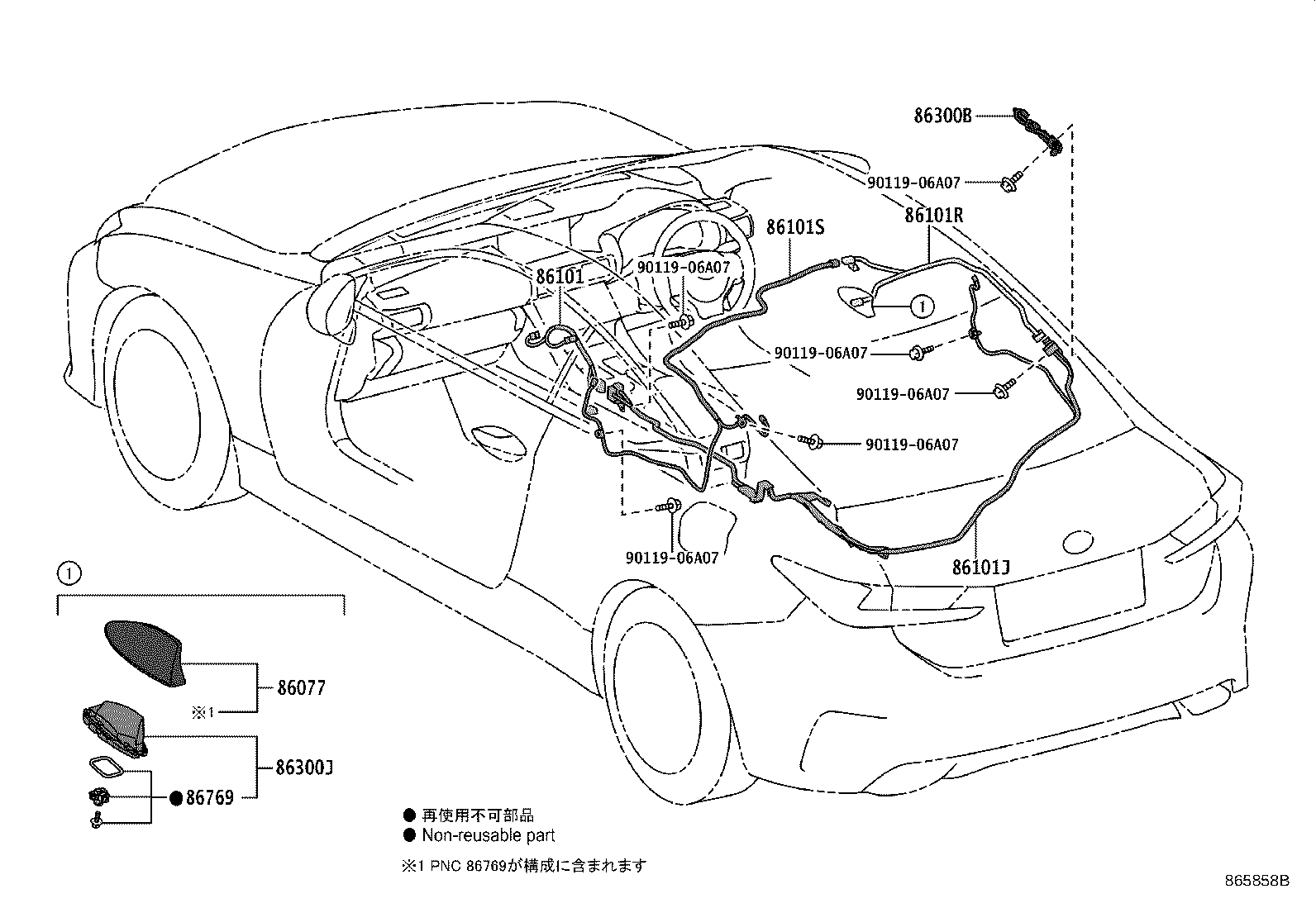

Click highlighted areas on diagram

diagram 86077 86101 86101J 86101R 86101S 86300B 86300J 86769 9011906A07 9011906A07 9011906A07 9011906A07 9011906A07 9011906A07
Part # Description Qty Price
86077 - COVER KIT, ANTENNA
86077-53010A0

AVC10,GSC10

WHITE PEARL CS.,077

 1
86077-53010C1

AVC10,GSC10

STARLIGHT BLACK GF.,217

 1
86077-53010A1

AVC10,GSC10

WHITE NOVA GF.,083

 1
86077-53010B0

AVC10,GSC10

MERCURY GRAY MC.,1H9

 1
86077-53010B2

AVC10,GSC10

SONIC TITANIUM,1J7

 1
86077-53010J2

AVC10,GSC10

BLUE,8X1

 1
86077-53010E2

AVC10,GSC10

ORANGE,4W7

 1
86077-53010D1

AVC10,GSC10

RED,3T5

 1
86077-53010C0

AVC10,GSC10

BLACK,212

 1
86077-53010B1

AVC10,GSC10

PLATINUM SILVER ME.,1J4

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-53840

AVC10,GSC10

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-24490

AVC10,GSC10

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-24510

AVC10,GSC10

 1
86101S - CORD SUB-ASSY, ANTENNA
86101-24520

AVC10,GSC10

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-24400

AVC10,GSC10

 1
86300J - ANTENNA ASSY, ROOF
86760-53100

AVC10,GSC10

 1
86769 - HOUSING, ROOF ANTENNA
86769-53010

AVC10,GSC10

 1
Common parts
90119-06A07
