GSC10-RCZLH (2014)
Toyota Lexus Rc Series

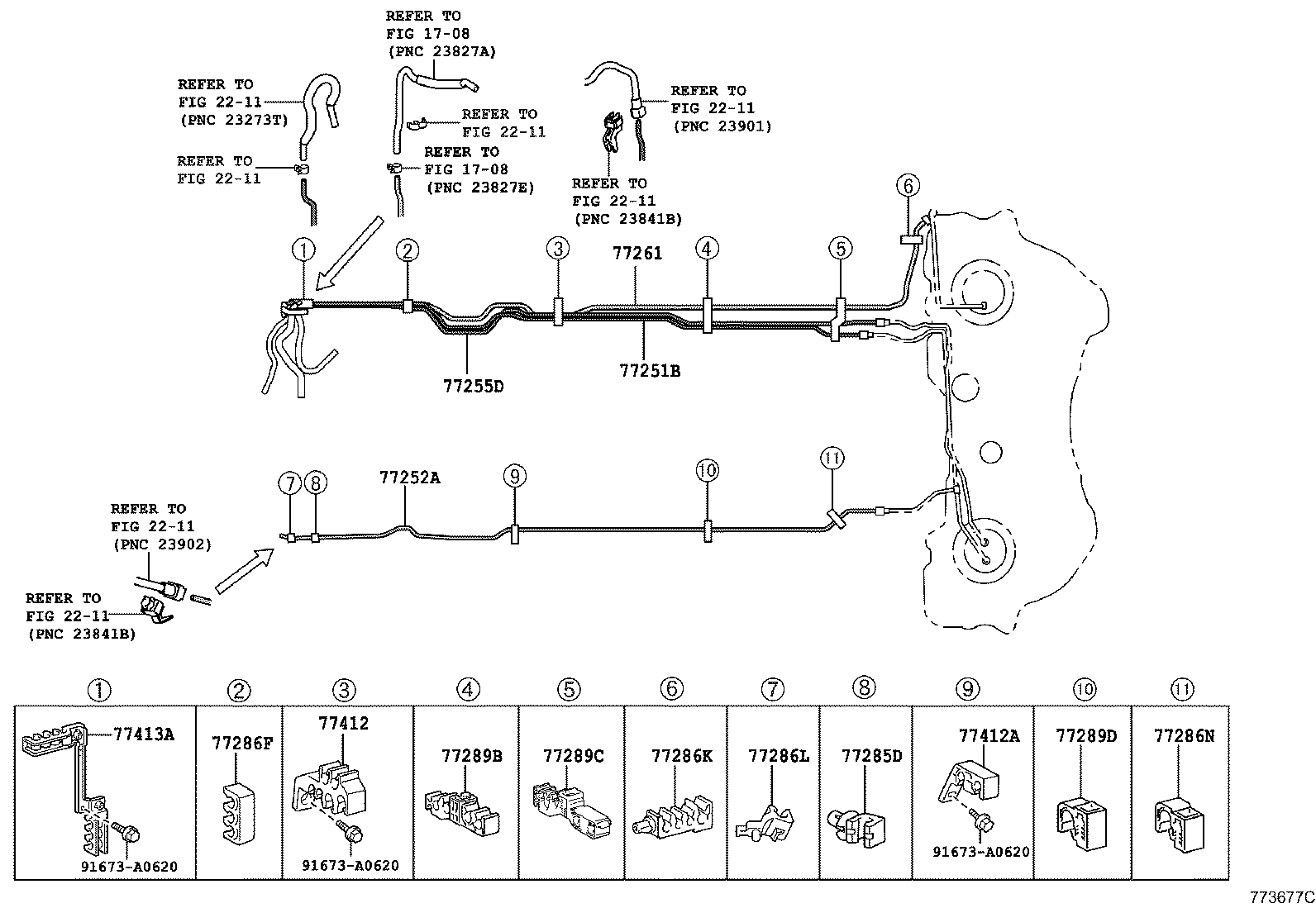

ILLUST NO. 2 OF 3(1409-1711)GSC10
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-24080 |
GSC10 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-24030 |
GSC10 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-24080 |
GSC10 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-24130 |
GSC10 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30320 |
GSC10 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30170 |
AVC10,GSC10 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30210 |
AVC10,GSC10 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-53040 |
GSC10 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77299-24030 |
GSC10 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30130 |
GSC10 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-24040 |
AVC10,GSC10 |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
GSC10 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30100 |
AVC10,GSC10 |
1 | ||
| 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-53020 |
GSC10 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30071 |
GSC10 |
1 | ||
| Common parts | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1409- )
ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-24060 |
AVC10,GSC10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-24020 |
AVC10,GSC10 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-24010 |
AVC10,GSC10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-24080 |
AVC10,GSC10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AVC10,GSC10 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AVC10,GSC10 |
2 | ||
| 89612A - LIFTER, PUSH | ||||
| 89612-30011 |
AVC10,GSC10 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||

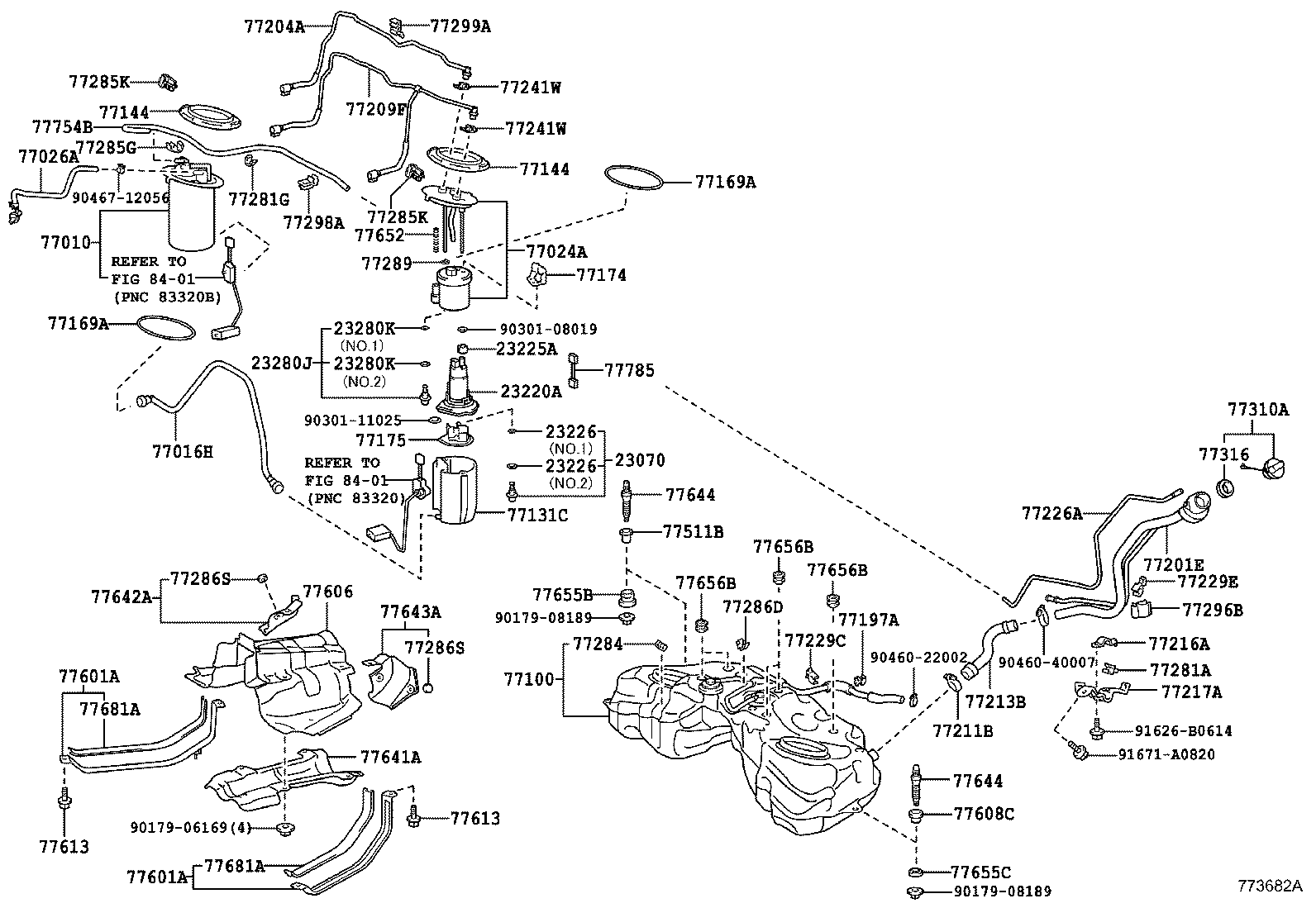

ILLUST NO. 1 OF 3(1409-1711)GSC10
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-38020 |
2GRF..GSC10 |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-38041 |
2GRF..GSC10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
2GRF..GSC10 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-15024 |
2GRF..GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90301-04013 |
2GRF..GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-15024 |
2GRF..GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90301-04013 |
2GRF..GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2ARFSE,2GRF..AVC10,GSC10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ARFSE,2GRF..AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
2ARFSE,2GRF..AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ARFSE,2GRF..AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
2ARFSE,2GRF..AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-30020 |
AVC10,GSC10 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-30090 |
AVC10,GSC10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30160 |
GSC10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-30100 |
AVC10,GSC10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30630 |
AVC10,GSC10 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-30063 |
AVC10,GSC10 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
AVC10,GSC10 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
AVC10,GSC10 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
AVC10,GSC10 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
AVC10,GSC10 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-30040 |
GSC10 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-50010 |
GSC10 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42010 |
AVC10,GSC10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-24120 |
AVC10,GSC10 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-30071 |
GSC10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-30191 |
GSC10 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-50008 |
AVC10,GSC10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30240 |
AVC10,GSC10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-30090 |
AVC10,GSC10 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-30160 |
AVC10,GSC10 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-24030 |
AVC10,GSC10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-30100 |
AVC10,GSC10 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30090 |
AVC10,GSC10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GSC10 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GSC10 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
AVC10,GSC10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-47050 |
AVC10,GSC10 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-30120 |
AVC10,GSC10 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30300 |
AVC10,GSC10 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
AVC10,GSC10 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
AVC10,GSC10 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30180 |
AVC10,GSC10 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
AVC10,GSC10 |
4 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
AVC10,GSC10 |
4 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
AVC10,GSC10 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-58010 |
AVC10,GSC10 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30200 |
AVC10,GSC10 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-30090 |
AVC10,GSC10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
AVC10,GSC10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AVC10,GSC10 |
1 | ||
| 77511B - BRACKET, FUEL TANK | ||||
| 77511-48030 |
AVC10,GSC10 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30190 |
AVC10,GSC10 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30190 |
AVC10,GSC10 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-53050 |
AVC10,GSC10 |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48010 |
AVC10,GSC10 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AVC10,GSC10 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AVC10,GSC10 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-30160 |
AVC10,GSC10 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-30040 |
AVC10,GSC10 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-30030 |
AVC10,GSC10 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-48010 |
AVC10,GSC10 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-48010 |
AVC10,GSC10 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-30090 |
AVC10,GSC10 |
1 | ||
| 77655B - CUSHION, FUEL TANK | ||||
| 77655-30080 |
AVC10,GSC10 |
1 | ||
| 77655C - CUSHION, FUEL TANK | ||||
| 77655-48010 |
AVC10,GSC10 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
AVC10,GSC10 |
5 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
AVC10,GSC10 |
5 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
AVC10,GSC10 |
5 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-30030 |
AVC10,GSC10 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-30030 |
AVC10,GSC10 |
2 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-30040 |
AVC10,GSC10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-53010 |
GSC10 |
1 | ||
| Common parts | ||||
| 90179-06169 | ||||
| 90179-08189 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-40007 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 91671-A0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
