GSC10-RCZLH (2014)
Toyota Lexus Rc Series
Production
Sep 2014
-
Oct 2015
Engine
2GRF
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1409-1711)2GRF

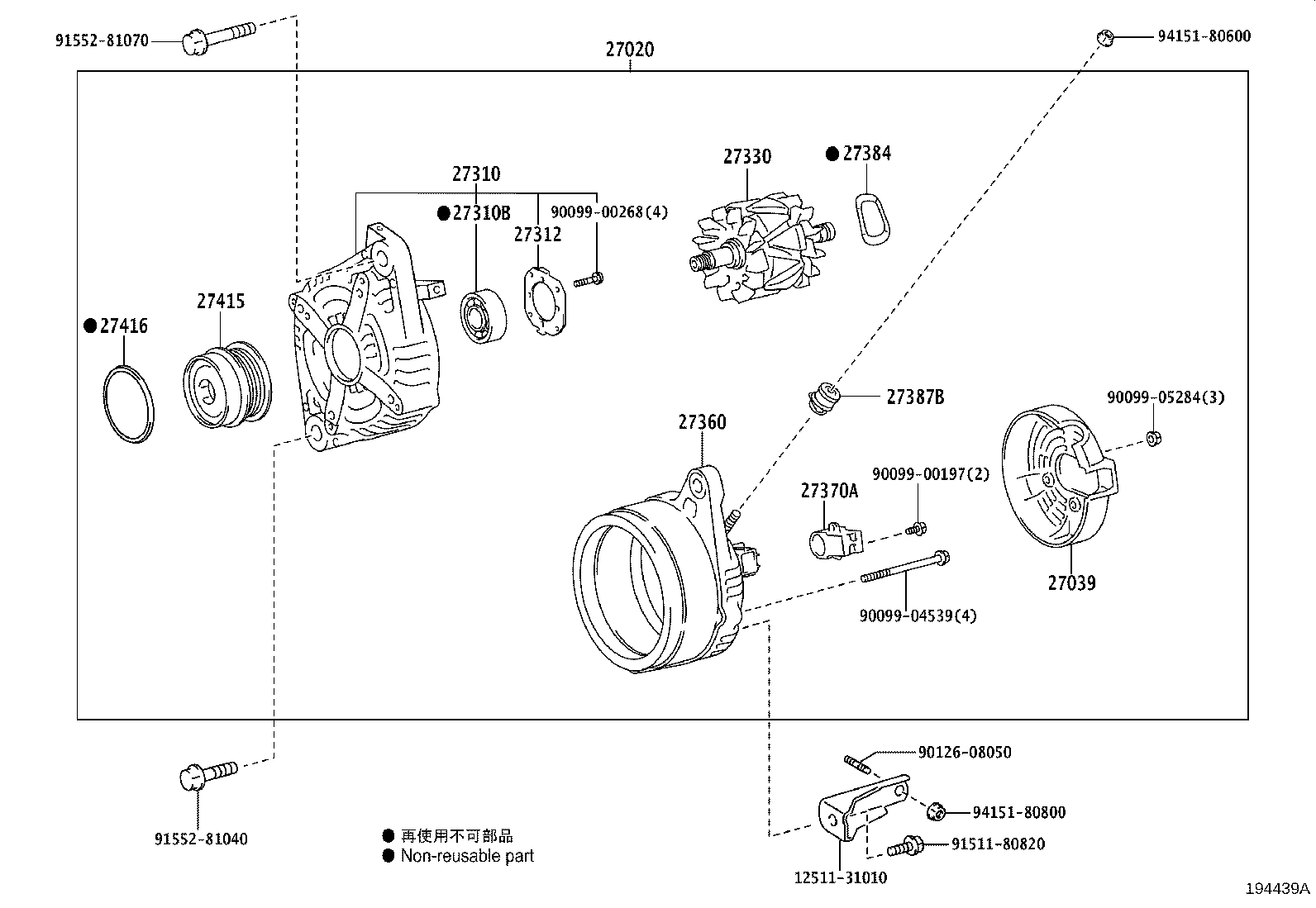

Click highlighted areas on diagram
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31350 |
2GRF..GSC10 12V 150A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
2GRF..GSC10 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31220 |
2GRF..GSC10 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
2GRF..GSC10 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2GRF..GSC10 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
2GRF..GSC10 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31500 |
2GRF..GSC10 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
2GRF..GSC10 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2GRF..GSC10 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
2GRF..GSC10 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W131 |
2GRF..GSC10 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2GRF..GSC10 |
1 | ||
| Common parts | ||||
| 12511-31010 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90126-08050 | ||||
| 91511-80820 | ||||
| 91552-81040 | ||||
| 91552-81070 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
