AVC10-RCXLH (2018)
Toyota Lexus Rc Series
Production
Oct 2018
-
Sep 9999
Engine
2ARFSE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1810- )

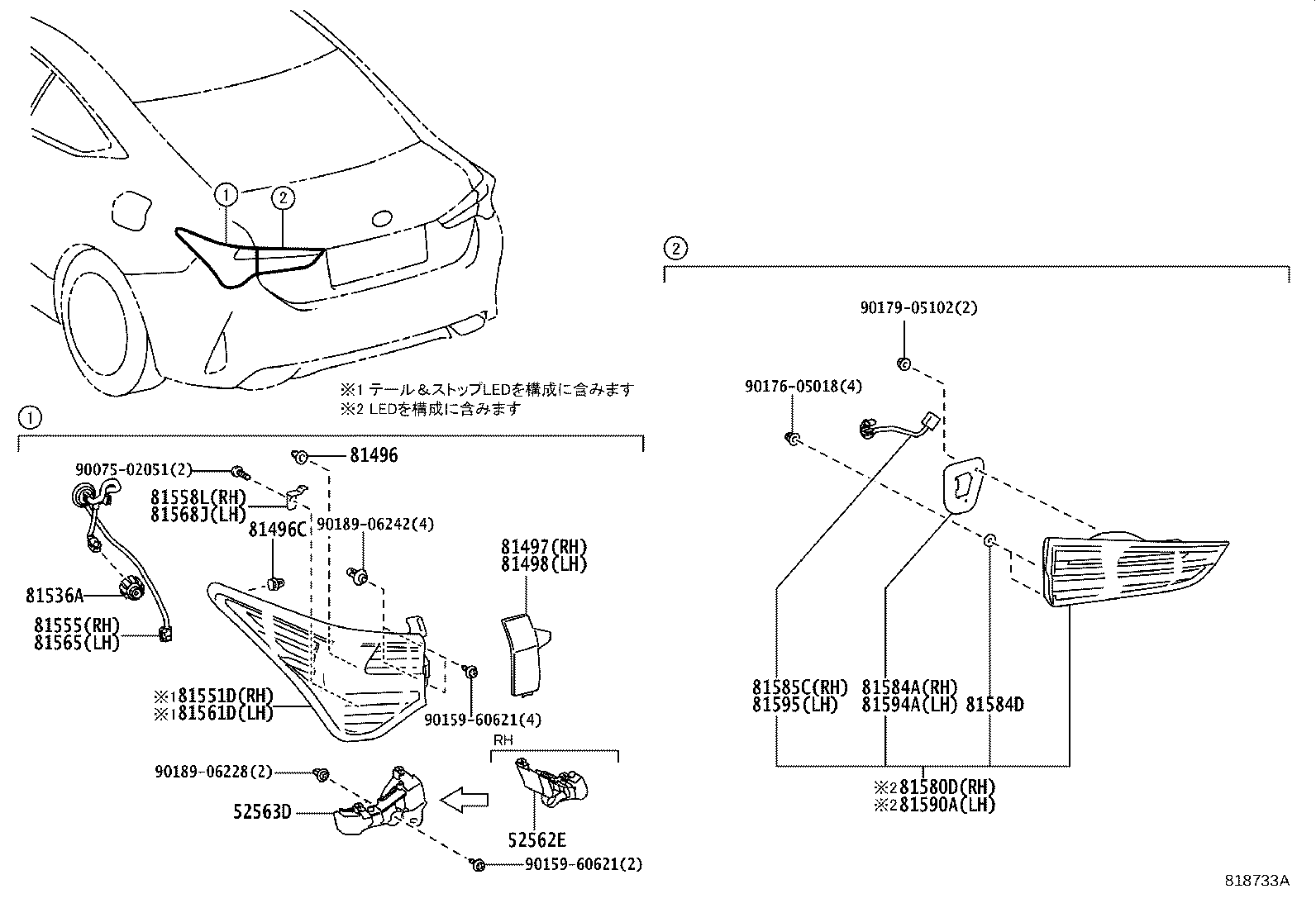

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-24020 |
ASC10,AVC10,GSC10 |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-24020 |
ASC10,AVC10,GSC10 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ASC10,AVC10,GSC10 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ASC10,AVC10,GSC10 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-24010 |
ASC10,AVC10,GSC10 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-24010 |
ASC10,AVC10,GSC10 |
1 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-12D30 |
ASC10,AVC10,GSC10 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-24230 |
ASC10,AVC10,GSC10 |
1 | ||
| 81551-24231 |
ASC10,AVC10,GSC10 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-24230 |
ASC10,AVC10,GSC10 |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24220 |
ASC10,AVC10,GSC10 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-24231 |
ASC10,AVC10,GSC10 |
1 | ||
| 81561-24230 |
ASC10,AVC10,GSC10 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-24230 |
ASC10,AVC10,GSC10 |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81568-24220 |
ASC10,AVC10,GSC10 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 81580-24110 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-24050 |
ASC10,AVC10,GSC10 |
4 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 81590-24110 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90179-05102 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
