AVC10-RCXLH (2018)
Toyota Lexus Rc Series

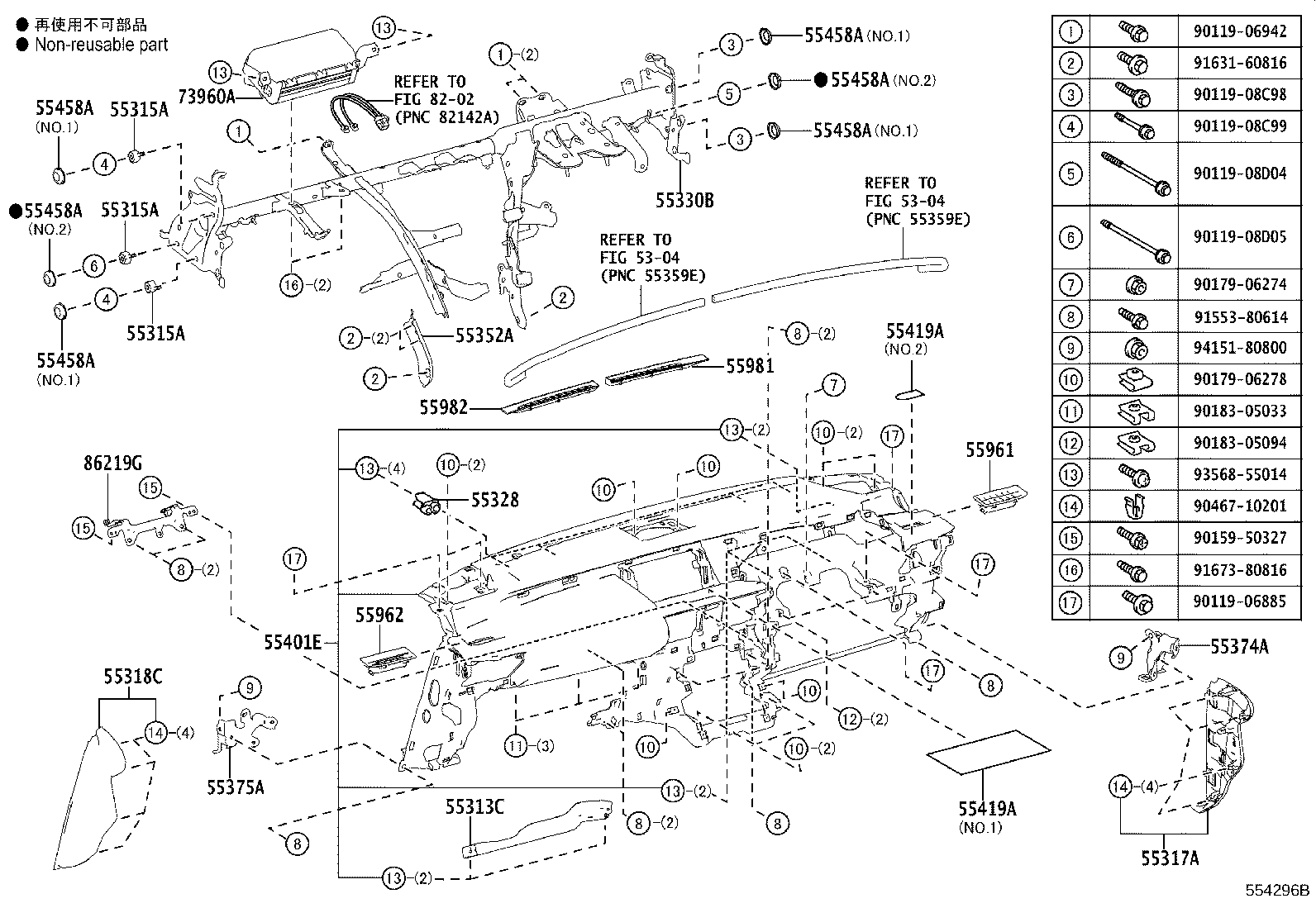

ILLUST NO. 1 OF 2(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55313C - BRACKET, GLOVE COMPARTMENT | ||||
| 55313-53040 |
ASC10,AVC10,GSC10 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
ASC10,AVC10,GSC10 |
3 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
ASC10,AVC10,GSC10 |
3 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
ASC10,AVC10,GSC10 |
3 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-53100C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-53070C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ASC10,AVC10,GSC10 |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-53390 |
ASC10,AVC10,GSC10 |
1 | ||
| 55330-53391 |
ASC10,AVC10,GSC10 |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-53070 |
ASC10,AVC10,GSC10 |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55375-53060 |
ASC10,AVC10,GSC10 |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55374-53030 |
ASC10,AVC10,GSC10 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-53902C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55401-53905C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-53030 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55419-53040 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-53030 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55419-53040 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-53011 |
ASC10,AVC10,GSC10 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 55458-22110 |
ASC10,AVC10,GSC10 NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-53020C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-53040C0 |
ASC10,AVC10,GSC10 BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-53020C0 |
ASC10,AVC10,GSC10 BLACK |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-53010C0 |
ASC10,AVC10,GSC10 BLACK |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-53051 |
ASC10,AVC10,GSC10 |
1 | ||
| 86219G - BRACKET, SPEAKER | ||||
| 86219-53010 |
ASC10,AVC10,GSC10 |
1 | ||
| Common parts | ||||
| 90119-06885 | ||||
| 90119-06942 | ||||
| 90119-08C98 | ||||
| 90119-08C99 | ||||
| 90119-08D04 | ||||
| 90119-08D05 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 91553-80614 | ||||
| 91631-60816 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8202 | ||||
