AVC10-RCXLH (2018)
Toyota Lexus Rc Series

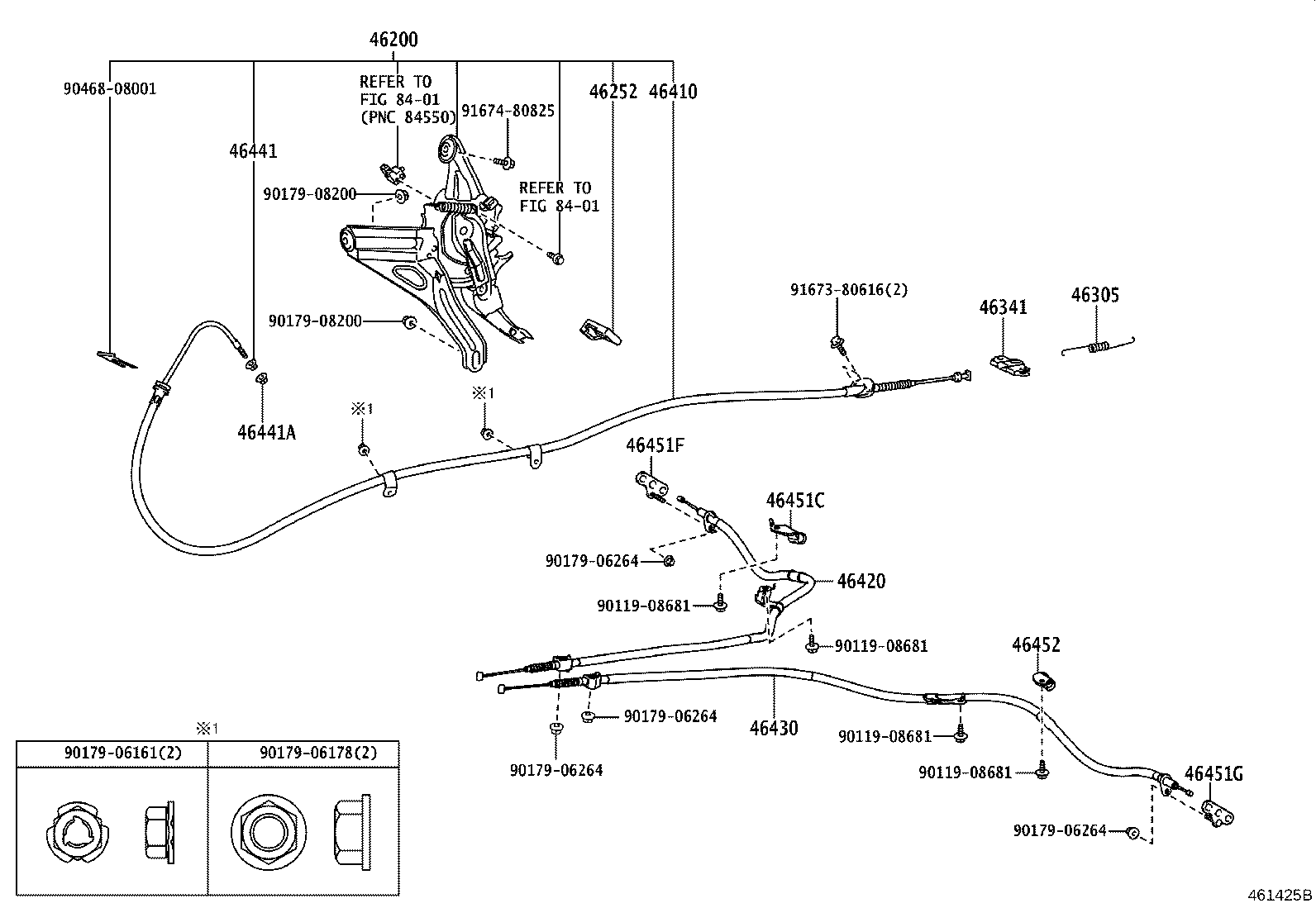

ILLUST NO. 1 OF 2(1409-2009)
ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-53010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-47010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER | ||||
| 46305-53010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22060 |
ASC10,AVC10,GSC10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-53030 |
ASC10,AVC10,GSC10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-24100 |
ASC10,AVC10,GSC10 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
ASC10,AVC10,GSC10 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-30220 |
ASC10,AVC10,GSC10 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-30270 |
ASC10,AVC10,GSC10 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-30280 |
ASC10,AVC10,GSC10 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46451-30230 |
ASC10,AVC10,GSC10 |
1 | ||
| Common parts | ||||
| 90119-08681 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 90179-06264 | ||||
| 90179-08200 | ||||
| 90468-08001 | ||||
| 91673-80616 | ||||
| 91674-80825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1409-2009)
ﾌﾞﾚｰｷｼｭｰ & ﾚﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30250 |
ASC10,AVC10,GSC10 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30250 |
ASC10,AVC10,GSC10 |
1 | ||
| 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR | ||||
| 46505-30230 |
ASC10,AVC10,GSC10 |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-30040 |
ASC10,AVC10,GSC10 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-30040 |
ASC10,AVC10,GSC10 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY014 |
ASC10,AVC10,GSC10 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23052 |
ASC10,AVC10,GSC10 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46530-30040 |
ASC10,AVC10,GSC10 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46530-30040 |
ASC10,AVC10,GSC10 |
1 | ||
| 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH | ||||
| 46601-50050 |
ASC10,AVC10,GSC10 |
1 | ||
| 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 46602-50050 |
ASC10,AVC10,GSC10 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
ASC10,AVC10,GSC10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
ASC10,AVC10,GSC10 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-10020 |
ASC10,AVC10,GSC10 |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
ASC10,AVC10,GSC10 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ASC10,AVC10,GSC10 |
4 | ||
| Common parts | ||||
| 94151-21241 | ||||
(2009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46310A - ACTUATOR ASSY, PARKING BRAKE, RH | ||||
| 46310-33010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46310B - ACTUATOR ASSY, PARKING BRAKE, LH | ||||
| 46310-33010 |
ASC10,AVC10,GSC10 |
1 | ||
| 46310C - SEAL(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AH005 |
ASC10,AVC10,GSC10 |
2 | ||
| 46310C - SEAL(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AH005 |
ASC10,AVC10,GSC10 |
2 | ||
| 46310D - BOLT(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AA702 |
ASC10,AVC10,GSC10 |
4 | ||
| 46310D - BOLT(FOR PARKING BRAKE ACTUATOR) | ||||
| 90015-AA702 |
ASC10,AVC10,GSC10 |
4 | ||
