AVC10-RCXLH (2014)
Toyota Lexus Rc Series

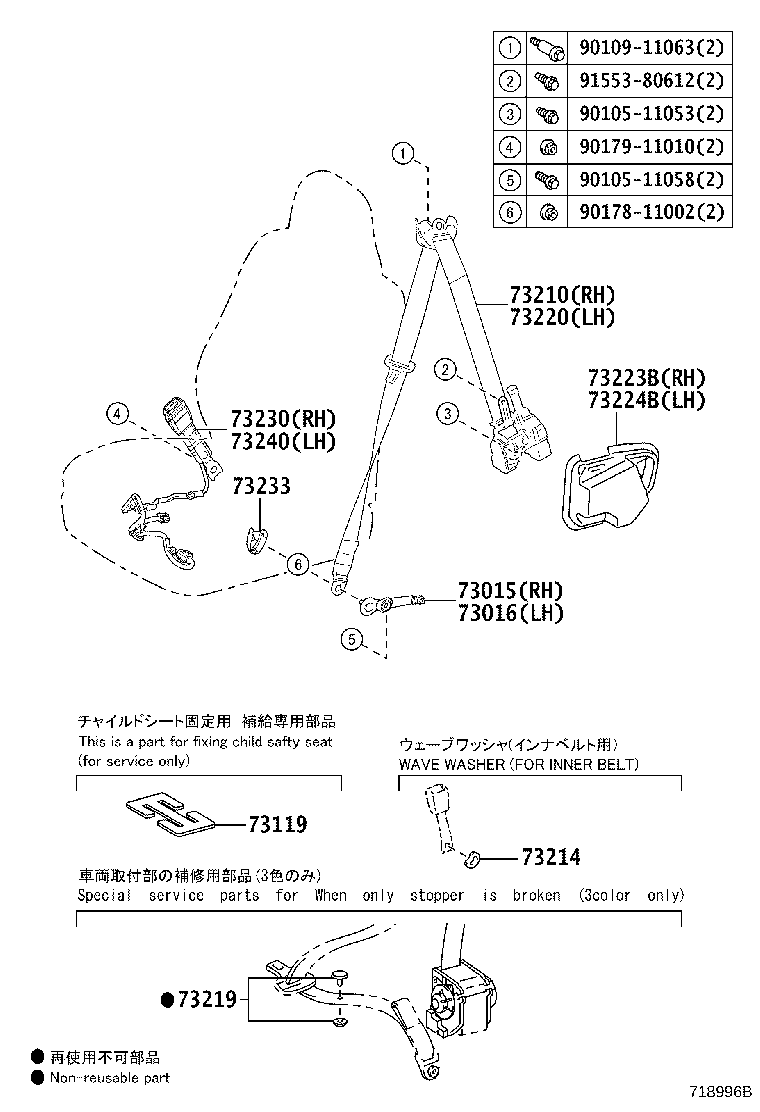

ILLUST NO. 1 OF 2(1409- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-24010 |
AVC10,GSC10 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73015-24010 |
AVC10,GSC10 |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AVC10,GSC10 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-24260C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
AVC10,GSC10 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
AVC10,GSC10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
AVC10,GSC10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
AVC10,GSC10 ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-24200C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-24020 |
AVC10,GSC10 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-24010 |
AVC10,GSC10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-53440C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-53070C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

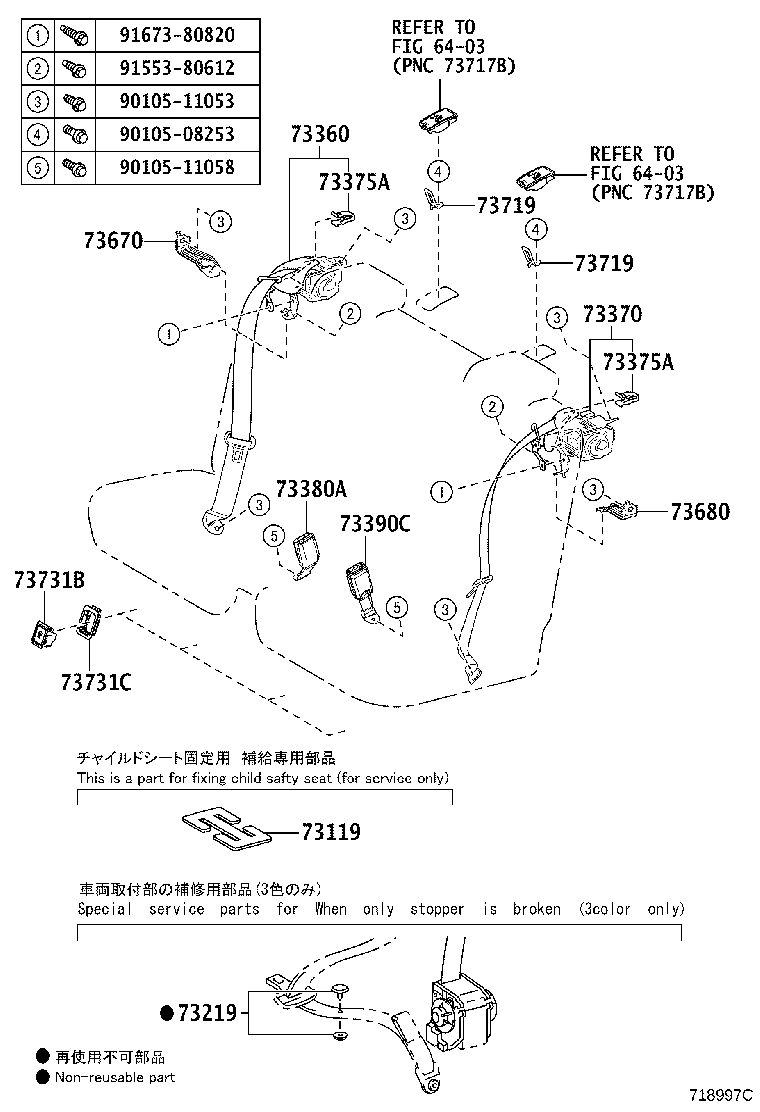

ILLUST NO. 2 OF 2(1409- )
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AVC10,GSC10 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
AVC10,GSC10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
AVC10,GSC10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
AVC10,GSC10 ｸﾞﾚｰ |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-24130F1 |
AVC10,GSC10 CLOVE/BLACK,TRIM5# |
1 | ||
| 73360-24130C0 |
AVC10,GSC10 BLACK/BLACK,TRIM2#,3#,4# |
1 | ||
| 73360-24130B0 |
AVC10,GSC10 MOON STONE/BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-24080F1 |
AVC10,GSC10 CLOVE/BLACK,TRIM5# |
1 | ||
| 73370-24080C0 |
AVC10,GSC10 BLACK/BLACK,TRIM2#,3#,4# |
1 | ||
| 73370-24080B0 |
AVC10,GSC10 MOON STONE/BLACK,TRIM1# |
1 | ||
| 73375A - CLIP, REAR SEAT BELT COVER | ||||
| 90467-05171 |
AVC10,GSC10 |
6 | ||
| 73375A - CLIP, REAR SEAT BELT COVER | ||||
| 90467-05171 |
AVC10,GSC10 |
6 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-24060C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-24060C0 |
AVC10,GSC10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73670 - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, RH | ||||
| 73015-24020 |
AVC10,GSC10 |
1 | ||
| 73680 - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, LH | ||||
| 73016-24020 |
AVC10,GSC10 |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
AVC10,GSC10 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
AVC10,GSC10 |
2 | ||
| 73731B - COVER, CHILD RESTRAINT SEAT, NO.1 | ||||
| 73713-53010B1 |
AVC10,GSC10 MOON STONE,TRIM1# |
4 | ||
| 73713-53010F1 |
AVC10,GSC10 CLOVE,TRIM5# |
4 | ||
| 73713-53010C0 |
AVC10,GSC10 BLACK,TRIM2#,3#,4# |
4 | ||
| 73731C - COVER, CHILD RESTRAINT SEAT, NO.2 | ||||
| 73714-24010 |
AVC10,GSC10 |
4 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 91553-80612 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 6403 | ||||
