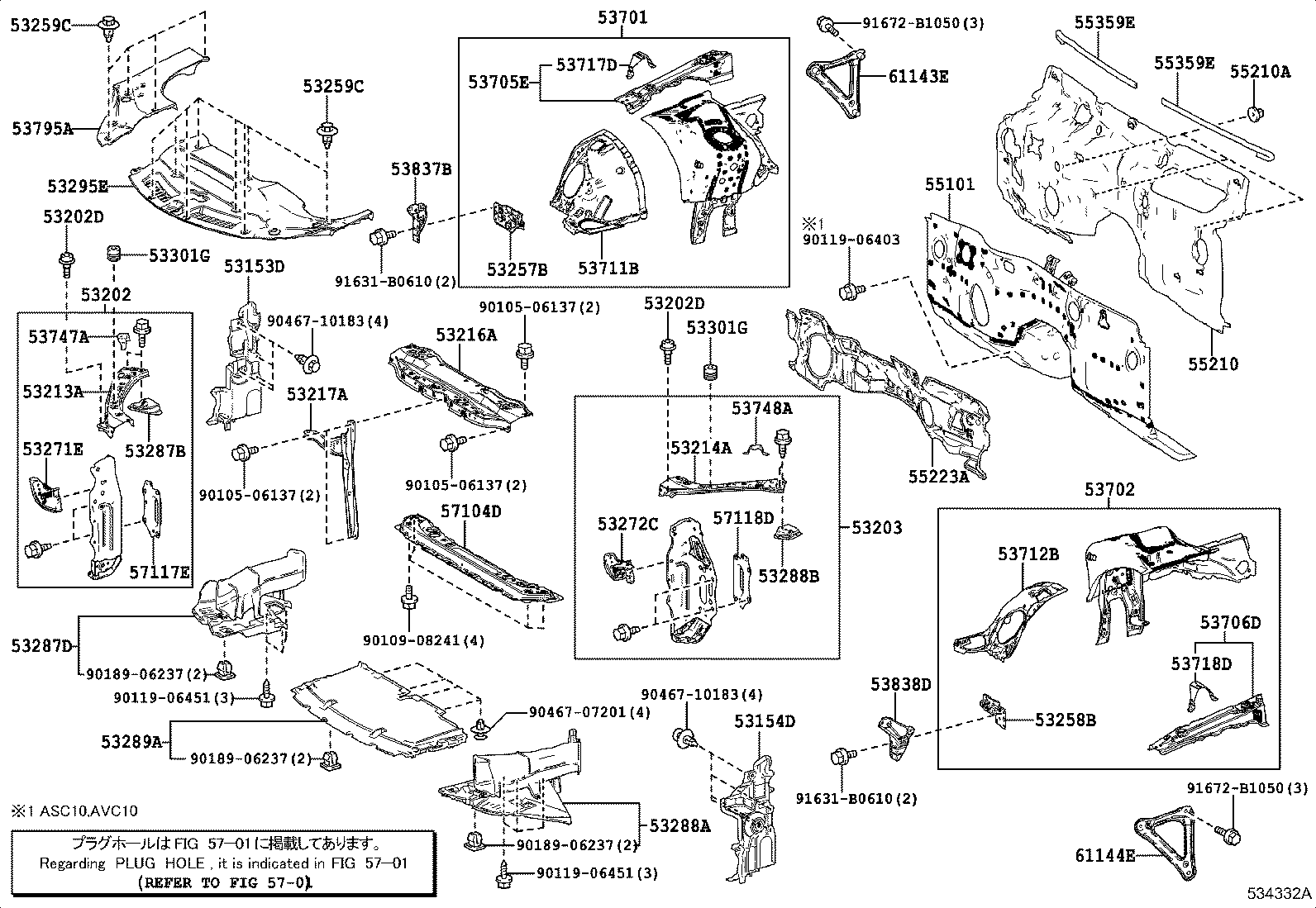

AVC10-RCXLH (2014)
Toyota Lexus Rc Series
(1409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-24030 |
AVC10,GSC10 |
1 | ||
| 53153-24031 |
AVC10,GSC10 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-24030 |
AVC10,GSC10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-24901 |
AVC10,GSC10 |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53119-53021 |
AVC10,GSC10 |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53119-53021 |
AVC10,GSC10 |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-24902 |
AVC10,GSC10 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-24030 |
AVC10,GSC10 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-24030 |
AVC10,GSC10 |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-30260 |
AVC10,GSC10 |
1 | ||
| 53216-30261 |
AVC10,GSC10 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-30904 |
AVC10,GSC10 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-30120 |
AVC10,GSC10 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-30070 |
AVC10,GSC10 |
1 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07217 |
AVC10,GSC10 |
12 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07217 |
AVC10,GSC10 |
12 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53245-24010 |
AVC10,GSC10 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53246-24010 |
AVC10,GSC10 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-24010 |
AVC10,GSC10 |
1 | ||
| 53287D - DUCT, COOL AIR INTAKE | ||||
| 53208-24050 |
AVC10,GSC10 |
1 | ||
| 53288A - DUCT, COOL AIR INTAKE | ||||
| 53209-24030 |
AVC10,GSC10 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-24010 |
AVC10,GSC10 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-24010 |
AVC10,GSC10 |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-24010 |
AVC10,GSC10 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15034 |
AVC10,GSC10 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15034 |
AVC10,GSC10 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-24160 |
AVC10,GSC10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-24140 |
AVC10,GSC10 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-24010 |
AVC10,GSC10 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-24010 |
AVC10,GSC10 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-24050 |
AVC10,GSC10 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-24060 |
AVC10,GSC10 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-24020 |
AVC10,GSC10 |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53717-24020 |
AVC10,GSC10 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-24020 |
AVC10,GSC10 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-24020 |
AVC10,GSC10 |
1 | ||
| 53795A - COVER, ENGINE ROOM, SIDE | ||||
| 53795-24030 |
AVC10,GSC10 |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-24010 |
AVC10,GSC10 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-24040 |
AVC10,GSC10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-53250 |
AVC10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-53120 |
AVC10 |
1 | ||
| 55210-53140 |
AVC10 |
1 | ||
| 55210A - CLIP | ||||
| 90904-67034 |
AVC10,GSC10 |
3 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-24050 |
AVC10,GSC10 |
1 | ||
| 55359E - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55355-30100 |
AVC10,GSC10 |
2 | ||
| 55359E - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55355-30100 |
AVC10,GSC10 |
2 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-30090 |
AVC10,GSC10 |
1 | ||
| 57117E - RETAINER, FRONT BUMPER ARM, RH | ||||
| 57117-30050 |
AVC10,GSC10 |
1 | ||
| 57118D - RETAINER, FRONT BUMPER ARM, LH | ||||
| 57118-30050 |
AVC10,GSC10 |
1 | ||
| 61143E - GUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER RH | ||||
| 61143-24010 |
AVC10,GSC10 |
1 | ||
| 61144E - GUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER LH | ||||
| 61144-24010 |
AVC10,GSC10 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-08241 | ||||
| 90119-06403 | ||||
| 90119-06451 | ||||
| 90189-06237 | ||||
| 90467-07201 | ||||
| 90467-10183 | ||||
| 91631-B0610 | ||||
| 91672-B1050 | ||||
| Linked diagrams | ||||
| 5701 | ||||
