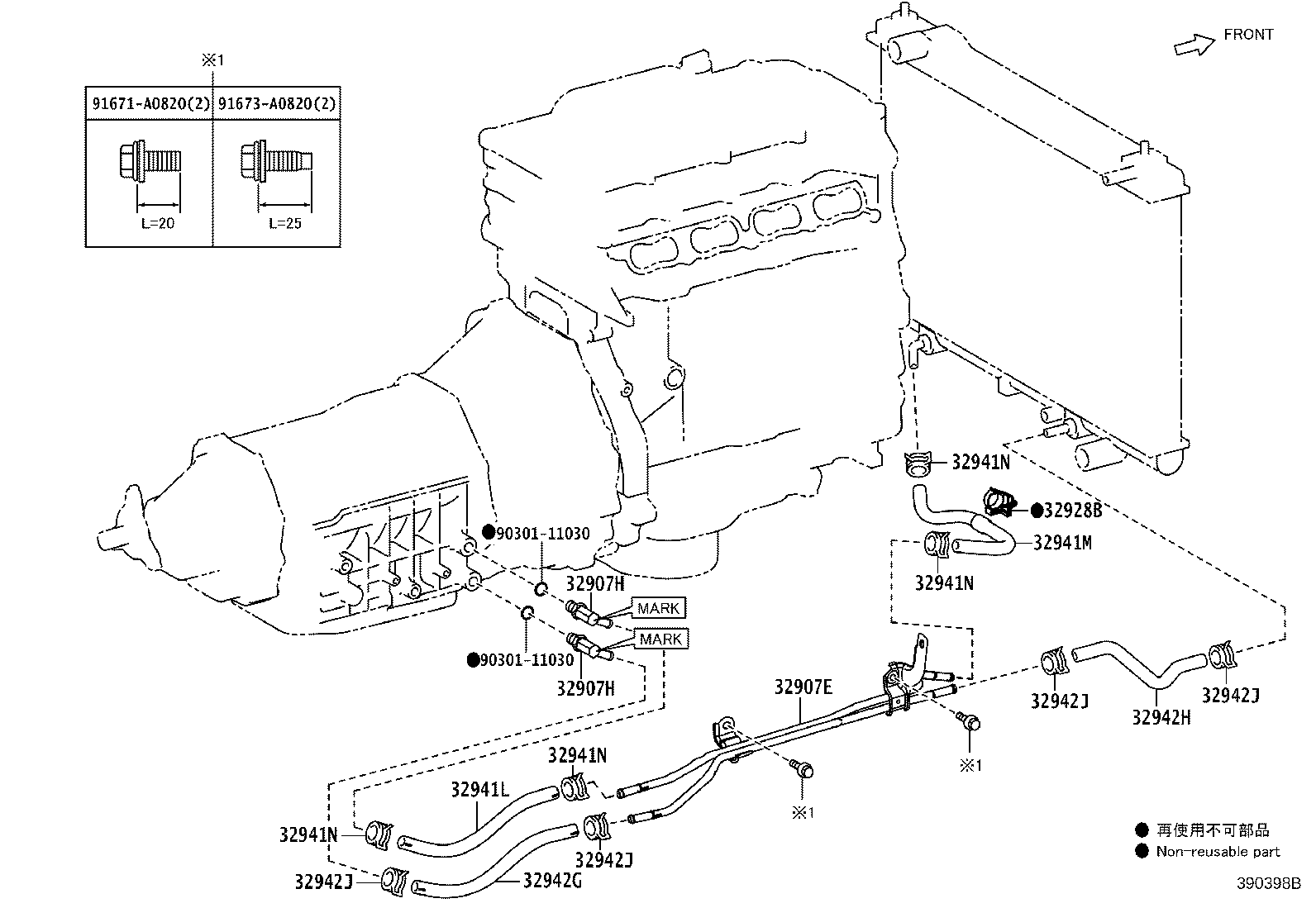

Toyota Lexus rc series AVC10 OIL COOLER & TUBE (HV OR EV OR FCV)

Part #	Description	Period	Qty
32907E - TUBE SUB-ASSY, OIL COOLER W/O HOSE
32907-30110	AVC10	09/2014 - 10/2015	1
32928B - CLAMP, FLEXIBLE HOSE, NO.1
32928-30120	AVC10	09/2014 - 10/2015	1
32941L - HOSE, OIL COOLER INLET, NO.1
32941-30340	AVC10	09/2014 - 10/2015	1
32941M - HOSE, OIL COOLER INLET, NO.2
32941-30360	AVC10	09/2014 - 10/2015	1
32941N - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32941N - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32941N - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32941N - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32942G - HOSE, OIL COOLER OUTLET, NO.1
32942-30230	AVC10	09/2014 - 10/2015	1
32942H - HOSE, OIL COOLER OUTLET, NO.2
32942-30250	AVC10	09/2014 - 10/2015	1
32942J - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32942J - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32942J - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
32942J - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	AVC10	09/2014 - 10/2015	4
Common parts
90301-11030
91671-A0820
91673-A0820

AVC10-RCXLH (2014)
