AVC10-RCXLH (2014)

Toyota Lexus Rc Series

Production Sep 2014 - Oct 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )2ARFSE

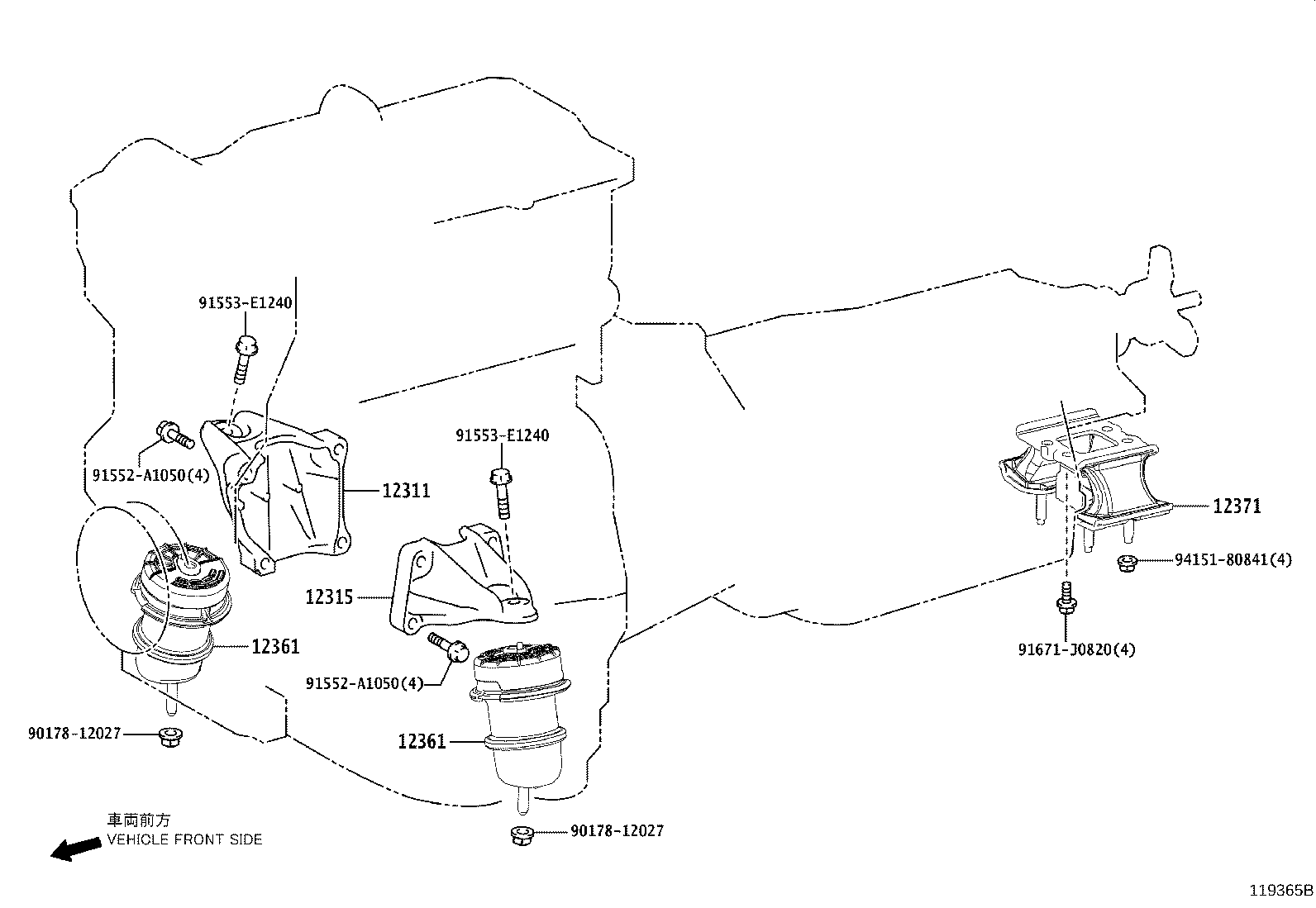

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9017812027 9017812027 91552A1050 91552A1050 91553E1240 91553E1240 91671J0820 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-36100

2ARFSE..AVC10

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-36020

2ARFSE..AVC10

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-36140

2ARFSE..AVC10

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-36140

2ARFSE..AVC10

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31270

2ARFSE..AVC10

 1
Common parts
90178-12027
91552-A1050
91553-E1240
91671-J0820
94151-80841
