ASC10-RCZLZ (2018)
Toyota Lexus Rc Series
(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-24050 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-24050 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15055 |
ASC10,AVC10,GSC10 長さ=100,寒冷地仕様 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15085 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-24060 |
ASC10,AVC10,GSC10 長さ=2800,寒冷地仕様 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 82711-16830 |
ASC10,AVC10,GSC10 寒冷地仕様 |
7 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 82711-16830 |
ASC10,AVC10,GSC10 寒冷地仕様 |
7 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 90075-90512 |
ASC10,AVC10,GSC10 寒冷地仕様 |
10 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 89348-50050 |
ASC10,AVC10,GSC10 寒冷地仕様 |
4 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-24040B0 |
ASC10,AVC10,GSC10 寒冷地仕様,MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-24040C0 |
ASC10,AVC10,GSC10 寒冷地仕様,BLACK,212,右側 |
1 | ||
| 85354-24040E0 |
ASC10,AVC10,GSC10 寒冷地仕様,LAVA ORANGE CS.,4W7,左側 |
1 | ||
| 85353-24040J1 |
ASC10,AVC10,GSC10 寒冷地仕様,SPARKLING METEOR ME.,8X9,右側 |
1 | ||
| 85353-24040A0 |
ASC10,AVC10,GSC10 寒冷地仕様,WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-24040J1 |
ASC10,AVC10,GSC10 寒冷地仕様,SPARKLING METEOR ME.,8X9,左側 |
1 | ||
| 85353-24040D0 |
ASC10,AVC10,GSC10 寒冷地仕様,RADIANT RED CONTRAST LAYE,3T5,右側 |
1 | ||
| 85354-24040B0 |
ASC10,AVC10,GSC10 寒冷地仕様,MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-24040A0 |
ASC10,AVC10,GSC10 寒冷地仕様,WHITE NOVA GF.,083,左側 |
1 | ||
| 85353-24040B1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC TITANIUM,1J7,右側 |
1 | ||
| 85353-24040F0 |
ASC10,AVC10,GSC10 寒冷地仕様,NAPLES YELLOW CONTRAST LA,5C1,右側 |
1 | ||
| 85353-24040A1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC QUARTZ,085,右側 |
1 | ||
| 85354-24040C0 |
ASC10,AVC10,GSC10 寒冷地仕様,BLACK,212,左側 |
1 | ||
| 85354-24040A1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC QUARTZ,085,左側 |
1 | ||
| 85354-24040B1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC TITANIUM,1J7,左側 |
1 | ||
| 85354-24040J0 |
ASC10,AVC10,GSC10 寒冷地仕様,HEAT BLUE CONTRAST LAYERI,8X1,左側 |
1 | ||
| 85353-24040E0 |
ASC10,AVC10,GSC10 寒冷地仕様,LAVA ORANGE CS.,4W7,右側 |
1 | ||
| 85353-24040B2 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC CHROME,1L1,右側 |
1 | ||
| 85353-24040J0 |
ASC10,AVC10,GSC10 寒冷地仕様,HEAT BLUE CONTRAST LAYERI,8X1,右側 |
1 | ||
| 85353-24040C1 |
ASC10,AVC10,GSC10 寒冷地仕様,GRAPHITE BLACK GF.,223,右側 |
1 | ||
| 85354-24040D0 |
ASC10,AVC10,GSC10 寒冷地仕様,RADIANT RED CONTRAST LAYE,3T5,左側 |
1 | ||
| 85353-24040J2 |
ASC10,AVC10,GSC10 寒冷地仕様,CELESTIAL BLUE GF.,8Y6,右側 |
1 | ||
| 85354-24040F0 |
ASC10,AVC10,GSC10 寒冷地仕様,NAPLES YELLOW CONTRAST LA,5C1,左側 |
1 | ||
| 85354-24040J2 |
ASC10,AVC10,GSC10 寒冷地仕様,CELESTIAL BLUE GF.,8Y6,左側 |
1 | ||
| 85354-24040B2 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC CHROME,1L1,左側 |
1 | ||
| 85354-24040C1 |
ASC10,AVC10,GSC10 寒冷地仕様,GRAPHITE BLACK GF.,223,左側 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-24040B0 |
ASC10,AVC10,GSC10 寒冷地仕様,MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-24040C0 |
ASC10,AVC10,GSC10 寒冷地仕様,BLACK,212,右側 |
1 | ||
| 85354-24040E0 |
ASC10,AVC10,GSC10 寒冷地仕様,LAVA ORANGE CS.,4W7,左側 |
1 | ||
| 85353-24040J1 |
ASC10,AVC10,GSC10 寒冷地仕様,SPARKLING METEOR ME.,8X9,右側 |
1 | ||
| 85353-24040A0 |
ASC10,AVC10,GSC10 寒冷地仕様,WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-24040J1 |
ASC10,AVC10,GSC10 寒冷地仕様,SPARKLING METEOR ME.,8X9,左側 |
1 | ||
| 85353-24040D0 |
ASC10,AVC10,GSC10 寒冷地仕様,RADIANT RED CONTRAST LAYE,3T5,右側 |
1 | ||
| 85354-24040B0 |
ASC10,AVC10,GSC10 寒冷地仕様,MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-24040A0 |
ASC10,AVC10,GSC10 寒冷地仕様,WHITE NOVA GF.,083,左側 |
1 | ||
| 85353-24040B1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC TITANIUM,1J7,右側 |
1 | ||
| 85353-24040F0 |
ASC10,AVC10,GSC10 寒冷地仕様,NAPLES YELLOW CONTRAST LA,5C1,右側 |
1 | ||
| 85353-24040A1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC QUARTZ,085,右側 |
1 | ||
| 85354-24040C0 |
ASC10,AVC10,GSC10 寒冷地仕様,BLACK,212,左側 |
1 | ||
| 85354-24040A1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC QUARTZ,085,左側 |
1 | ||
| 85354-24040B1 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC TITANIUM,1J7,左側 |
1 | ||
| 85354-24040J0 |
ASC10,AVC10,GSC10 寒冷地仕様,HEAT BLUE CONTRAST LAYERI,8X1,左側 |
1 | ||
| 85353-24040E0 |
ASC10,AVC10,GSC10 寒冷地仕様,LAVA ORANGE CS.,4W7,右側 |
1 | ||
| 85353-24040B2 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC CHROME,1L1,右側 |
1 | ||
| 85353-24040J0 |
ASC10,AVC10,GSC10 寒冷地仕様,HEAT BLUE CONTRAST LAYERI,8X1,右側 |
1 | ||
| 85353-24040C1 |
ASC10,AVC10,GSC10 寒冷地仕様,GRAPHITE BLACK GF.,223,右側 |
1 | ||
| 85354-24040D0 |
ASC10,AVC10,GSC10 寒冷地仕様,RADIANT RED CONTRAST LAYE,3T5,左側 |
1 | ||
| 85353-24040J2 |
ASC10,AVC10,GSC10 寒冷地仕様,CELESTIAL BLUE GF.,8Y6,右側 |
1 | ||
| 85354-24040F0 |
ASC10,AVC10,GSC10 寒冷地仕様,NAPLES YELLOW CONTRAST LA,5C1,左側 |
1 | ||
| 85354-24040J2 |
ASC10,AVC10,GSC10 寒冷地仕様,CELESTIAL BLUE GF.,8Y6,左側 |
1 | ||
| 85354-24040B2 |
ASC10,AVC10,GSC10 寒冷地仕様,SONIC CHROME,1L1,左側 |
1 | ||
| 85354-24040C1 |
ASC10,AVC10,GSC10 寒冷地仕様,GRAPHITE BLACK GF.,223,左側 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17009 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17012 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17010 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 90075-17009 |
ASC10,AVC10,GSC10 寒冷地仕様 |
2 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 90075-17009 |
ASC10,AVC10,GSC10 寒冷地仕様 |
2 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17013 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85361C - BRACKET, WASHER | ||||
| 85361-24100 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85362 - BRACKET, WASHER, NO.2 | ||||
| 85362-24100 |
ASC10,AVC10,GSC10 寒冷地仕様 |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15059 |
ASC10,AVC10,GSC10 長さ=80,寒冷地仕様 |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15064 |
ASC10,AVC10,GSC10 長さ=200,寒冷地仕様 |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 90075-91002 | ||||
| 90159-60603 | ||||
| 90183-06019 | ||||

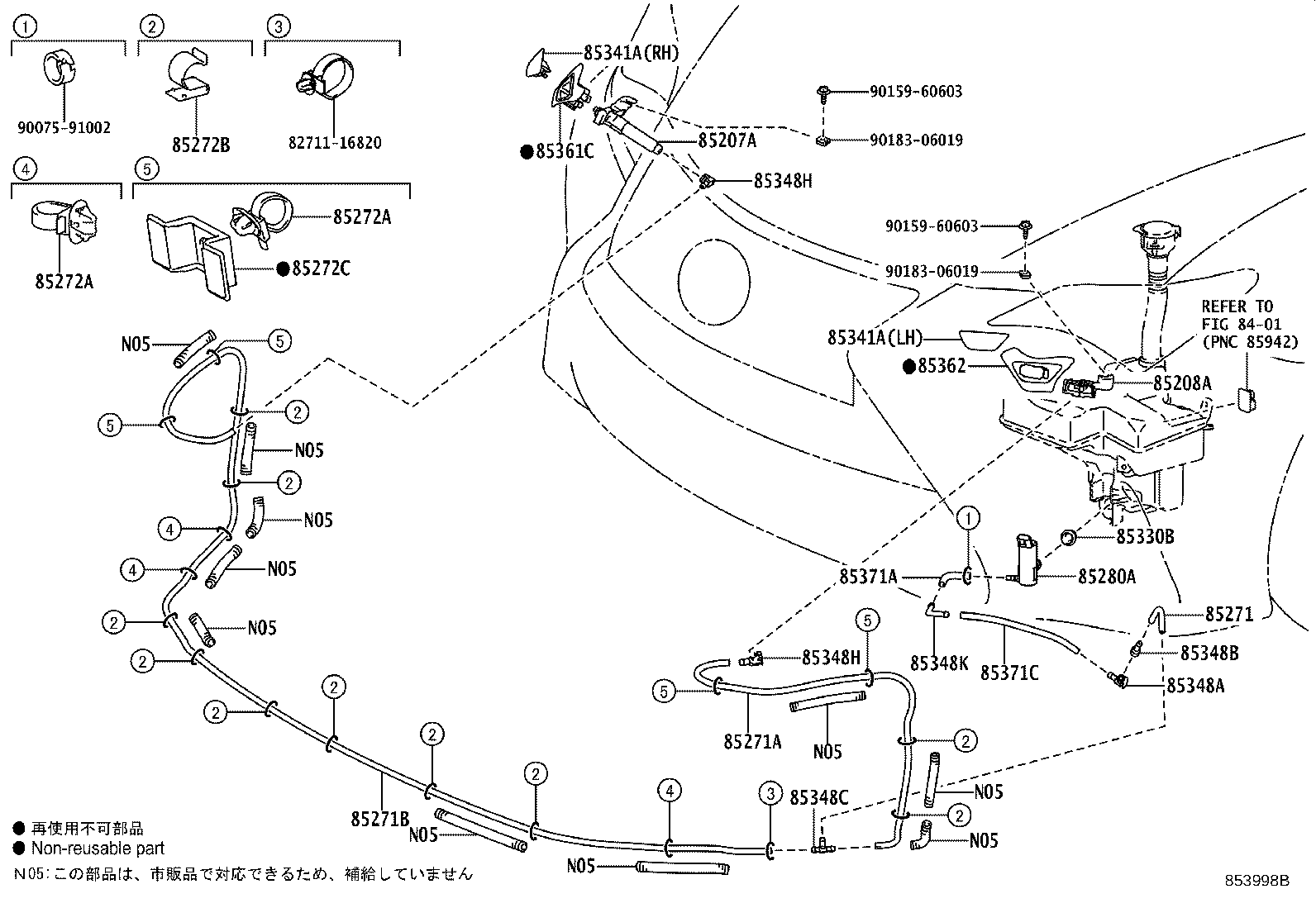

| Linked diagrams | ||||
| 8401 | ||||
