ASC10-RCZLZ (2015)

Toyota Lexus Rc Series

Production Oct 2015 - Oct 2018
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409-1810)

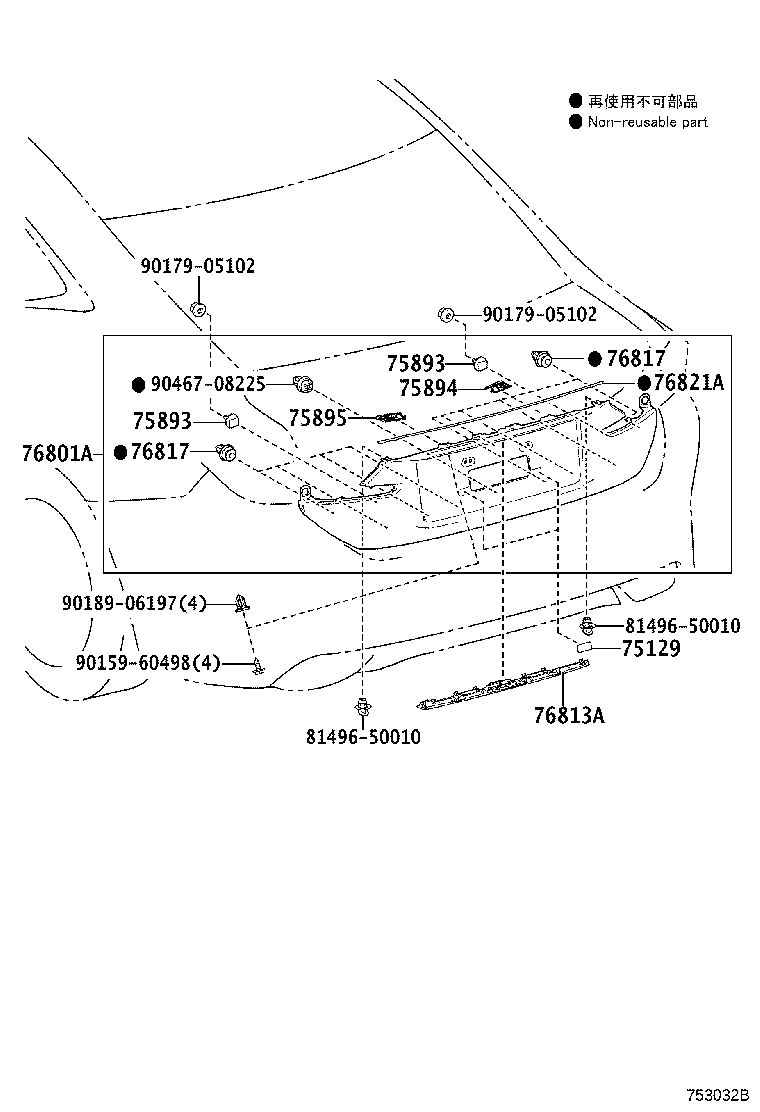

Click highlighted areas on diagram

diagram 75129 75893 75893 75894 75895 76801A 76813A 76817 76817 76821A 8149650010 8149650010 9015960498 9017905102 9017905102 9018906197 9046708225
Part # Description Qty Price
75129 - CUSHION, REAR LICENSE PLATE
75129-30010

ASC10,AVC10,GSC10

 2
75893 - RETAINER, LUGGAGE DOOR MOULDING
64189-30010

ASC10,AVC10,GSC10

 2
75893 - RETAINER, LUGGAGE DOOR MOULDING
64189-30010

ASC10,AVC10,GSC10

 2
75894 - RETAINER, LUGGAGE DOOR MOULDING, NO.2
75894-24010

ASC10,AVC10,GSC10

 1
75895 - RETAINER, LUGGAGE DOOR MOULDING, NO.3
75895-24030

ASC10,AVC10,GSC10

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-24050B0

ASC10,AVC10,GSC10

MERCURY GRAY MC.,1H9

 1
76801-24050C1

ASC10,AVC10,GSC10

STARLIGHT BLACK GF.,217

 1
76801-24050A2

ASC10,AVC10,GSC10

SONIC QUARTZ,085

 1
76801-24050A1

ASC10,AVC10,GSC10

WHITE NOVA GF.,083

 1
76801-24050B1

ASC10,AVC10,GSC10

PLATINUM SILVER ME.,1J4

 1
76801-24050C0

ASC10,AVC10,GSC10

BLACK,212

 1
76801-24050D0

ASC10,AVC10,GSC10

RED,3T5

 1
76801-24050E0

ASC10,AVC10,GSC10

ORANGE,4W7

 1
76801-24050J0

ASC10,AVC10,GSC10

BLUE,8X1

 1
76801-24050B2

ASC10,AVC10,GSC10

SONIC TITANIUM,1J7

 1
76801-24050C2

ASC10,AVC10,GSC10

GRAPHITE BLACK GF.,223

 1
76801-24050F0

ASC10,AVC10,GSC10

NAPLES YELLOW,5C1

 1
76813A - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.3
76813-24010

ASC10,AVC10,GSC10

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-09206

ASC10,AVC10,GSC10

 9
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-09206

ASC10,AVC10,GSC10

 9
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-24010

ASC10,AVC10,GSC10

 1
Common parts
81496-50010
90159-60498
90179-05102
90189-06197
90467-08225
