Toyota Lexus rc f USC10 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
84780A - CONTROLLER ASSY, REMOTE OPERATION
84780-24070	USC10	09/2014 - 11/2017	1
84780-24120	USC10	11/2017 - 02/2019	1
86110B - MULTI-DISPLAY ASSY
86110-53011	USC10 DENSO	08/2015 - 06/2017	1
86110-53012	USC10 DENSO	06/2017 - 11/2017	1
86110-24230	USC10 DENSO	11/2017 - 02/2019	1
86110-53010	USC10 DENSO	09/2014 - 07/2015	1
86117K - BRACKET, MULTI-DISPLAY, NO.1
86117-53081	USC10	11/2017 - 02/2019	1
86117-53010	USC10	09/2014 - 11/2017	1
86134A - PARTS, MULTI-DISPLAY
86134-53060	USC10	11/2017 - 02/2019	1
86134-53030	USC10	09/2014 - 11/2017	1
86255A - CASE, MICROPHONE, NO.1
86255-78010C1	USC10 有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)& F 10th Anniversary,BLACK,TRIM8#	05/2018 - 02/2019	1
86255-78010C1	USC10 BLACK,TRIM0#,2#,3#,4#,8#	11/2017 - 02/2019	1
86271 - DISC, DISC PLAYER
86271-24161	USC10	09/2014 - 03/2015	1
86271-30A75	USC10	09/2016 - 04/2017	1
86271-30A73	USC10	09/2015 - 03/2016	1
86271-30A74	USC10	04/2016 - 09/2016	1
86271-30A76	USC10	04/2017 - 09/2017	1
86271-30A77	USC10	09/2017 - 11/2017	1
86271-30A72	USC10	04/2015 - 08/2015	1
86273B - ADAPTER, DISC PLAYER
86273-53010	USC10	09/2014 - 11/2017	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-11010	USC10 NO.2	11/2017 - 02/2019	1
86730-53080	USC10 NO.1	09/2014 - 11/2017	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-11010	USC10 NO.2	11/2017 - 02/2019	1
86730-53080	USC10 NO.1	09/2014 - 11/2017	1
86841 - COMPUTER, NAVIGATION
86840-78020	USC10	11/2017 - 03/2018	1
86840-78021	USC10	04/2018 - 09/2018	1
86840-33340	USC10	09/2018 - 02/2019	1
86842 - WIRE, NAVIGATION, NO.1
86842-24210	USC10	11/2017 - 02/2019	1
86860 - ANTENNA ASSY, NAVIGATION
86880-53010	USC10	09/2014 - 02/2019	1
86860 - ANTENNA ASSY, NAVIGATION
86880-53010	USC10	09/2014 - 02/2019	1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010	USC10	09/2014 - 02/2019	1
Common parts
90153-50010
90159-50327
91553-80614
93568-55014

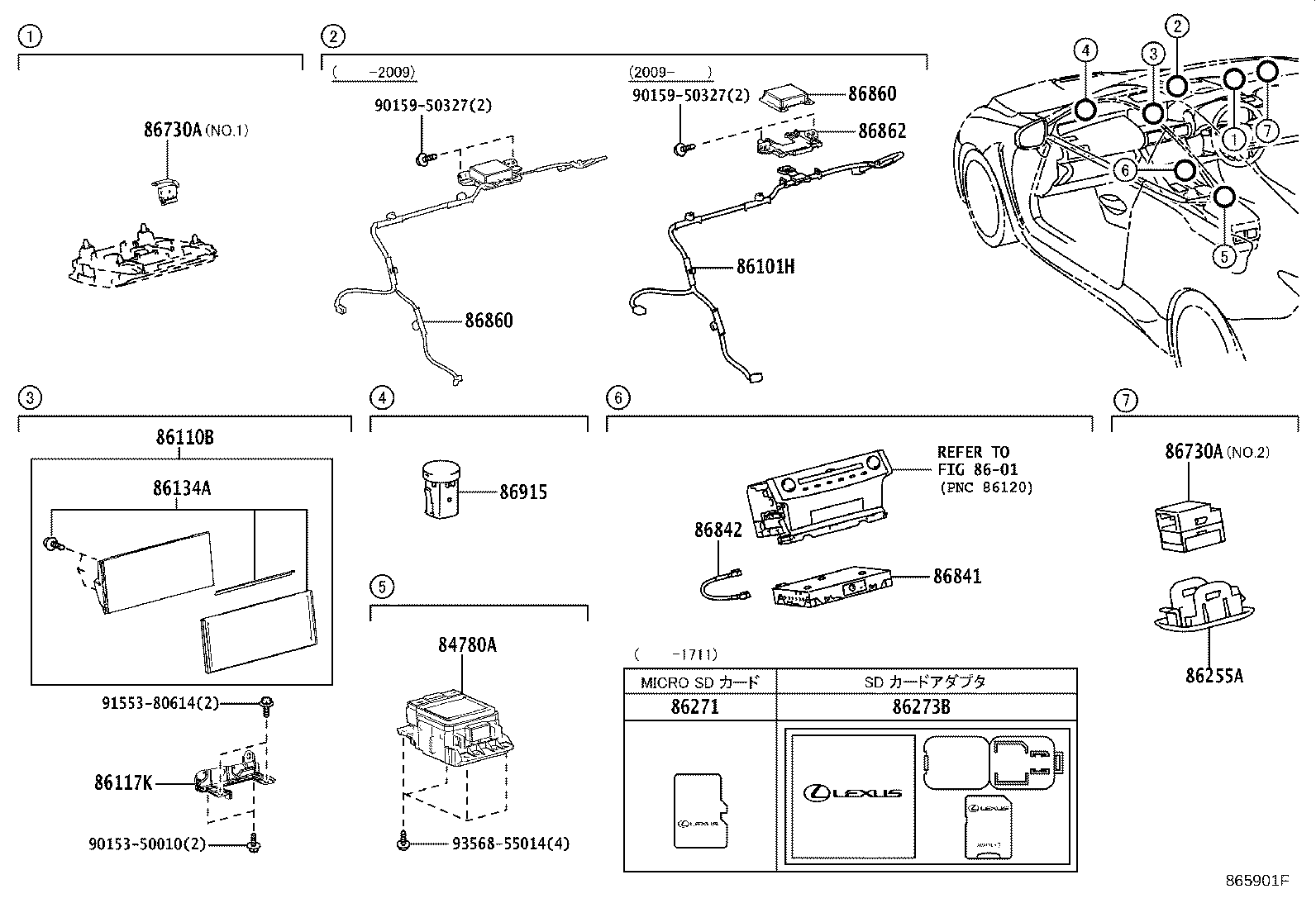

Linked diagrams
8601

USC10-FCZRH (2014)

(1409- )
