USC10-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409-1902)

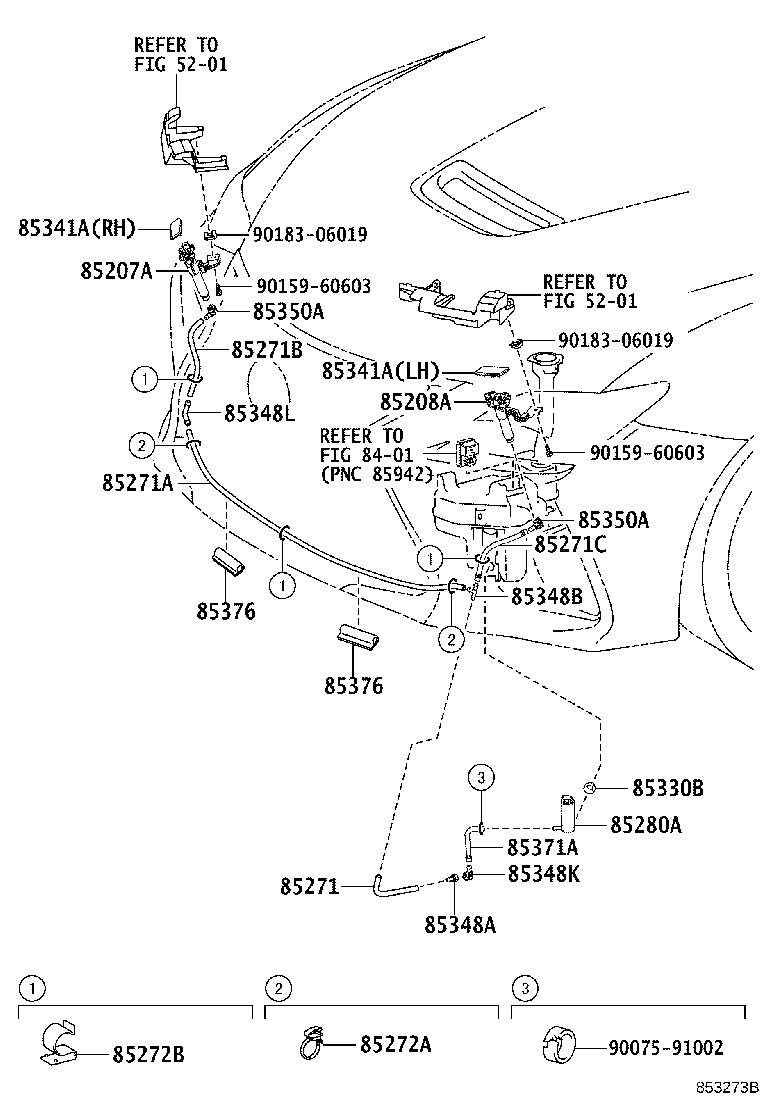

Click highlighted areas on diagram

diagram 5201 5201 8401 85207A 85208A 85271 85271A 85271B 85271C 85272A 85272B 85280A 85330B 85341A 85341A 85348A 85348B 85348K 85348L 85350A 85350A 85371A 85376 85376 9007591002 9015960603 9015960603 9018306019 9018306019
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-24030

USC10

寒冷地仕様

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-24030

USC10

寒冷地仕様

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15097

USC10

長さ=140,寒冷地仕様

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15078

USC10

長さ=1200,寒冷地仕様

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15098

USC10

長さ=260,寒冷地仕様

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90075-15098

USC10

長さ=260,寒冷地仕様

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
82711-45020

USC10

寒冷地仕様

 2
85272B - CLAMP, HEADLAMP CLEANER, NO.2
90075-90512

USC10

寒冷地仕様

 3
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-47010

USC10

寒冷地仕様

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

USC10

寒冷地仕様

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-24020C1

USC10

寒冷地仕様,STARLIGHT BLACK GF.,217,右側

 1
85353-24020C0

USC10

寒冷地仕様,BLACK,212,右側

 1
85354-24020B1

USC10

寒冷地仕様,SONIC SILVER,1J2,左側

 1
85354-24020C1

USC10

寒冷地仕様,STARLIGHT BLACK GF.,217,左側

 1
85353-24020E0

USC10

寒冷地仕様,ORANGE,4W7,右側

 1
85353-24020B0

USC10

寒冷地仕様,MERCURY GRAY MC.,1H9,右側

 1
85353-24020A0

USC10

寒冷地仕様,WHITE NOVA GF.,083,右側

 1
85354-24020J0

USC10

寒冷地仕様,BLUE,8X1,左側

 1
85353-24020B1

USC10

寒冷地仕様,SONIC SILVER,1J2,右側

 1
85353-24020J0

USC10

寒冷地仕様,BLUE,8X1,右側

 1
85354-24020D0

USC10

寒冷地仕様,RED,3T5,左側

 1
85354-24020C0

USC10

寒冷地仕様,BLACK,212,左側

 1
85353-24020C2

USC10

寒冷地仕様,GRAPHITE BLACK GF.,223,右側

 1
85354-24020E0

USC10

寒冷地仕様,ORANGE,4W7,左側

 1
85354-24020F0

USC10

寒冷地仕様,NAPLES YELLOW,5C1,左側

 1
85354-24020B0

USC10

寒冷地仕様,MERCURY GRAY MC.,1H9,左側

 1
85354-24020A0

USC10

寒冷地仕様,WHITE NOVA GF.,083,左側

 1
85353-24020D0

USC10

寒冷地仕様,RED,3T5,右側

 1
85353-24020B3

USC10

寒冷地仕様,MARCURY GRAY MC.MATT,1K7,右側

 1
85353-24020B2

USC10

寒冷地仕様,SONIC TITANIUM,1J7,右側

 1
85354-24020B2

USC10

寒冷地仕様,SONIC TITANIUM,1J7,左側

 1
85354-24020C2

USC10

寒冷地仕様,GRAPHITE BLACK GF.,223,左側

 1
85354-24020B3

USC10

寒冷地仕様,MARCURY GRAY MC.MATT,1K7,左側

 1
85353-24020F0

USC10

寒冷地仕様,NAPLES YELLOW,5C1,右側

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-24020C1

USC10

寒冷地仕様,STARLIGHT BLACK GF.,217,右側

 1
85353-24020C0

USC10

寒冷地仕様,BLACK,212,右側

 1
85354-24020B1

USC10

寒冷地仕様,SONIC SILVER,1J2,左側

 1
85354-24020C1

USC10

寒冷地仕様,STARLIGHT BLACK GF.,217,左側

 1
85353-24020E0

USC10

寒冷地仕様,ORANGE,4W7,右側

 1
85353-24020B0

USC10

寒冷地仕様,MERCURY GRAY MC.,1H9,右側

 1
85353-24020A0

USC10

寒冷地仕様,WHITE NOVA GF.,083,右側

 1
85354-24020J0

USC10

寒冷地仕様,BLUE,8X1,左側

 1
85353-24020B1

USC10

寒冷地仕様,SONIC SILVER,1J2,右側

 1
85353-24020J0

USC10

寒冷地仕様,BLUE,8X1,右側

 1
85354-24020D0

USC10

寒冷地仕様,RED,3T5,左側

 1
85354-24020C0

USC10

寒冷地仕様,BLACK,212,左側

 1
85353-24020C2

USC10

寒冷地仕様,GRAPHITE BLACK GF.,223,右側

 1
85354-24020E0

USC10

寒冷地仕様,ORANGE,4W7,左側

 1
85354-24020F0

USC10

寒冷地仕様,NAPLES YELLOW,5C1,左側

 1
85354-24020B0

USC10

寒冷地仕様,MERCURY GRAY MC.,1H9,左側

 1
85354-24020A0

USC10

寒冷地仕様,WHITE NOVA GF.,083,左側

 1
85353-24020D0

USC10

寒冷地仕様,RED,3T5,右側

 1
85353-24020B3

USC10

寒冷地仕様,MARCURY GRAY MC.MATT,1K7,右側

 1
85353-24020B2

USC10

寒冷地仕様,SONIC TITANIUM,1J7,右側

 1
85354-24020B2

USC10

寒冷地仕様,SONIC TITANIUM,1J7,左側

 1
85354-24020C2

USC10

寒冷地仕様,GRAPHITE BLACK GF.,223,左側

 1
85354-24020B3

USC10

寒冷地仕様,MARCURY GRAY MC.MATT,1K7,左側

 1
85353-24020F0

USC10

寒冷地仕様,NAPLES YELLOW,5C1,右側

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90075-17012

USC10

寒冷地仕様

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
90075-17010

USC10

寒冷地仕様

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17009

USC10

寒冷地仕様

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
90075-17013

USC10

寒冷地仕様

 1
85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3
90075-17009

USC10

寒冷地仕様

 2
85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3
90075-17009

USC10

寒冷地仕様

 2
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90075-15054

USC10

長さ=120,寒冷地仕様

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85277-53060

USC10

寒冷地仕様

 2
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85277-53060

USC10

寒冷地仕様

 2
Common parts
90075-91002
90159-60603
90183-06019
Linked diagrams
5201
