USC10-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

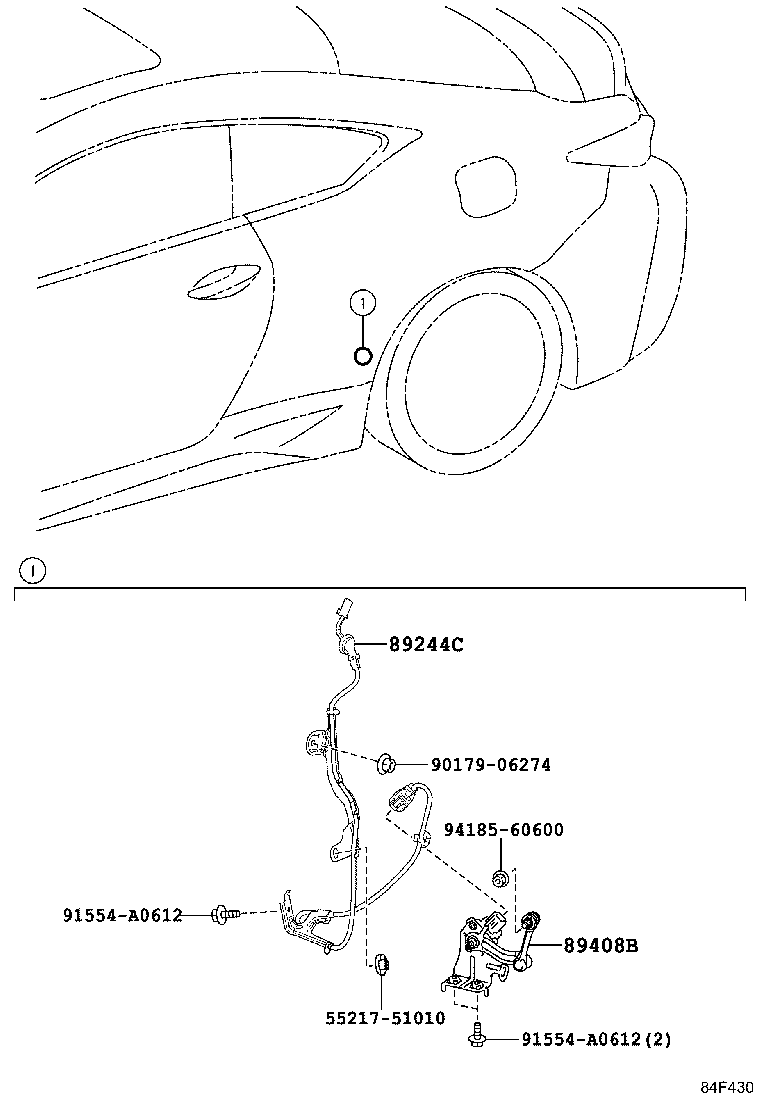

Click highlighted areas on diagram

diagram 5521751010 89244C 89408B 9017906274 91554A0612 91554A0612 9418560600
Part # Description Qty Price
89244C - WIRE, ABSORBER CONTROL
89244-24030

USC10

 1
89244-24010

USC10

 1
89408B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89408-24070

USC10

 1
Common parts
55217-51010
90179-06274
91554-A0612
94185-60600
