USC10-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

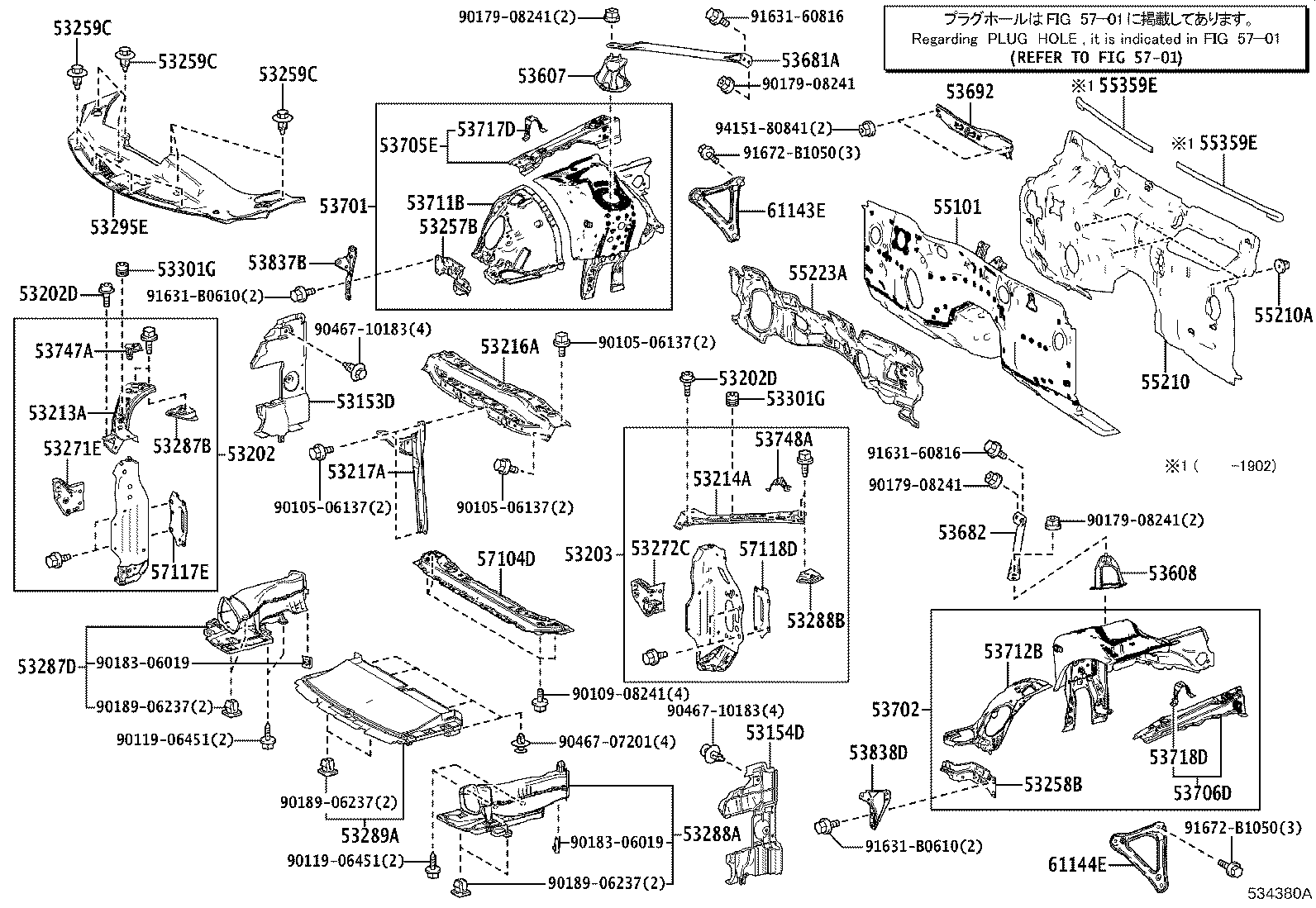

Click highlighted areas on diagram

diagram 53153D 53154D 53202 53202D 53202D 53203 53213A 53214A 53216A 53217A 53257B 53258B 53259C 53259C 53259C 53271E 53272C 53287B 53287D 53288A 53288B 53289A 53295E 53301G 53301G 53607 53608 53681A 53682 53692 53701 53702 53705E 53706D 53711B 53712B 53717D 53718D 53747A 53748A 53837B 53838D 55101 55210 55210A 55223A 55359E 55359E 5701 57104D 57117E 57118D 61143E 61144E 9010506137 9010506137 9010506137 9010908241 9011906451 9011906451 9017908241 9017908241 9017908241 9017908241 9018306019 9018306019 9018906237 9018906237 9018906237 9046707201 9046710183 9046710183 9163160816 9163160816 91631B0610 91631B0610 91672B1050 91672B1050 9415180841
Part # Description Qty Price
53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-24040

USC10

 1
53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-24040

USC10

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-24902

USC10

 1
53202D - CUSHION, RADIATOR SUPPORT
53119-53021

USC10

 2
53202D - CUSHION, RADIATOR SUPPORT
53119-53021

USC10

 2
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-24903

USC10

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-24040

USC10

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-24040

USC10

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-24060

USC10

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-30905

USC10

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-24020

USC10

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-24020

USC10

 1
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07217

USC10

 10
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07217

USC10

 10
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07217

USC10

 10
53271E - BRACKET, HEADLAMP MOUNTING, RH
53245-24020

USC10

 1
53272C - BRACKET, HEADLAMP MOUNTING, LH
53246-24020

USC10

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-24010

USC10

 1
53287D - DUCT, COOL AIR INTAKE
53207-24040

USC10

 1
53288A - DUCT, COOL AIR INTAKE
53208-24060

USC10

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-24010

USC10

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-24020

USC10

 1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-24020

USC10

 1
53295-24021

USC10

 1
53301G - CUSHION, HOOD BUMPER
90541-15034

USC10

 2
53301G - CUSHION, HOOD BUMPER
90541-15034

USC10

 2
53607 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53607-24010

USC10

 1
53683-24020

USC10

 1
53608 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
53608-24010

USC10

 1
53684-24020

USC10

 1
53681A - BRACE, FRONT SUSPENSION UPPER TO COWL, RH
53681-24010

USC10

 1
53682 - BRACE, FRONT SUSPENSION UPPER TO COWL, LH
53682-24010

USC10

 1
53692 - BRACKET, FRONT SUSPENSION UPPER BRACE
53692-24010

USC10

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-24180

USC10

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-24160

USC10

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-24020

USC10

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-24020

USC10

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-24050

USC10

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-24060

USC10

 1
53717D - GUSSET, FENDER APRON, RH
53717-24031

USC10

 1
53718D - GUSSET, FENDER APRON, LH
53717-24031

USC10

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-24030

USC10

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-24030

USC10

 1
53837B - BRACKET, FRONT SIDE PANEL, NO.2
53837-24020

USC10

 1
53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH
53838-24050

USC10

 1
55101 - PANEL SUB-ASSY, DASH
55101-53190

USC10

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-53100

USC10

 1
55210A - CLIP
90904-67034

USC10

 3
55223A - INSULATOR, DASH PANEL, OUTER
55223-24070

USC10

 1
55359E - CUSHION, INSTRUMENT PANEL, NO.5
55355-30100

USC10

 2
55359E - CUSHION, INSTRUMENT PANEL, NO.5
55355-30100

USC10

 2
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-30090

USC10

 1
57117E - RETAINER, FRONT BUMPER ARM, RH
57117-30050

USC10

 1
57118D - RETAINER, FRONT BUMPER ARM, LH
57118-30050

USC10

 1
61143E - GUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER RH
61143-24010

USC10

 1
61144E - GUSSET, FRONT BODY PILLAR DOOR OPENING, UPPER LH
61144-24010

USC10

 1
Common parts
90105-06137
90109-08241
90119-06451
90179-08241
90183-06019
90189-06237
90467-07201
90467-10183
91631-60816
91631-B0610
91672-B1050
94151-80841
