USC10-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

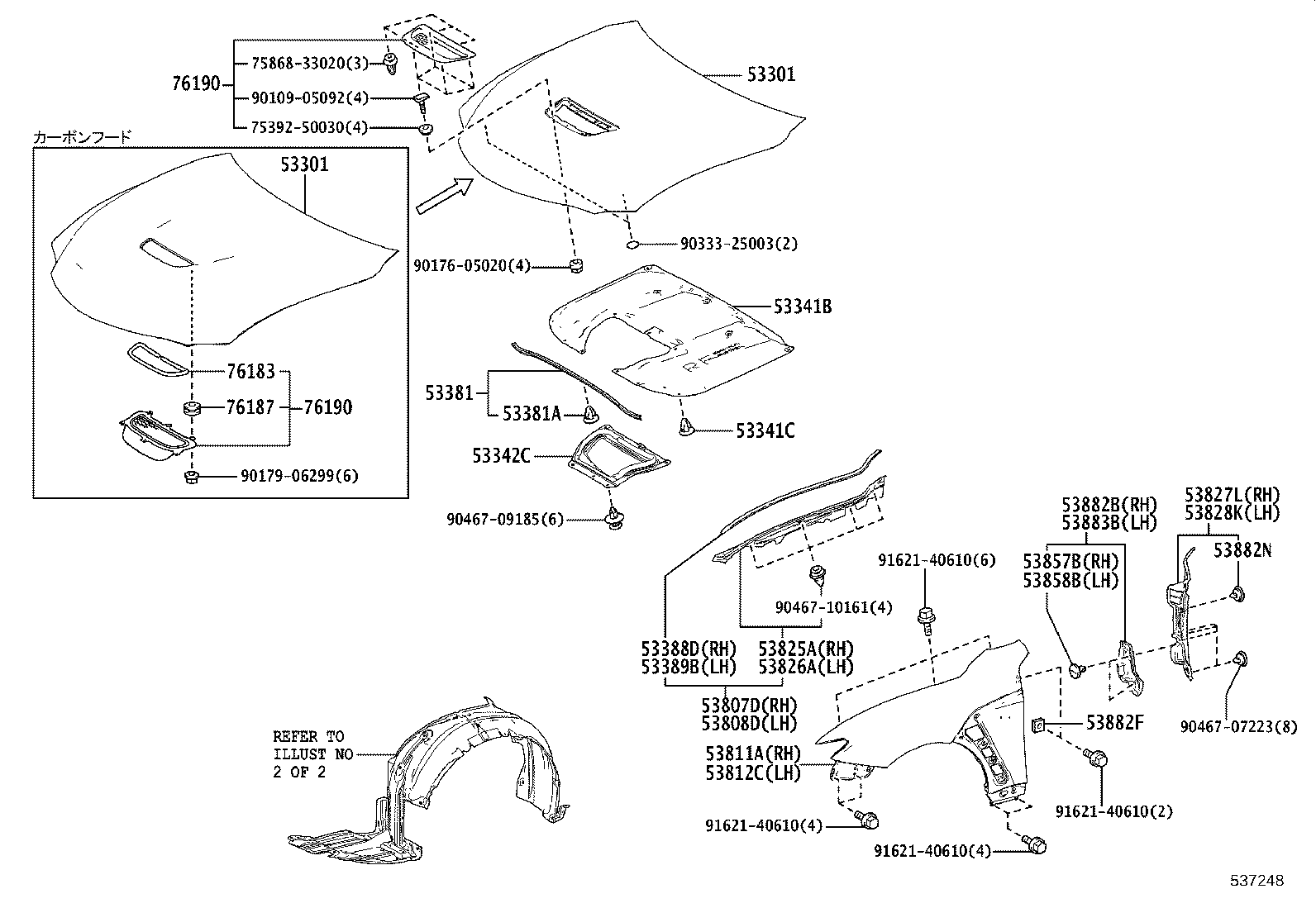

ILLUST NO. 1 OF 2(1409-1903)

Click highlighted areas on diagram

diagram 53301 53301 53341B 53341C 53342C 53381 53381A 53388D 53389B 53807D 53808D 53811A 53812C 53825A 53826A 53827L 53828K 53857B 53858B 53882B 53882F 53882N 53883B 7539250030 7586833020 76183 76187 76190 76190 9010905092 9017605020 9017906299 9033325003 9046707223 9046709185 9046710161 9162140610 9162140610 9162140610 9162140610
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-24100

USC10

 1
53301-24090

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 1
53301 - HOOD SUB-ASSY
53301-24100

USC10

 1
53301-24090

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 1
53341B - INSULATOR, HOOD
53341-24110

USC10

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

USC10

 9
53342C - INSULATOR, HOOD, NO.2
53342-24010

USC10

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-24060

USC10

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

USC10

 9
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-24040

USC10

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-24040

USC10

 1
53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-24020

USC10

 1
53807-24021

USC10

 1
53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-24020

USC10

 1
53808-24021

USC10

 1
53811A - PANEL, FRONT FENDER, RH
53811-24200

USC10

 1
53812C - PANEL, FRONT FENDER, LH
53812-24200

USC10

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-24030

USC10

 1
53825-24031

USC10

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-24020

USC10

 1
53826-24021

USC10

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-24010

USC10

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-24010

USC10

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

USC10

 2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

USC10

 2
53882B - SEAL, FRONT FENDER, RH
53882-24030

USC10

 1
53882F - SEAL, FRONT FENDER
53882-33060

USC10

 1
53882N - CLIP(FOR FRONT FENDER SEAL)
90467-07223

USC10

 2
90467-06205C0

USC10

BLACK

 2
53883B - SEAL, FRONT FENDER, LH
53883-24010

USC10

 1
76183 - PROTECTOR, HOOD BULGE, NO.1
76183-24010

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 1
76187 - RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76187-24010

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 6
76190 - PLATE ASSY, HOOD BULGE
76190-24010B2

USC10

SONIC TITANIUM,1J7

 1
76190-24010B1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),SONIC SILVER,1J2

 1
76190-24010B0

USC10

MERCURY GRAY MC.,1H9

 1
76190-24010C1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),STARLIGHT BLACK GF.,217

 1
76190-24010B1

USC10

SONIC SILVER,1J2

 1
76190-24010C1

USC10

STARLIGHT BLACK GF.,217

 1
76190-24010C0

USC10

BLACK,212

 1
76190-24010E0

USC10

ORANGE,4W7

 1
76190-24010D0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),RED,3T5

 1
76190-24010C0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),BLACK,212

 1
76190-24010C2

USC10

GRAPHITE BLACK GF.,223

 1
76190-24010A0

USC10

WHITE NOVA GF.,083

 1
76190-24010D0

USC10

RED,3T5

 1
76190-24010A0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),WHITE NOVA GF.,083

 1
76190-24010B2

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),SONIC TITANIUM,1J7

 1
76190-24010F0

USC10

NAPLES YELLOW,5C1

 1
76190-24010F0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),NAPLES YELLOW,5C1

 1
76190-24010J0

USC10

BLUE,8X1

 1
76190-24020

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 1
76190-24010E0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),ORANGE,4W7

 1
76190-24010C1

USC10

STARLIGHT BLACK GF.,217

 1
76190-24010B0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),MERCURY GRAY MC.,1H9

 1
76190-24010J0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),BLUE,8X1

 1
76190-24010C1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),STARLIGHT BLACK GF.,217

 1
76190-24010C2

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),GRAPHITE BLACK GF.,223

 1
76190 - PLATE ASSY, HOOD BULGE
76190-24010A0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),WHITE NOVA GF.,083

 1
76190-24010B2

USC10

SONIC TITANIUM,1J7

 1
76190-24010B1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),SONIC SILVER,1J2

 1
76190-24010B0

USC10

MERCURY GRAY MC.,1H9

 1
76190-24010C1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),STARLIGHT BLACK GF.,217

 1
76190-24010B1

USC10

SONIC SILVER,1J2

 1
76190-24010C1

USC10

STARLIGHT BLACK GF.,217

 1
76190-24010C0

USC10

BLACK,212

 1
76190-24010E0

USC10

ORANGE,4W7

 1
76190-24010D0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),RED,3T5

 1
76190-24010C0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),BLACK,212

 1
76190-24010C2

USC10

GRAPHITE BLACK GF.,223

 1
76190-24010A0

USC10

WHITE NOVA GF.,083

 1
76190-24010D0

USC10

RED,3T5

 1
76190-24010B2

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),SONIC TITANIUM,1J7

 1
76190-24010F0

USC10

NAPLES YELLOW,5C1

 1
76190-24010F0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),NAPLES YELLOW,5C1

 1
76190-24010J0

USC10

BLUE,8X1

 1
76190-24020

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ)

 1
76190-24010E0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),ORANGE,4W7

 1
76190-24010C1

USC10

STARLIGHT BLACK GF.,217

 1
76190-24010B0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),MERCURY GRAY MC.,1H9

 1
76190-24010J0

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),BLUE,8X1

 1
76190-24010C1

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),STARLIGHT BLACK GF.,217

 1
76190-24010C2

USC10

有り(ｶｰﾎﾞﾝﾌｰﾄﾞ & ｶｰﾎﾞﾝﾙｰﾌ),GRAPHITE BLACK GF.,223

 1
Common parts
75392-50030
75868-33020
90109-05092
90176-05020
90179-06299
90333-25003
90467-07223
90467-09185
90467-10161
91621-40610

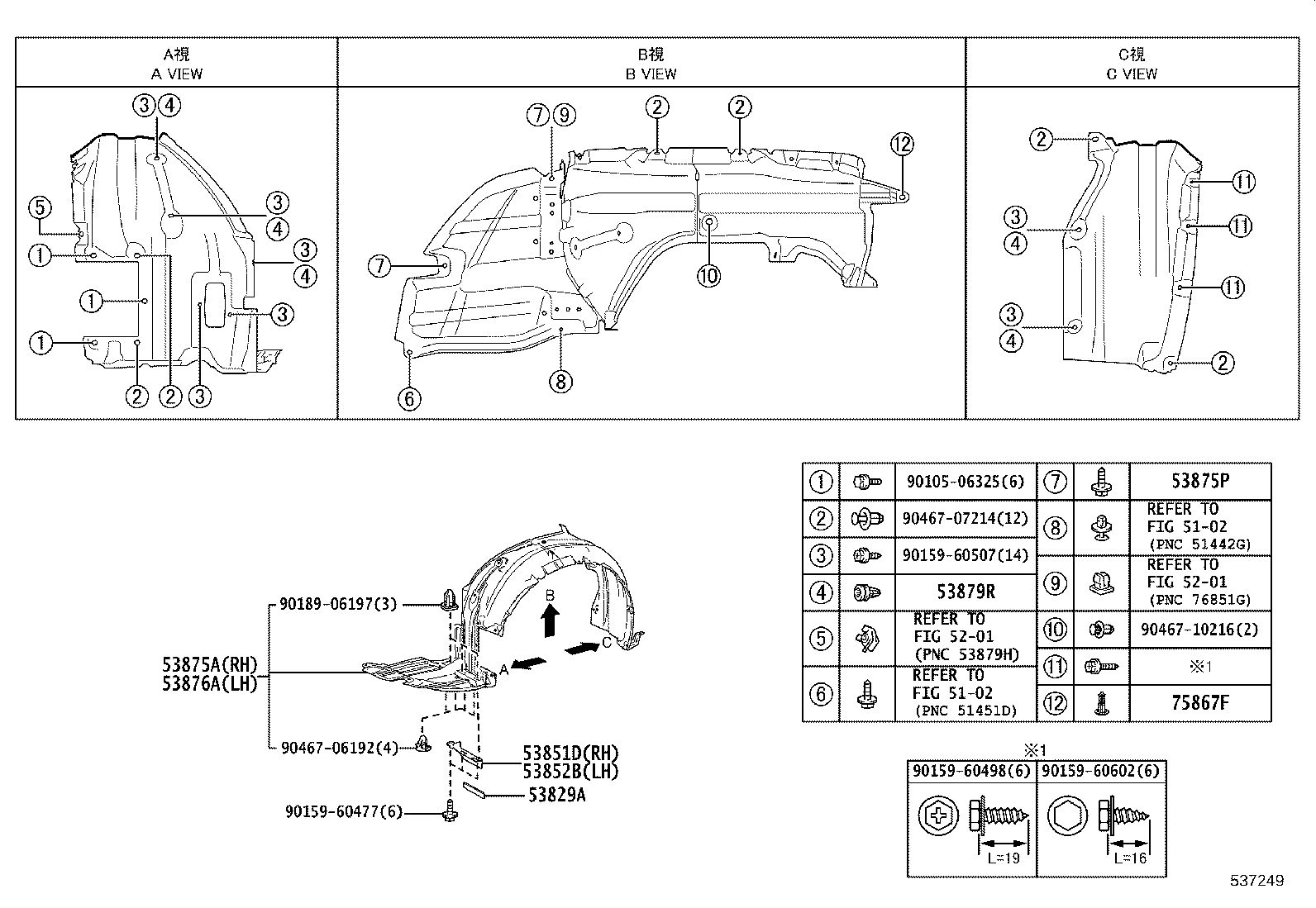

ILLUST NO. 2 OF 2(1409-1903)

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 5102 5102 5201 5201 53829A 53851D 53852B 53875A 53875P 53876A 53879R 75867F 9010506325 9015960477 9015960498 9015960507 9015960602 9018906197 9046706192 9046707214 9046710216
Part # Description Qty Price
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-24020

USC10

 2
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-24030

USC10

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-24030

USC10

 1
53875A - LINER, FRONT FENDER, RH
53805-24060

USC10

 1
53875P - SCREW, NO.1
90159-60477

USC10

 4
53876A - LINER, FRONT FENDER, LH
53806-24070

USC10

 1
53879R - RETAINER, FRONT FENDER LINER
53879-50010

USC10

 10
75867F - CLIP, ROCKER PANEL MOULDING
75867-30120

USC10

 2
Common parts
90105-06325
90159-60477
90159-60498
90159-60507
90159-60602
90189-06197
90467-06192
90467-07214
90467-10216
Linked diagrams
5102
5201
