Toyota Lexus rc f USC10 STEERING WHEEL

USC10-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019

Engine 2URGSE

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

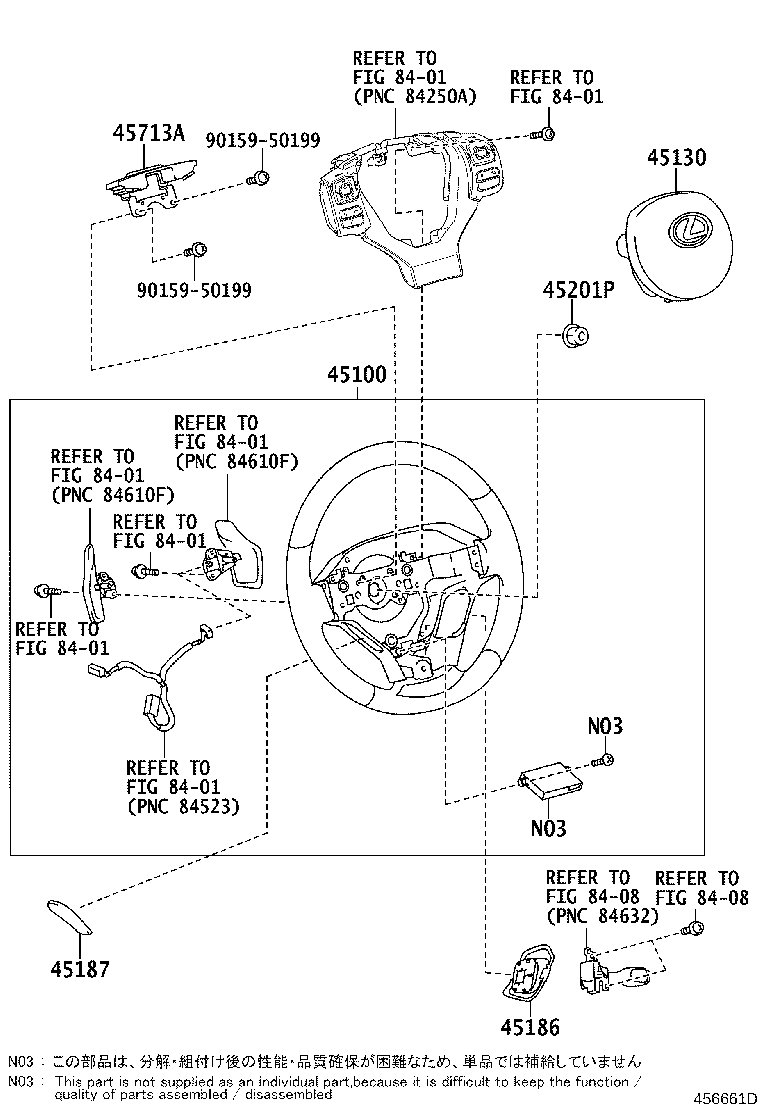

(1409-1711)

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-30F60C1	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/BLUE/ECRU,TRIM0#,2#,3#	11/2017 - 02/2019	1
45100-24391C6	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	03/2015 - 11/2017	1
45100-30F60C0	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	11/2017 - 02/2019	1
45100-24390C6	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	09/2014 - 02/2015	1
45100-24391C4	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM0#,2#,3#	03/2015 - 11/2017	1
45100-30F90C0	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ, F 10th Anniversary,BLACK/BLUE/WHITE/ECRU,TRIM8#	05/2018 - 02/2019	1
45100-24390C4	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM0#,2#,3#	09/2014 - 02/2015	1
45130 - BUTTON ASSY, HORN
45130-53100C0	USC10 BLACK,TRIM0#,2#,3#,4#,80	05/2018 - 02/2019	1
45130-53100J0	USC10 F 10th Anniversary,BLUE,TRIM80	05/2018 - 02/2019	1
45130-53100C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 05/2018	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-53030C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 02/2019	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-53020C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 02/2019	1
45201P - NUT, STEERING WHEEL SET
90179-12071	USC10	09/2014 - 02/2019	1
45713A - DAMPER, STEERING SHAKE
45713-53011	USC10	02/2015 - 02/2019	1
45713-53010	USC10	09/2014 - 01/2015	1
Common parts
90159-50199
Linked diagrams
8401
8408

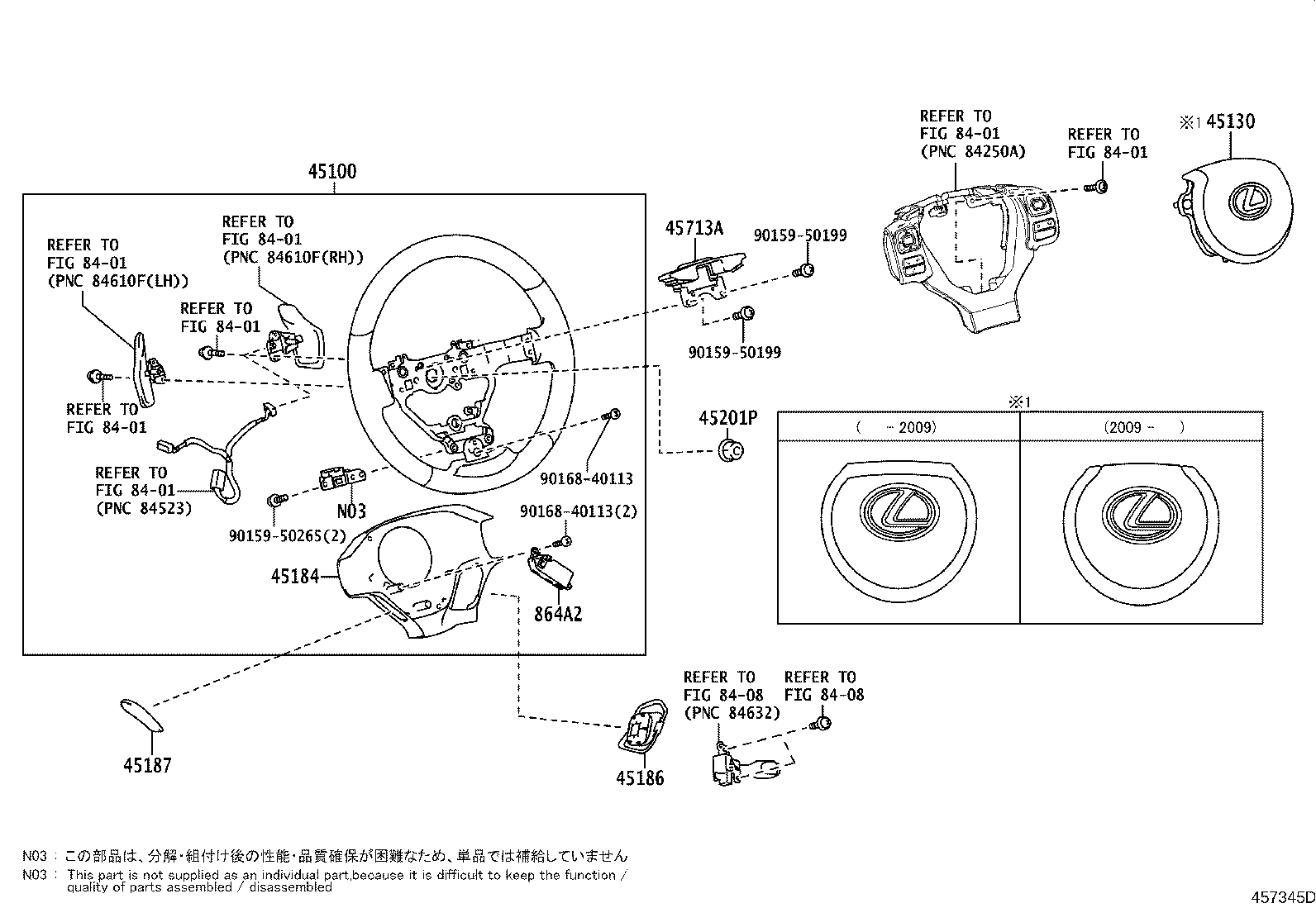

(1711- )

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-30F60C1	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/BLUE/ECRU,TRIM0#,2#,3#	11/2017 - 02/2019	1
45100-24391C6	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	03/2015 - 11/2017	1
45100-30F60C0	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	11/2017 - 02/2019	1
45100-24390C6	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/ORANGE/BLUE,TRIM4#	09/2014 - 02/2015	1
45100-24391C4	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM0#,2#,3#	03/2015 - 11/2017	1
45100-30F90C0	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ, F 10th Anniversary,BLACK/BLUE/WHITE/ECRU,TRIM8#	05/2018 - 02/2019	1
45100-24390C4	USC10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM0#,2#,3#	09/2014 - 02/2015	1
45130 - BUTTON ASSY, HORN
45130-53100C0	USC10 BLACK,TRIM0#,2#,3#,4#,80	05/2018 - 02/2019	1
45130-53100J0	USC10 F 10th Anniversary,BLUE,TRIM80	05/2018 - 02/2019	1
45130-53100C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 05/2018	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-53040C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	11/2017 - 02/2019	1
45184-53040C0	USC10 F 10th Anniversary,BLACK,TRIM8#	05/2018 - 02/2019	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-53030C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 02/2019	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-53020C0	USC10 BLACK,TRIM0#,2#,3#,4#,8#	09/2014 - 02/2019	1
45201P - NUT, STEERING WHEEL SET
90179-12071	USC10	09/2014 - 02/2019	1
45713A - DAMPER, STEERING SHAKE
45713-53011	USC10	02/2015 - 02/2019	1
45713-53010	USC10	09/2014 - 01/2015	1
864A2 - COMPUTER, STEERING VIBRATION
864A1-48011	USC10	11/2017 - 02/2019	1
Common parts
90159-50199
90159-50265
90168-40113
Linked diagrams
8401
8408

USC10-FCZRH (2014)

(1409-1711)

(1711- )
