Toyota Lexus rc f USC10 CYLINDER BLOCK

Part #	Description	Period	Qty
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-38020	2URGSE..USC10	09/2014 - 02/2019	1
11382 - RETAINER, ENGINE OIL SEAL, REAR
11381-38020	2URGSE..USC10	09/2014 - 02/2019	1
11382A - SEAL, OIL(FOR OIL SEAL RETAINER)
90311-95013	2URGSE..USC10	09/2014 - 02/2019	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80815	2URGSE..USC10	09/2014 - 04/2015	1
11401-80832	2URGSE..USC10	04/2015 - 02/2019	1
11401G - SENSOR, CRANK POSITION
90919-05071	2URGSE..USC10	09/2014 - 02/2019	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2URGSE..USC10	09/2014 - 02/2019	2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2URGSE..USC10	09/2014 - 02/2019	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	2URGSE..USC10 長さ=12,外径=4.0	09/2014 - 02/2019	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2URGSE..USC10 長さ=18,外径=8	09/2014 - 02/2019	4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-38010	2URGSE..USC10	09/2014 - 02/2019	2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-38010	2URGSE..USC10	09/2014 - 02/2019	2
11452 - GUIDE, OIL LEVEL GAGE
11452-38070	2URGSE..USC10	12/2015 - 10/2017	1
11452-38071	2URGSE..USC10	11/2017 - 02/2019	1
11452-38120	2URGSE..USC10	09/2014 - 12/2015	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-09028	2URGSE..USC10	09/2014 - 02/2019	1
12101 - PAN SUB-ASSY, OIL
12111-38160	2URGSE..USC10	12/2015 - 02/2019	1
12111-38140	2URGSE..USC10	09/2014 - 12/2015	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2URGSE..USC10	09/2014 - 02/2019	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2URGSE..USC10	09/2014 - 02/2019	1
12101C - RING, O(FOR OIL PAN)
90301-35006	2URGSE..USC10	09/2014 - 02/2019	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-38021	2URGSE..USC10	09/2014 - 02/2019	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-38110	2URGSE..USC10	09/2014 - 02/2019	1
12258A - GASKET, OIL RETURN PIPE
12269-38010	2URGSE..USC10	09/2014 - 02/2019	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-38090	2URGSE..USC10	09/2014 - 02/2019	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	2URGSE..USC10	09/2014 - 02/2019	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-38030	2URGSE..USC10	09/2014 - 02/2019	4
Common parts
90110-06018
90119-06938
90119-06939
90126-06028
90210-09020
91551-80616
91552-K1030
91553-80614
91673-A0614
94151-80600
Linked diagrams
1201
1302
8401

Part #	Description	Period	Qty
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129	2URGSE..USC10	09/2014 - 02/2019	2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2URGSE..USC10	09/2014 - 02/2019	2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02165	2URGSE..USC10 NO.2:ｲﾗｽﾄ参照	09/2014 - 02/2019	10
90910-02154	2URGSE..USC10 NO.1:ｲﾗｽﾄ参照	09/2014 - 02/2019	10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02165	2URGSE..USC10 NO.2:ｲﾗｽﾄ参照	09/2014 - 02/2019	10
90910-02154	2URGSE..USC10 NO.1:ｲﾗｽﾄ参照	09/2014 - 02/2019	10
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120	2URGSE..USC10 長さ=18,外径=8	09/2014 - 02/2019	4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097	2URGSE..USC10 長さ=12,外径=4.0	09/2014 - 02/2019	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113	2URGSE..USC10	09/2014 - 02/2019	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097	2URGSE..USC10	09/2014 - 02/2019	2
Common parts
90105-06220
90126-10014
90210-09020
91552-K1030
94151-81000

USC10-FCZRH (2014)

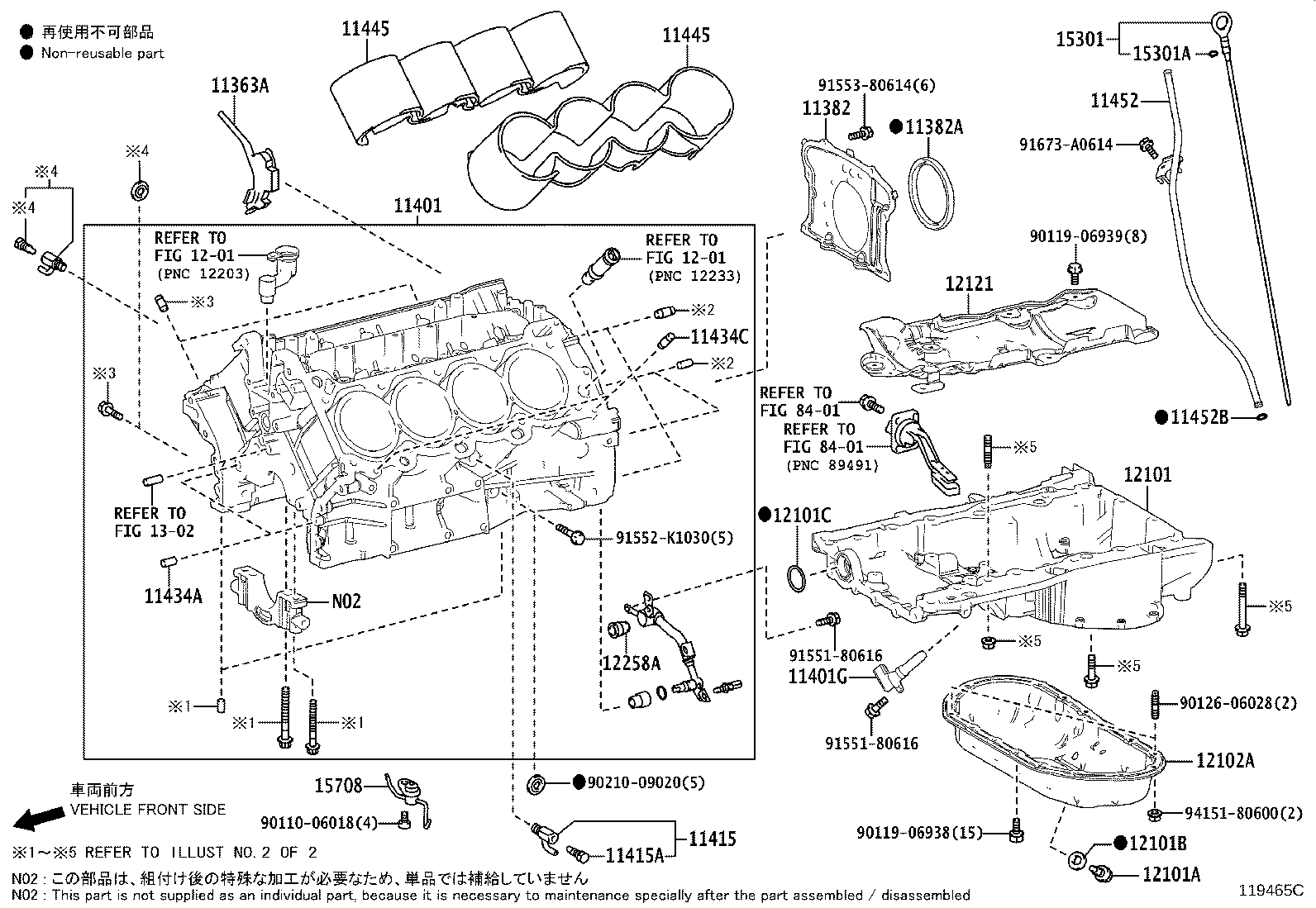

ILLUST NO. 1 OF 2(1409- )

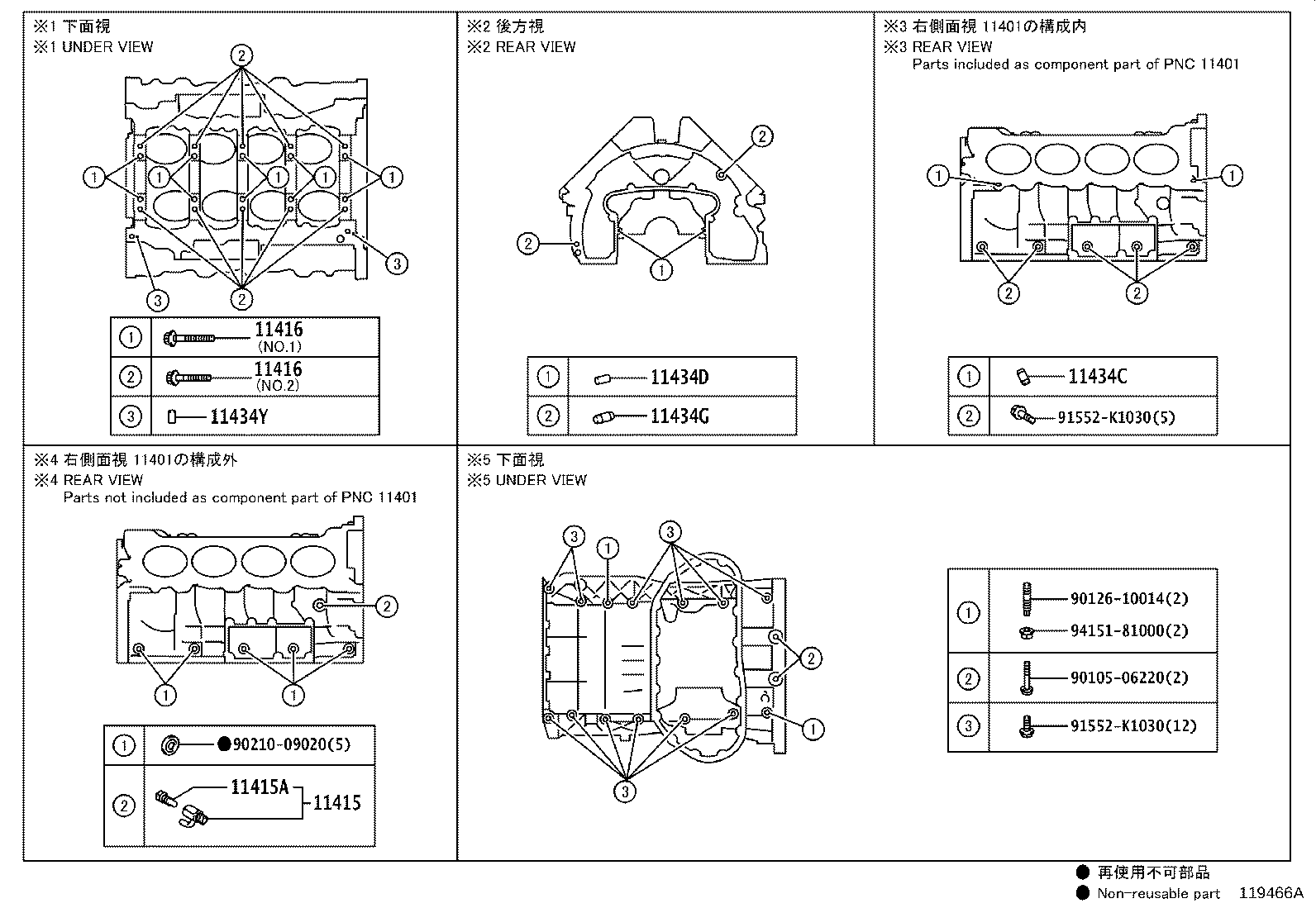

ILLUST NO. 2 OF 2(1409- )
