AYZ15-AWXLB (2014)
Toyota Lexus Nx Series

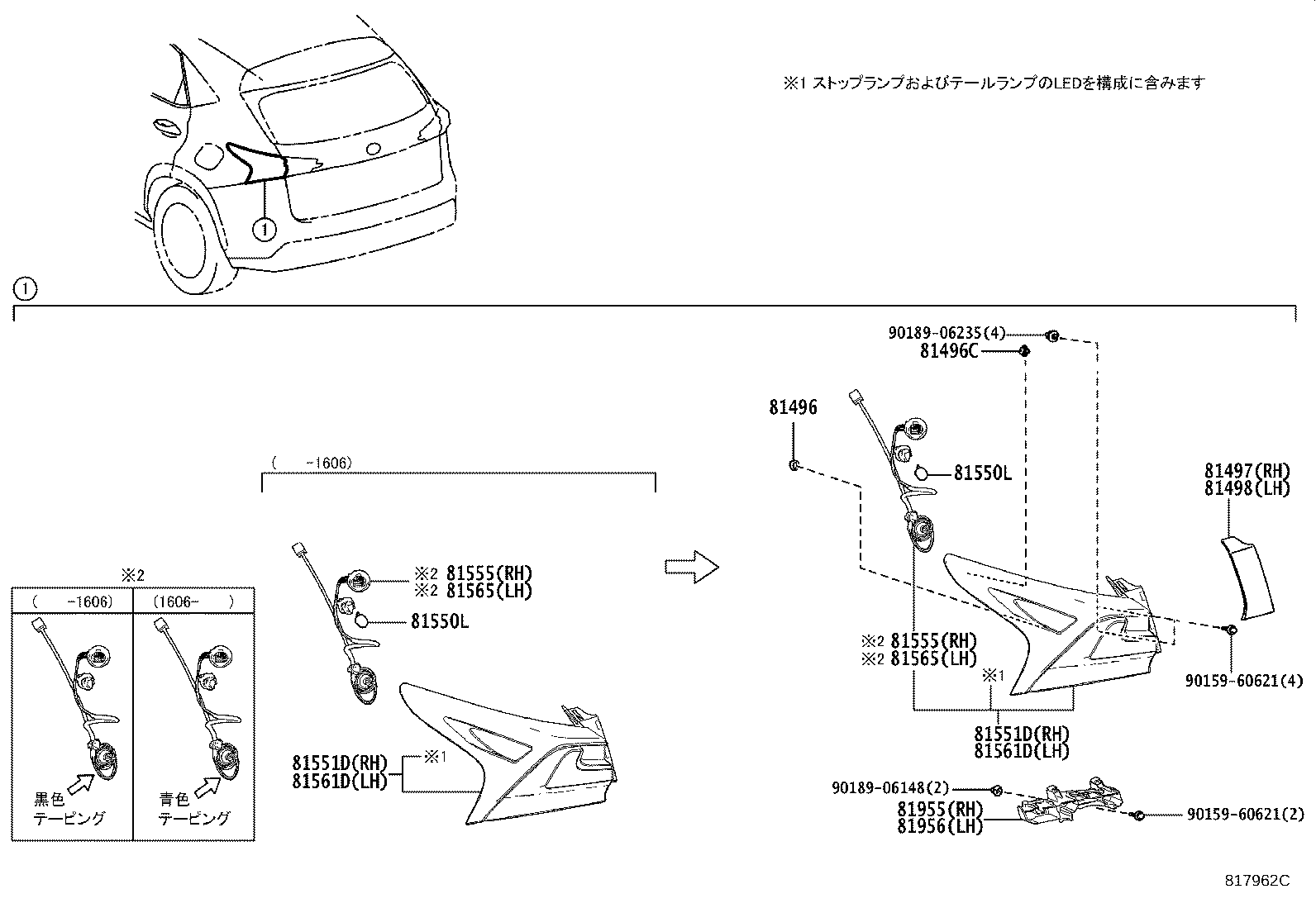

ILLUST NO. 1 OF 2(1407-1709)
ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
AGZ1#,AYZ1# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
AGZ1#,AYZ1# |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-1501179 |
AGZ1#,AYZ1# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-1501179 |
AGZ1#,AYZ1# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-78020 |
AGZ1#,AYZ1# PNC 81555参照 |
1 | ||
| 81551-78021 |
AGZ1#,AYZ1# PNC 81555参照 |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-78020 |
AGZ1#,AYZ1# PNC 81555参照 |
1 | ||
| 81551-78021 |
AGZ1#,AYZ1# PNC 81555参照 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81555-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81555-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-78020 |
AGZ1#,AYZ1# PNC 81565参照 |
1 | ||
| 81561-78021 |
AGZ1#,AYZ1# PNC 81565参照 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-78020 |
AGZ1#,AYZ1# PNC 81565参照 |
1 | ||
| 81561-78021 |
AGZ1#,AYZ1# PNC 81565参照 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81555-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81555-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81955 - RETAINER, REAR COMBINATION LAMP, RH | ||||
| 52562-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81956 - RETAINER, REAR COMBINATION LAMP, LH | ||||
| 52563-78010 |
AGZ1#,AYZ1# |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90189-06148 | ||||
| 90189-06235 | ||||
ILLUST NO. 2 OF 2(1407-1709)
ﾘﾔﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496B - GUIDE, REAR LAMP | ||||
| 81496-52020 |
AGZ1#,AYZ1# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-1105979 |
AGZ1#,AYZ1# 12V 16W |
2 | ||
| 90981-1105979 |
AGZ1#,AYZ1# 12V 16W,寒冷地仕様 |
1 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-1105979 |
AGZ1#,AYZ1# 12V 16W |
2 | ||
| 90981-1105979 |
AGZ1#,AYZ1# 12V 16W,寒冷地仕様 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-78021 |
AGZ1#,AYZ1# 寒冷地仕様,PNC 81585C参照 |
1 | ||
| 81581-78011 |
AGZ1#,AYZ1# PNC 81585C参照 |
1 | ||
| 81581-78010 |
AGZ1#,AYZ1# PNC 81585C参照 |
1 | ||
| 81581-78020 |
AGZ1#,AYZ1# 寒冷地仕様,PNC 81585C参照 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-78021 |
AGZ1#,AYZ1# 寒冷地仕様,PNC 81585C参照 |
1 | ||
| 81581-78011 |
AGZ1#,AYZ1# PNC 81585C参照 |
1 | ||
| 81581-78010 |
AGZ1#,AYZ1# PNC 81585C参照 |
1 | ||
| 81581-78020 |
AGZ1#,AYZ1# 寒冷地仕様,PNC 81585C参照 |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78020 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78021 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78020 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78021 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78020 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78021 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78020 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78021 |
AGZ1#,AYZ1# 寒冷地仕様,ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-78010 |
AGZ1#,AYZ1# PNC 81595参照 |
1 | ||
| 81591-78011 |
AGZ1#,AYZ1# PNC 81595参照 |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-78010 |
AGZ1#,AYZ1# PNC 81595参照 |
1 | ||
| 81591-78011 |
AGZ1#,AYZ1# PNC 81595参照 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-78010 |
AGZ1#,AYZ1# |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-78011 |
AGZ1#,AYZ1# ﾌﾞﾙ− ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| 81585-78010 |
AGZ1#,AYZ1# ﾌﾞﾗﾂｸ ﾃ−ﾋﾟﾝｸﾞ |
1 | ||
| Common parts | ||||
| 81496-78010 | ||||
| 90179-05102 | ||||
