AYZ15-AWXLB (2014)
Toyota Lexus Nx Series
(1407- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AGZ1#,AYZ1# |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
AGZ1#,AYZ1# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-78020 |
AGZ1#,AYZ1# |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AGZ1#,AYZ1# |
6 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-78020 |
AGZ1#,AYZ1# |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AGZ1#,AYZ1# |
4 | ||
| 62199A - HOLDER, FUSEE | ||||
| 90468-25003 |
AGZ1#,AYZ1# |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-78010 |
AGZ1#,AYZ1# |
2 | ||
| 62211U - GARNISH ASSY, FRONT PILLAR, RH | ||||
| 62210-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62210-78010A1 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62212B - GARNISH ASSY, FRONT PILLAR, LH | ||||
| 62220-78010A1 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62220-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
AGZ1#,AYZ1# |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-78010 |
AGZ1#,AYZ1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-78010 |
AGZ1#,AYZ1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-78010 |
AGZ1#,AYZ1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-78010 |
AGZ1#,AYZ1# |
1 | ||
| 62410A - GARNISH ASSY, CENTER PILLAR, RH | ||||
| 62410-78010A2 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62410-78011C1 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62410-78010C1 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62410-78011A2 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62410B - CLIP | ||||
| 90467-10216 |
AGZ1#,AYZ1# |
4 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10167 |
AGZ1#,AYZ1# |
8 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 62420A - GARNISH ASSY, CENTER PILLER, LH | ||||
| 62420-78010C1 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62420-78010A2 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62420-78011C1 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62420-78011A2 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-78020A0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,ECRU,TRIM0#,2#,3#,4# |
1 | ||
| 62470-78021A0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,ECRU,TRIM0#,2#,3#,4# |
1 | ||
| 62470-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62470-78021C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM9# |
1 | ||
| 62470-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62470-78020C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM9# |
1 | ||
| 62470-78010A0 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62470-78011A0 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
AGZ1#,AYZ1# |
10 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
AGZ1#,AYZ1# |
4 | ||
| 62471M - CLIP | ||||
| 62217-13010 |
AGZ1#,AYZ1# |
2 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-78021A0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,ECRU,TRIM0#,2#,3#,4# |
1 | ||
| 62480-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62480-78020A0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,ECRU,TRIM0#,2#,3#,4# |
1 | ||
| 62480-78011A0 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62480-78010A0 |
AGZ1#,AYZ1# ECRU,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62480-78020C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM9# |
1 | ||
| 62480-78021C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM9# |
1 | ||
| 62480-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM9# |
1 | ||
| 62551G - CLIP | ||||
| 90467-18017 |
AGZ1#,AYZ1# |
10 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-78030C0 |
AGZ1#,AYZ1# F SPORT*(F),BLACK,TRIM9# |
1 | ||
| 67910-78020C0 |
AGZ1#,AYZ1# version L*(L),BLACK,TRIM0#,2#,3#,4# |
1 | ||
| 67910-78030C0 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK,TRIM9# |
1 | ||
| 67910-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 67910-78030C0 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK,TRIM9# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-78010C0 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK,TRIM9# |
1 | ||
| 67917-78010C0 |
AGZ1#,AYZ1# F SPORT*(F),BLACK,TRIM9# |
1 | ||
| 67917-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 67917-78010C0 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK,TRIM9# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 67918-78010C0 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK,TRIM9# |
1 | ||
| 67918-78010C0 |
AGZ1#,AYZ1# F SPORT*(F),BLACK,TRIM9# |
1 | ||
| 67918-78010C0 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK,TRIM9# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-78030C0 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK,TRIM9# |
1 | ||
| 67920-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 67920-78020C0 |
AGZ1#,AYZ1# version L*(L),BLACK,TRIM0#,2#,3#,4# |
1 | ||
| 67920-78030C0 |
AGZ1#,AYZ1# F SPORT*(F),BLACK,TRIM9# |
1 | ||
| 67920-78030C0 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK,TRIM9# |
1 | ||

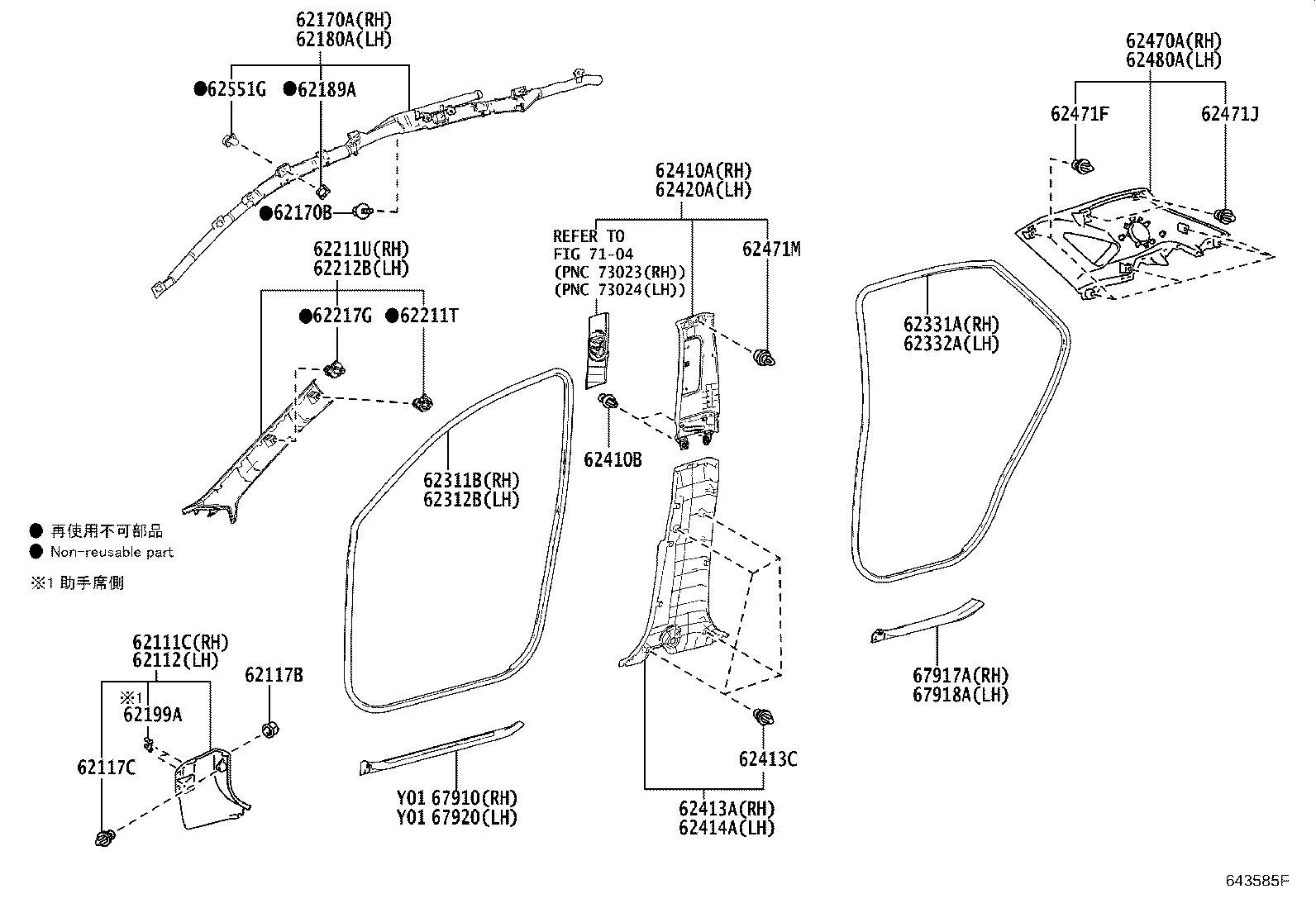

| Linked diagrams | ||||
| 7104 | ||||
