AGZ15-AWTLT (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

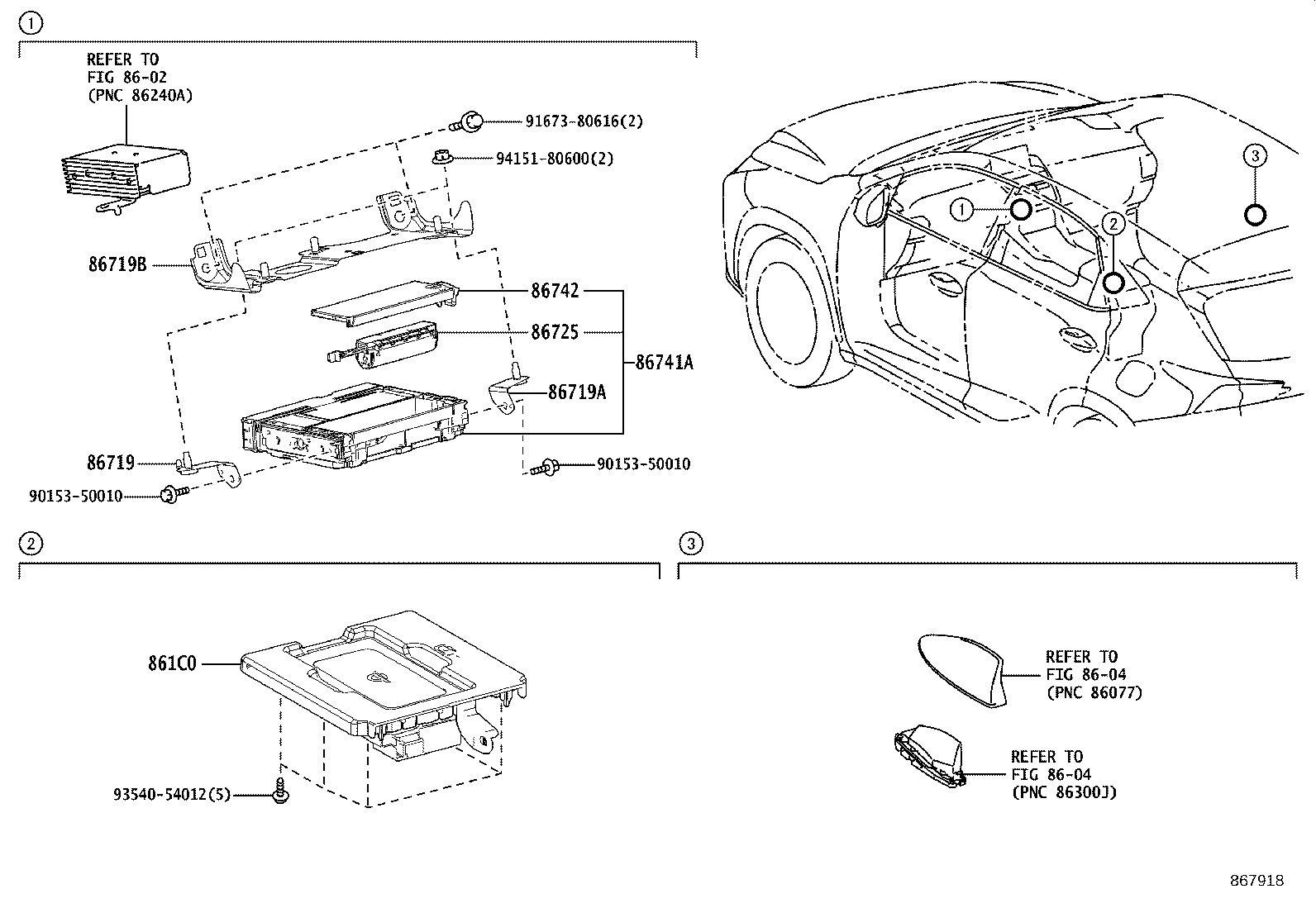

Click highlighted areas on diagram

diagram 8602 8604 8604 861C0 86719 86719A 86719B 86725 86741A 86742 9015350010 9015350010 9167380616 9354054012 9415180600
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-78021

AGZ1#,AYZ1#

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
861C0-78020

AGZ1#,AYZ1#

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
861C0-78022

AGZ1#,AYZ1#

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
86719 - BRACKET, TELEPHONE
86719-78010

AGZ1#,AYZ1#

 1
86719A - BRACKET, TELEPHONE NO.1
86719-78020

AGZ1#,AYZ1#

 1
86719B - BRACKET, TELEPHONE NO.2
86719-78060

AGZ1#,AYZ1#

 1
86725 - BATTERY, MOBILEPHONE
86725-26010

AGZ1#,AYZ1#

 1
86725-48010

AGZ1#,AYZ1#

 1
86741A - TRANSCEIVER, TELEMATICS
86740-78110

AGZ1#,AYZ1#

 1
86741-11041

AGZ1#,AYZ1#

 1
86742 - COVER, TRANSCEIVER
86742-26010

AGZ1#,AYZ1#

 1
Common parts
90153-50010
91673-80616
93540-54012
94151-80600
Linked diagrams
8602
8604
