AGZ15-AWTLT (2014)
Toyota Lexus Nx Series

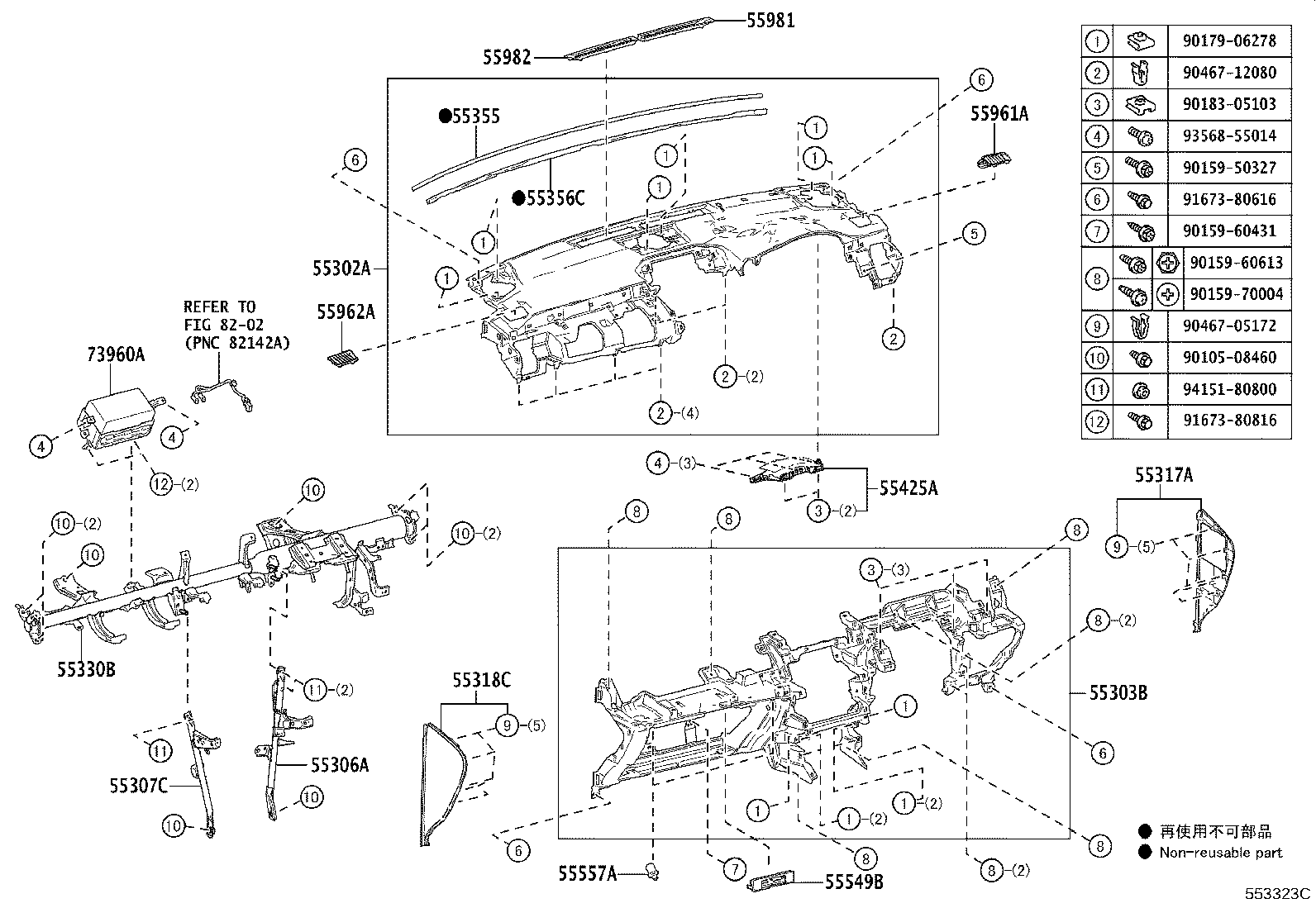

ILLUST NO. 1 OF 2(1407- )
ﾅｼ(ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78040C3 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/BLUE,TRIM96 |
1 | ||
| 55305-78020C2 |
AGZ1#,AYZ1# BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78040C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78040C1 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78020C1 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78020C3 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK/BLUE,TRIM96 |
1 | ||
| 55305-78040C4 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/ORANGE,TRIM96 |
1 | ||
| 55305-78020C4 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK/ORANGE,TRIM96 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55317-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78031 |
AGZ1#,AYZ1# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AGZ1#,AYZ1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-78010 |
AGZ1#,AYZ1# |
2 | ||
| 55557-52030 |
AGZ1#,AYZ1# |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AGZ1#,AYZ1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AGZ1#,AYZ1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

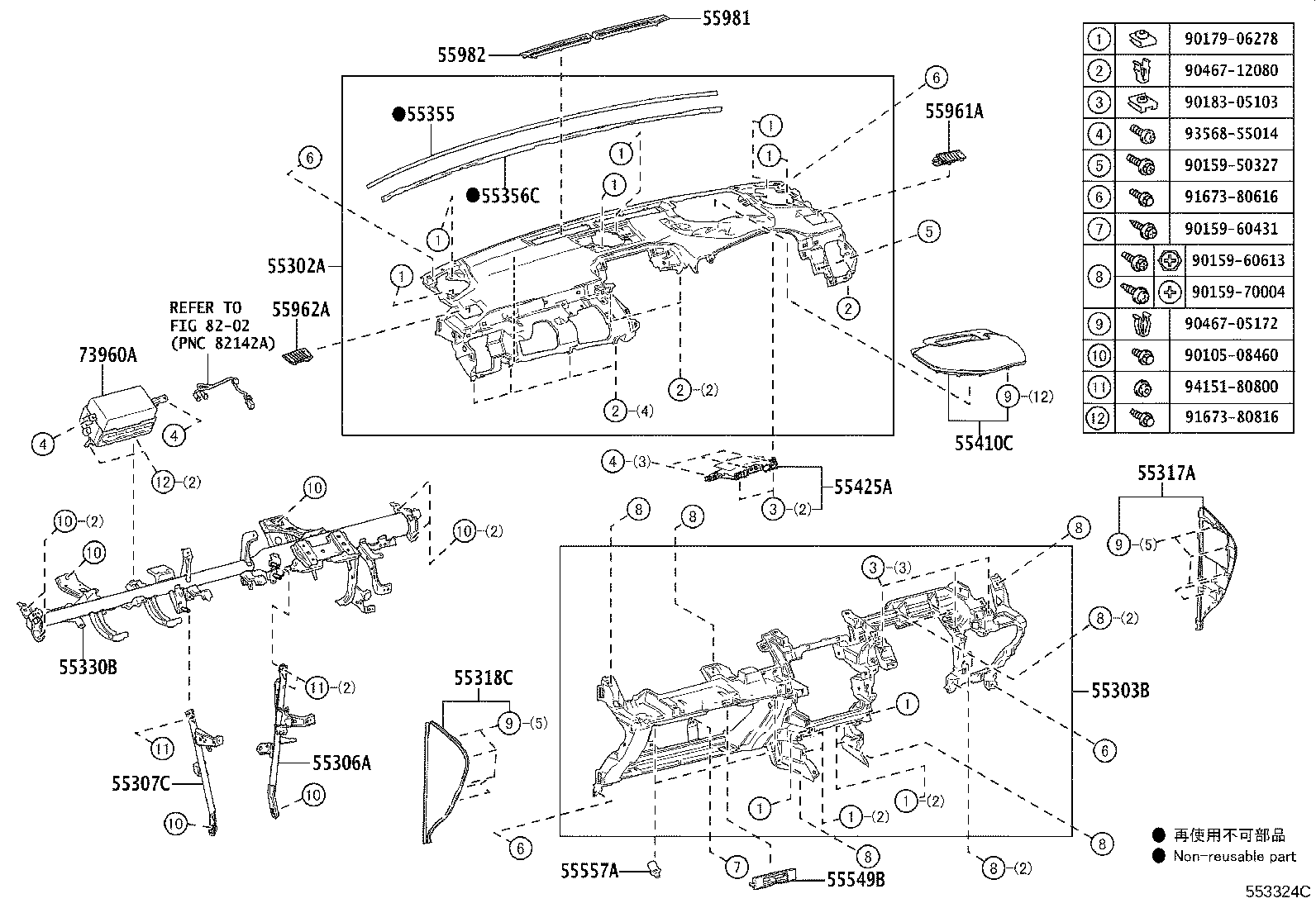

ILLUST NO. 1 OF 2(1407-1709)
ｱﾘ(ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78040C3 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/BLUE,TRIM96 |
1 | ||
| 55305-78020C2 |
AGZ1#,AYZ1# BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78040C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55305-78040C1 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78020C1 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55305-78020C3 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK/BLUE,TRIM96 |
1 | ||
| 55305-78040C4 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/ORANGE,TRIM96 |
1 | ||
| 55305-78020C4 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK/ORANGE,TRIM96 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55317-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55318-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78031 |
AGZ1#,AYZ1# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AGZ1#,AYZ1# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-78040C2 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/BLUE,TRIM96 |
1 | ||
| 55410-78040C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55410-78040C1 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92 |
1 | ||
| 55410-78040C3 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/ORANGE,TRIM96 |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-78010 |
AGZ1#,AYZ1# |
2 | ||
| 55557-52030 |
AGZ1#,AYZ1# |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AGZ1#,AYZ1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AGZ1#,AYZ1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

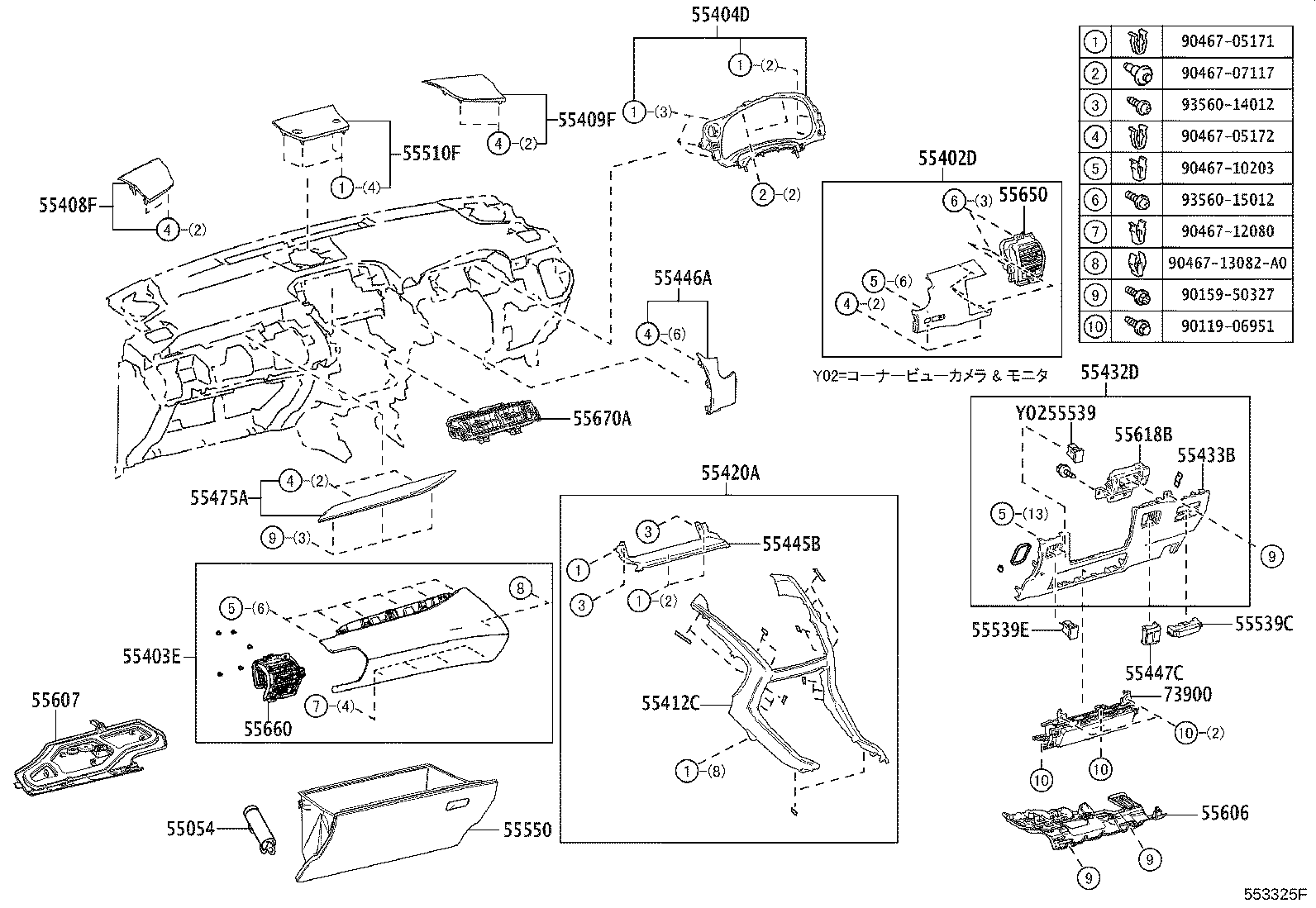

ILLUST NO. 2 OF 2(1407-1709)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AGZ1#,AYZ1# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-78020A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55402-78020C2 |
AGZ1#,AYZ1# BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-78020A2 |
AGZ1#,AYZ1# WHITE OCHRE/BEIGE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55403-78040C8 |
AGZ1#,AYZ1# F−SPORT(ﾗｳﾞｧｵﾚﾝｼﾞｸﾘｽﾀﾙｼｬｲﾝ)*(O),BLACK/ORANGE,TRIM96 |
1 | ||
| 55403-78020C5 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM04,05,06,07,1#,2#,3#,4#,5# |
1 | ||
| 55403-78040C7 |
AGZ1#,AYZ1# F−SPORT(ﾋｰﾄﾌﾞﾙｰｺﾝﾄﾗｽﾄﾚｲﾔﾘﾝｸﾞ)*(B),BLACK/BLUE,TRIM96 |
1 | ||
| 55403-78040C5 |
AGZ1#,AYZ1# F SPORT*(F),BLACK/LT.GRAY,TRIM90,92 |
1 | ||
| 55403-78040C6 |
AGZ1#,AYZ1# F SPORT*(F),BLACK/DK.ROSE,TRIM91,93,94,95 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-78030C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 55408-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55409-78030C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-78030A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55446-78040C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9# |
1 | ||
| 55446-78040A2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,WHITE OCHRE,TRIM00,01,02,03,25,26,27,28 |
1 | ||
| 55446-78030C2 |
AGZ1#,AYZ1# BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55447-78010C0 |
AGZ1#,AYZ1# ﾘﾔｼｰﾄ−6:4分割可倒式(ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-78020C2 |
AGZ1#,AYZ1# BLACK METALLIC,TRIM1#,2#,3# |
1 | ||
| 55475-78080F0 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−本杢,NATURAL BROWN,TRIM01,05,21,26,31,41,51 |
1 | ||
| 55475-78040B0 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾌｨﾙﾑ,SILVER FILM,TRIM02,06,10,22,27,32,42,52 |
1 | ||
| 55475-78080C1 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−本杢,STEEL WOOD,TRIM00,04,20,25,30,40,50,9# |
1 | ||
| 55475-78040B1 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾌｨﾙﾑ,F SPORT FILM,TRIM9# |
1 | ||
| 55475-78081C1 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−本杢,STEEL WOOD,TRIM00,04,20,25,30,40,50,9# |
1 | ||
| 55475-78081F0 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−本杢,NATURAL BROWN,TRIM01,05,21,26,31,41,51 |
1 | ||
| 55475-78040E0 |
AGZ1#,AYZ1# ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾌｨﾙﾑ,DARK FILM,TRIM03,07,11,23,28,33,43,53 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-78050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55510-78080C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F)&ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# F SPORT*(F),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(LED&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊｲﾋﾞｰﾑ(ﾊﾛｹﾞﾝ&ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK,TRIM0#,1#,2#,3#,5#,9# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AGZ1# ｱｸﾃｨﾌﾞｻｳﾝﾄﾞｺﾝﾄﾛｰﾙ−有り,BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55539-78030C0 |
AGZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48110 |
AGZ1#,AYZ1# |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-78010 |
AGZ1#,AYZ1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07117 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
