AGZ15-AWTLT (2014)
Toyota Lexus Nx Series
Production
Jul 2014
-
Sep 2017
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(1407- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

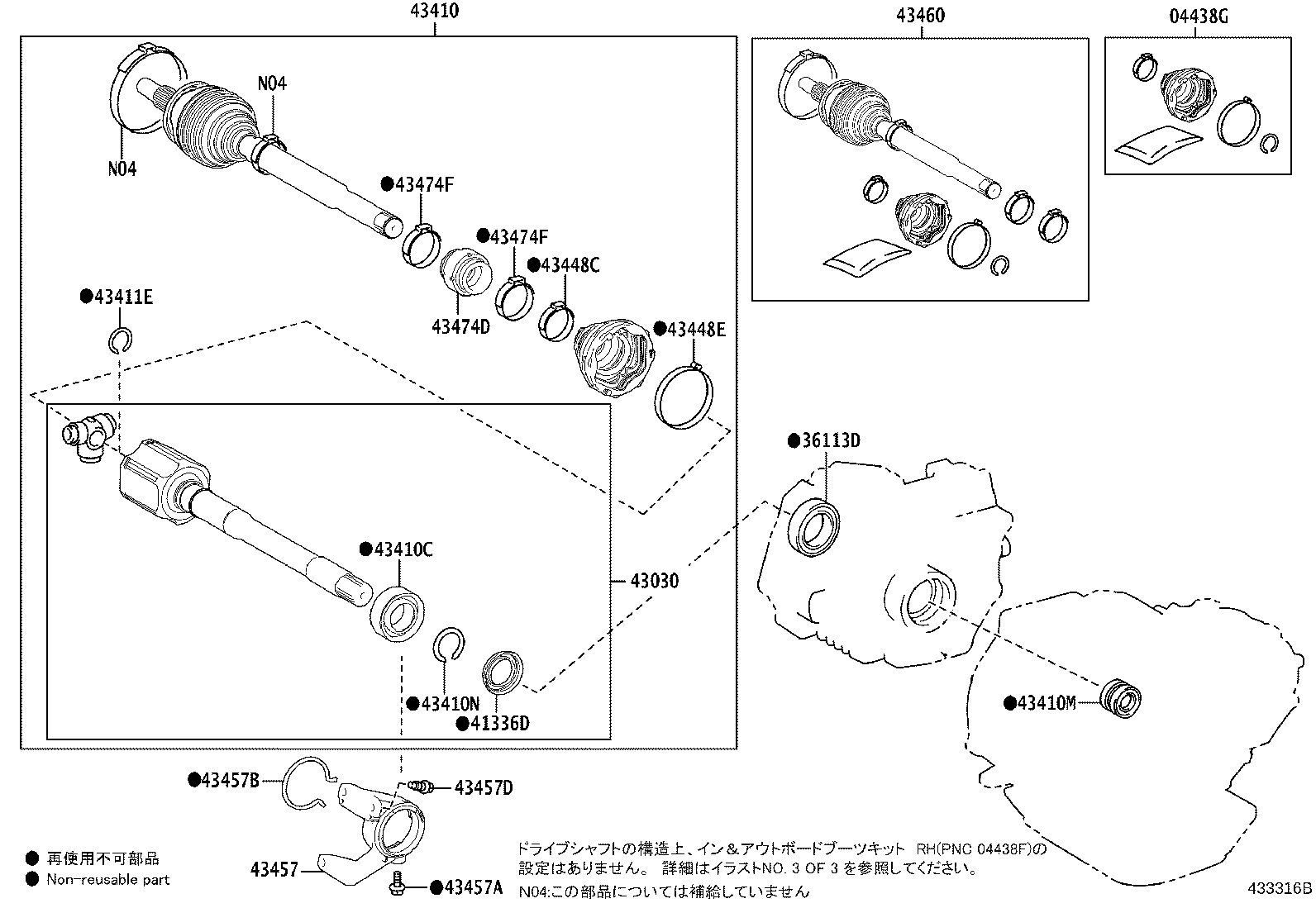

ILLUST NO. 1 OF 3(1407- )AGZ15
Click highlighted areas on diagram
ﾐｷﾞｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-78010 |
AGZ1#,AYZ1# |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-35056 |
AGZ15 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-78020 |
AGZ15 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-78020 |
AGZ15 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-78040 |
AGZ15 |
1 | ||
| 43410-78020 |
AGZ15 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
AGZ15 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-34001 |
AGZ15 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-78040 |
AGZ15 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-78010 |
AGZ1#,AYZ1# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-42150 |
AGZ15 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
AGZ1#,AYZ1# *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
AGZ15 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
AGZ1#,AYZ1# |
3 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-79145 |
AGZ15 |
1 | ||
| 43470-79205 |
AGZ15 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-78010 |
AGZ1#,AYZ1# |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-78030 |
AGZ1#,AYZ1# |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-78030 |
AGZ1#,AYZ1# |
2 | ||
ILLUST NO. 2 OF 3(1407-1502)
Click highlighted areas on diagram
ﾋﾀﾞﾘｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-78010 |
AGZ1#,AYZ1# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-78010 |
AGZ1#,AYZ1# |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-78030 |
AGZ1# |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-58010 |
AGZ1# |
1 | ||
| 43040-78010 |
AGZ1# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-78010 |
AGZ1# |
1 | ||
| 43420-78040 |
AGZ1# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-78050 |
AGZ1#,AYZ1# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50045 |
AGZ1# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-78040 |
AGZ1#,AYZ1# |
1 | ||
| 42345-78070 |
AGZ1#,AYZ1# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-78080 |
AGZ1#,AYZ1# |
1 | ||
| 42345-78050 |
AGZ1#,AYZ1# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-78010 |
AGZ1#,AYZ1# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-79215 |
AGZ1# |
1 | ||
| 43470-79155 |
AGZ1# |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-78020 |
AGZ1# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGZ1#,AYZ1# |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGZ1#,AYZ1# |
2 | ||
ILLUST NO. 2 OF 3(1502- )
Click highlighted areas on diagram
ﾋﾀﾞﾘｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-78010 |
AGZ1#,AYZ1# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-78010 |
AGZ1#,AYZ1# |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-78030 |
AGZ1# |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-58010 |
AGZ1# |
1 | ||
| 43040-78010 |
AGZ1# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-78010 |
AGZ1# |
1 | ||
| 43420-78040 |
AGZ1# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-78050 |
AGZ1#,AYZ1# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50045 |
AGZ1# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-78040 |
AGZ1#,AYZ1# |
1 | ||
| 42345-78070 |
AGZ1#,AYZ1# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-78080 |
AGZ1#,AYZ1# |
1 | ||
| 42345-78050 |
AGZ1#,AYZ1# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-78010 |
AGZ1#,AYZ1# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-78020 |
AGZ1#,AYZ1# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-79215 |
AGZ1# |
1 | ||
| 43470-79155 |
AGZ1# |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-78020 |
AGZ1# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGZ1#,AYZ1# |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGZ1#,AYZ1# |
2 | ||
