AGZ10-AWTLT (2017)
Toyota Lexus Nx Series

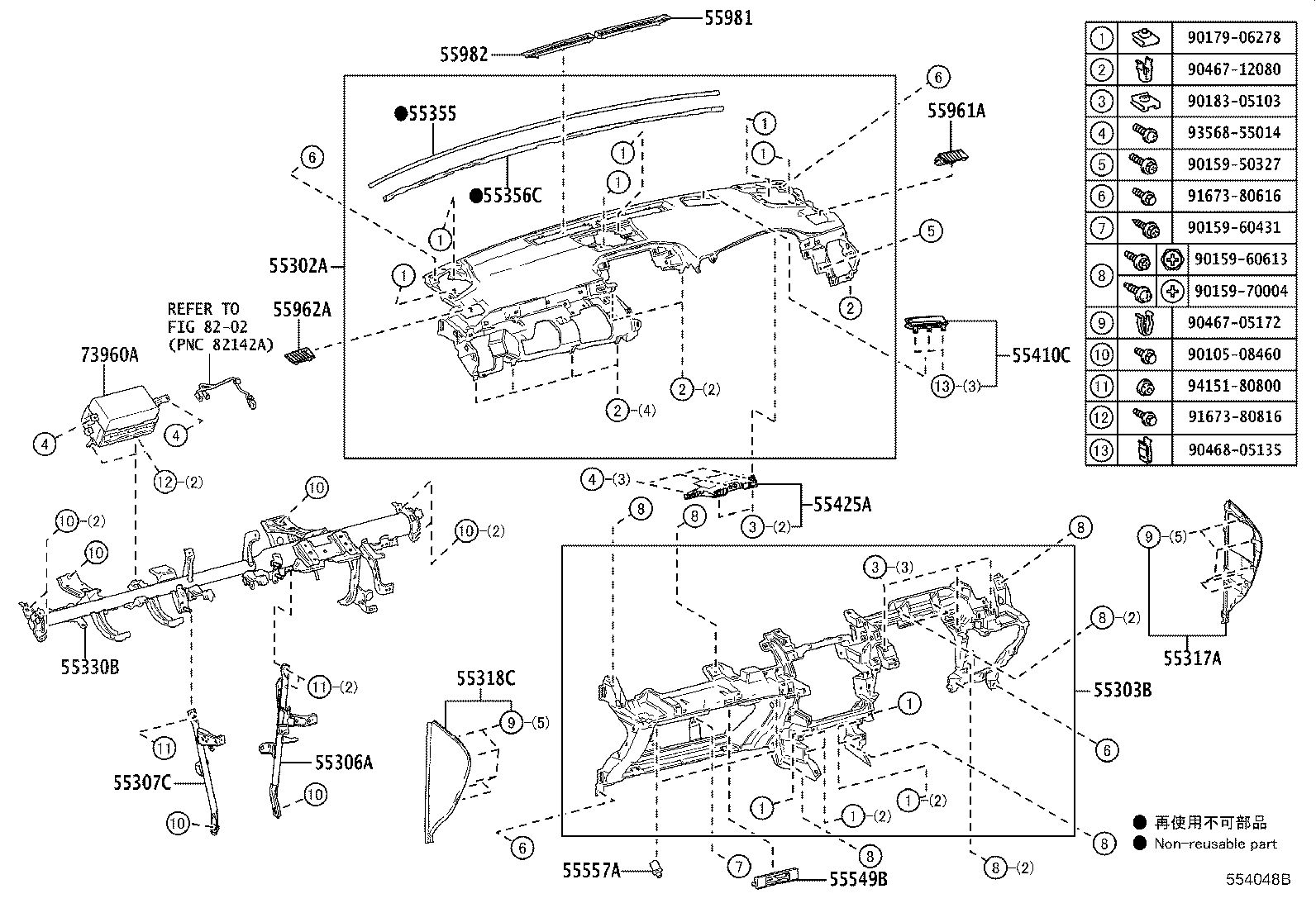

ILLUST NO. 1 OF 2(1709- )
ｱﾘ(ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78060C2 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78080C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9# |
1 | ||
| 55305-78060C5 |
AGZ1# “Bronze Edition”*(B),BLACK/IVORY,TRIM22 |
1 | ||
| 55305-78060C2 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9# |
1 | ||
| 55305-78060C2 |
AGZ1#,AYZ1# BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78080C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78060C4 |
AGZ1#,AYZ1# BLACK/CRIMSON,TRIM38 |
1 | ||
| 55305-78080C5 |
AGZ1# “Bronze Edition”*(B)&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/IVORY,TRIM22 |
1 | ||
| 55305-78060C3 |
AGZ1#,AYZ1# BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55305-78080C1 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55305-78060C6 |
AGZ1#,AYZ1# BLACK/BLUE,TRIM8# |
1 | ||
| 55305-78060C5 |
AGZ1#,AYZ1# BLACK/IVORY,TRIM28 |
1 | ||
| 55305-78080C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/DK.ROSE,TRIM35,36,37 |
1 | ||
| 55305-78080C6 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/BLUE,TRIM8# |
1 | ||
| 55305-78080C3 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55305-78080C5 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/IVORY,TRIM28 |
1 | ||
| 55305-78060C1 |
AGZ1#,AYZ1# BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55305-78080C4 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/CRIMSON,TRIM38 |
1 | ||
| 55305-78080C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78060C0 |
AGZ1#,AYZ1# BLACK/DK.ROSE,TRIM35,36,37 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78011C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78070 |
AGZ1#,AYZ1# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AGZ1#,AYZ1# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-78060C0 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78030 |
AGZ1#,AYZ1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AGZ1#,AYZ1# |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AGZ1#,AYZ1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AGZ1#,AYZ1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

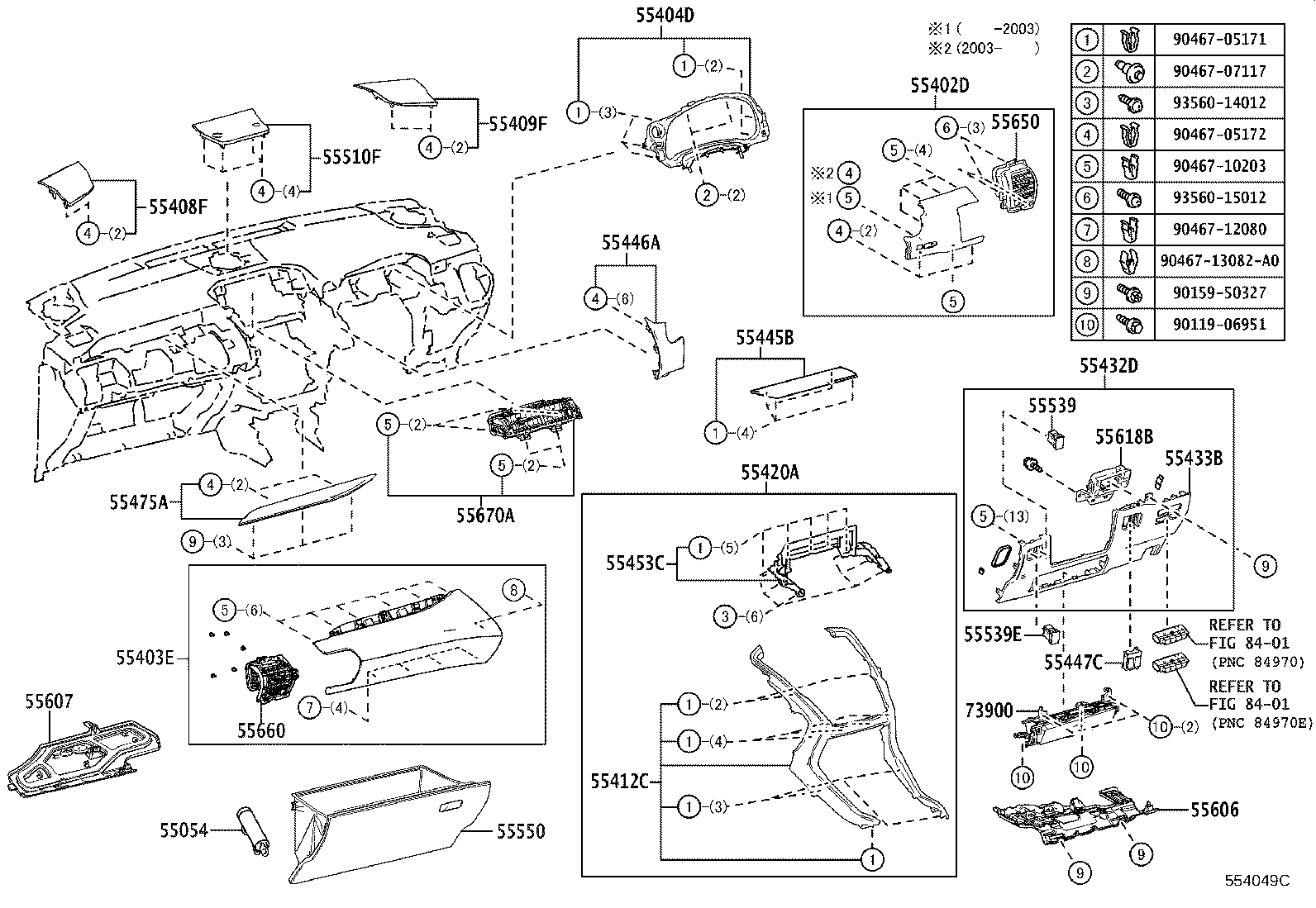

ILLUST NO. 2 OF 2(1709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AGZ1#,AYZ1# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-78020A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55402-78020A3 |
AGZ1#,AYZ1# RICH CREAM,TRIM6#,7# |
1 | ||
| 55402-78021C2 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,8# |
1 | ||
| 55402-78021A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55402-78021A3 |
AGZ1#,AYZ1# RICH CREAM,TRIM6#,7# |
1 | ||
| 55402-78020C2 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 55402-78021C2 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,8# |
1 | ||
| 55402-78021D0 |
AGZ1#,AYZ1# CRIMSON,TRIM38 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-78021C5 |
AGZ1#,AYZ1# BLACK,TRIM04,07,08,09,2#,3#,4#,9# |
1 | ||
| 55403-78041C5 |
AGZ1#,AYZ1# F SPORT,BLACK/LT.GRAY,TRIM0#,2#,51,52 |
1 | ||
| 55403-78021A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55403-78021A3 |
AGZ1#,AYZ1# RICH CREAM,TRIM6#,7# |
1 | ||
| 55403-78022C5 |
AGZ1#,AYZ1# BLACK,TRIM04,07,08,09,2#,3#,40,41,42,43 |
1 | ||
| 55403-78041C9 |
AGZ1#,AYZ1# F SPORT,BLACK/MUSTARD YELLOW,TRIM51,52 |
1 | ||
| 55403-78041C6 |
AGZ1#,AYZ1# F SPORT,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55403-7804220 |
AGZ1# F SPORT&“Bronze Edition”*(B),BLACK/IVORY,TRIM22 |
1 | ||
| 55403-78022C9 |
AGZ1# “Bronze Edition”*(B),BLACK/IVORY,TRIM22 |
1 | ||
| 55403-78042C5 |
AGZ1#,AYZ1# F SPORT,BLACK/LT.GRAY,TRIM0#,2# |
1 | ||
| 55403-78022C9 |
AGZ1#,AYZ1# BLACK/IVORY,TRIM28 |
1 | ||
| 55403-78042C6 |
AGZ1#,AYZ1# F SPORT,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55403-78022C5 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,30,31,32,33,40,41,42,43 |
1 | ||
| 55403-78042C7 |
AGZ1#,AYZ1# F SPORT,BLACK/BLUE,TRIM8# |
1 | ||
| 55403-78022A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55403-78042C9 |
AGZ1#,AYZ1# F SPORT,BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55403-78022D0 |
AGZ1#,AYZ1# CRIMSON,TRIM38 |
1 | ||
| 55403-78022A3 |
AGZ1#,AYZ1# RICH CREAM,TRIM6#,7# |
1 | ||
| 55403-78022C8 |
AGZ1#,AYZ1# BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-78090C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55408-78080C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-78050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55409-78060C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-78040 |
AGZ1#,AYZ1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-78040 |
AGZ1#,AYZ1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-78030C2 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,8#,9# |
1 | ||
| 55446-78030A3 |
AGZ1#,AYZ1# RICH CREAM,TRIM6#,7# |
1 | ||
| 55446-78040C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM0#,2#,3#,4#,5#,8#,9# |
1 | ||
| 55446-78040A2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55446-78030A2 |
AGZ1#,AYZ1# WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55446-78030D0 |
AGZ1#,AYZ1# CRIMSON,TRIM38 |
1 | ||
| 55446-78040C2 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM0#,2#,3#,4#,5#,8#,9# |
1 | ||
| 55446-78030C2 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,8#,9# |
1 | ||
| 55446-78040A3 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,RICH CREAM,TRIM6#,7# |
1 | ||
| 55446-78040D0 |
AGZ1#,AYZ1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,CRIMSON,TRIM38 |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-78010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55447-78010C0 |
AGZ1#,AYZ1# ﾘﾔｼｰﾄ−6:4分割可倒式(ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-78010 |
AGZ1#,AYZ1# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-78040E0 |
AGZ1#,AYZ1# DARK FILM,TRIM03,09,23,33,43,47,63,73,93 |
1 | ||
| 55475-78081C1 |
AGZ1#,AYZ1# ｲﾝｽﾄﾙﾒﾝﾄﾌｨﾆｯｼｭﾊﾟﾈﾙ−本杢,STEEL WOOD,TRIM0#,2#,30,35,40,44,5#,60,70,90 |
1 | ||
| 55475-78040E1 |
AGZ1#,AYZ1# BRONZE,TRIM28 |
1 | ||
| 55475-78040E1 |
AGZ1# “Bronze Edition”*(B),BRONZE,TRIM22 |
1 | ||
| 55475-78040B1 |
AGZ1#,AYZ1# F SPORT FILM,TRIM05,26,36,5#,8# |
1 | ||
| 55475-78081F0 |
AGZ1#,AYZ1# ｲﾝｽﾄﾙﾒﾝﾄﾌｨﾆｯｼｭﾊﾟﾈﾙ−本杢,NATURAL BROWN,TRIM01,07,21,31,41,45,61,71,91 |
1 | ||
| 55475-78120B0 |
AGZ1#,AYZ1# F SPORT&ｲﾝｽﾄﾙﾒﾝﾄﾌｨﾆｯｼｭﾊﾟﾈﾙ−ｱﾙﾐ,SILVER,TRIM0#,2#,3#,5# |
1 | ||
| 55475-78040B0 |
AGZ1#,AYZ1# SILVER FILM,TRIM02,08,22,32,38,42,46,62,72,92 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-78080C0 |
AGZ1#,AYZ1# ｵｰﾃﾞｨｵ−EMVN & 14ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55510-78050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AGZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55539-78030C0 |
AGZ1# ｱｸﾃｨﾌﾞｻｳﾝﾄﾞｺﾝﾄﾛｰﾙ−有り,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48110 |
AGZ1#,AYZ1# |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55650-78022 |
AGZ1#,AYZ1# |
1 | ||
| 55650-78021 |
AGZ1#,AYZ1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55660-78021 |
AGZ1#,AYZ1# |
1 | ||
| 55660-78022 |
AGZ1#,AYZ1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-78020 |
AGZ1#,AYZ1# |
1 | ||
| 55670-78021 |
AGZ1#,AYZ1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-78020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07117 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
