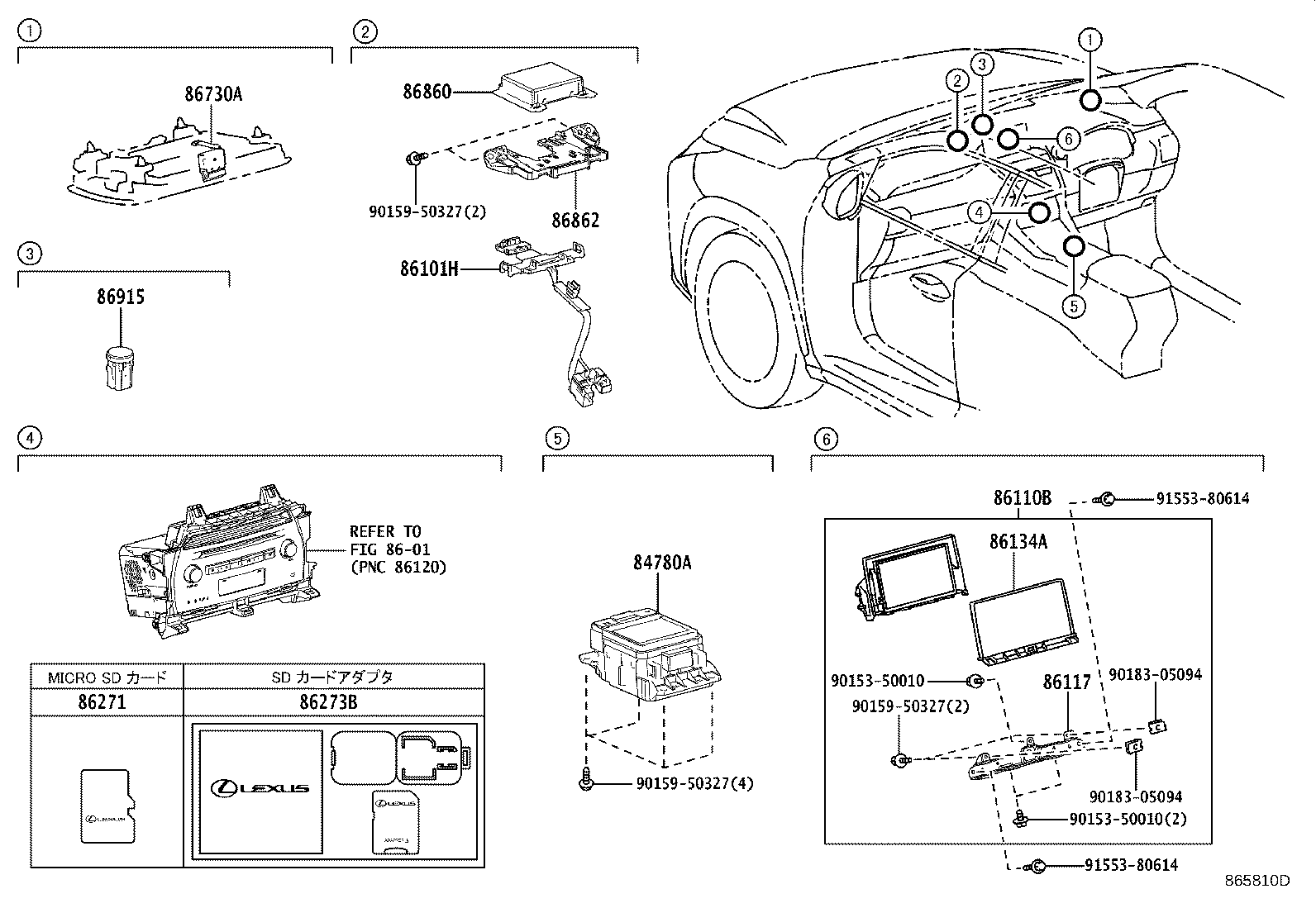

Toyota Lexus nx series AGZ10 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
84780A - CONTROLLER ASSY, REMOTE OPERATION
84780-78020	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86101H - CORD SUB-ASSY, ANTENNA
86101-78540	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86110B - MULTI-DISPLAY ASSY
86110-78021	AGZ1#,AYZ1# PIONEER	07/2016 - 02/2017	1
86110-78022	AGZ1#,AYZ1# PIONEER	03/2017 - 09/2017	1
86110-78020	AGZ1#,AYZ1# PIONEER	07/2014 - 07/2016	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-78010	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86134A - PARTS, MULTI-DISPLAY
86134-78021	AGZ1#,AYZ1#	07/2016 - 09/2017	1
86134-78020	AGZ1#,AYZ1#	07/2014 - 07/2016	1
86271 - DISC, DISC PLAYER
86271-78020	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	07/2014 - 08/2014	1
86271-30A75	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	09/2016 - 03/2017	1
86271-30A72	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	04/2015 - 09/2015	1
86271-30A73	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	09/2015 - 04/2016	1
86271-30A74	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	04/2016 - 08/2016	1
86271-78021	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	09/2014 - 03/2015	1
86271-30A76	AGZ1#,AYZ1# MICRO SDｶｰﾄﾞ	04/2017 - 09/2017	1
86273B - ADAPTER, DISC PLAYER
86273-53010	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53080	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86860 - ANTENNA ASSY, NAVIGATION
86880-78010	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-78010	AGZ1#,AYZ1#	07/2014 - 09/2017	1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010	AGZ1#,AYZ1#	07/2014 - 09/2017	1
Common parts
90153-50010
90159-50327
90183-05094
91553-80614
Linked diagrams
8601

AGZ10-AWTLT (2014)
