URJ201W-GNZGK (2015)
Toyota Lexus Lx570
Production
Sep 2015
-
Sep 9999
Engine
3URFE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

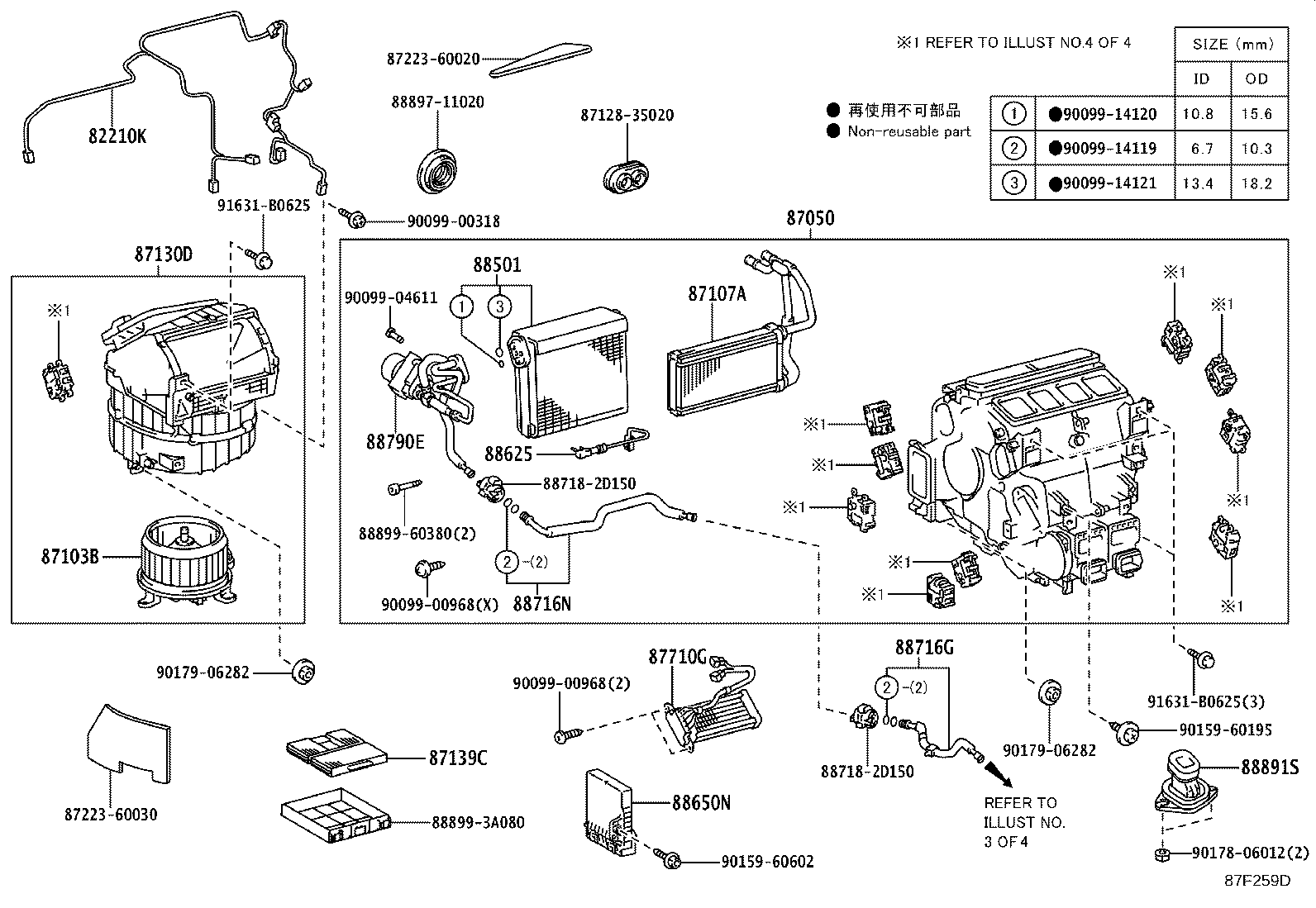

ILLUST NO. 1 OF 4(1509- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60180 |
URJ201 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60A40 |
URJ201 |
1 | ||
| 87050-60M50 |
URJ201 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60550 |
URJ201 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ201 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60660 |
URJ201 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-5010079 |
URJ201 花粉･脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-5204079 |
URJ201 花粉ﾌｨﾙﾀ,工場装着品 |
1 | ||
| 87139-7601079 |
URJ201 微細塵ﾌｨﾙﾀ,工場装着品 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-60060 |
URJ201 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60362 |
URJ201 |
1 | ||
| 88501-60600 |
URJ201 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ201 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Q41 |
URJ201 |
1 | ||
| 88650-60Q42 |
URJ201 |
1 | ||
| 88650-60Q00 |
URJ201 |
1 | ||
| 88650-60Q40 |
URJ201 |
1 | ||
| 88650-60Q01 |
URJ201 |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-6C270 |
URJ201 |
1 | ||
| 88716N - PIPE, COOLER REFRIGERANT LIQUID, N | ||||
| 88716-6C170 |
URJ201 |
2 | ||
| 88716-6C170 |
URJ201 |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A11 |
URJ201 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ201 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60020 | ||||
| 87223-60030 | ||||
| 88718-2D150 | ||||
| 88897-11020 | ||||
| 88899-3A080 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90178-06012 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||

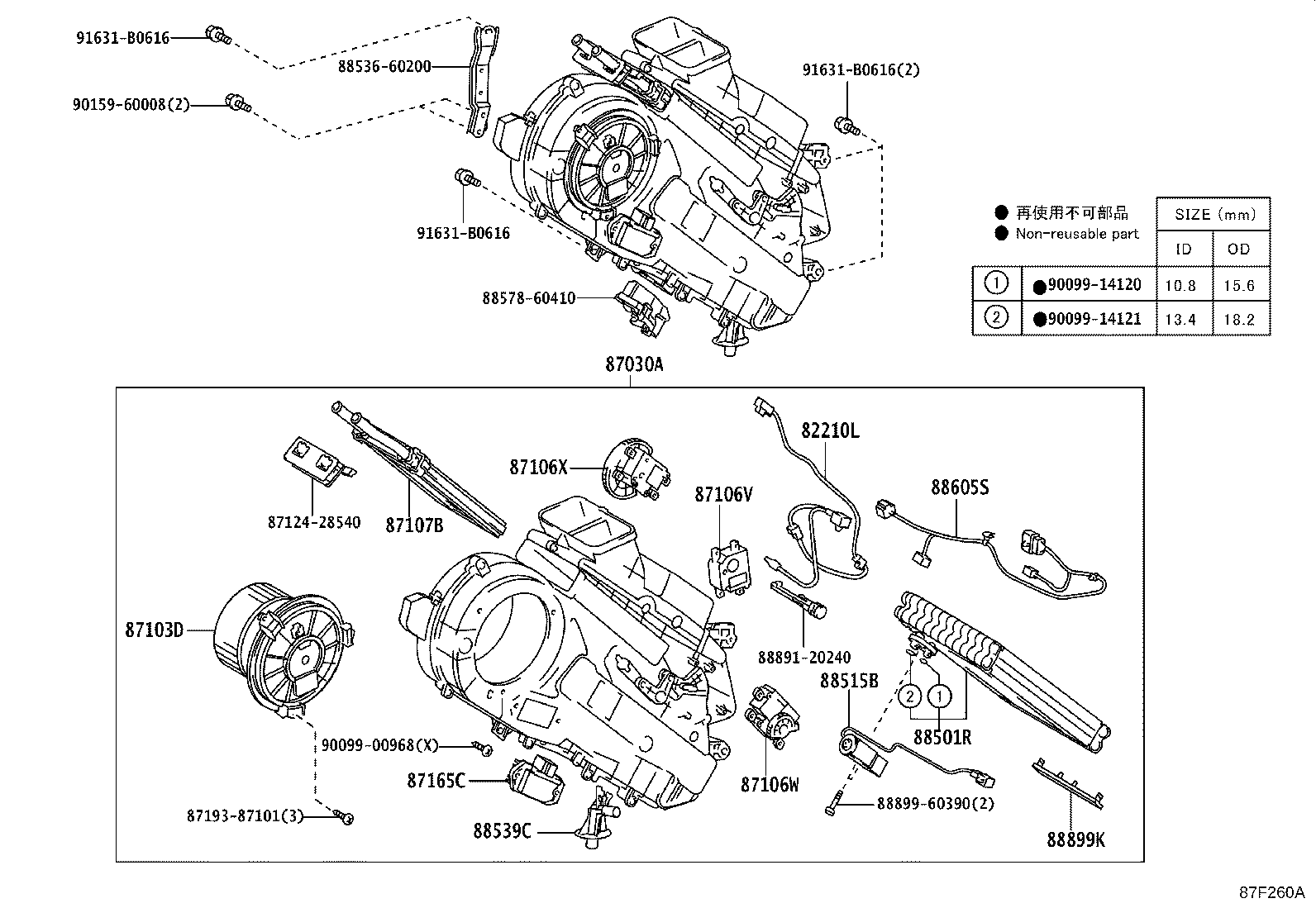

ILLUST NO. 2 OF 4(1509- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-60250 |
URJ201 |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-60080 |
URJ201 |
1 | ||
| 87030-60220 |
URJ201 |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
URJ201 |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-60280 |
URJ201 |
1 | ||
| 87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR) | ||||
| 87106-28170 |
URJ201 |
1 | ||
| 87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR) | ||||
| 87106-58030 |
URJ201 |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28300 |
URJ201 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28020 |
URJ201 |
1 | ||
| 87165-36010 |
URJ201 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
URJ201 |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60220 |
URJ201 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60280 |
URJ201 |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 82212-60230 |
URJ201 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60520 |
URJ201 |
1 | ||
| 88899-60450 |
URJ201 |
1 | ||
| Common parts | ||||
| 87124-28540 | ||||
| 87193-87101 | ||||
| 88536-60200 | ||||
| 88578-60410 | ||||
| 88891-20240 | ||||
| 88899-60390 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60008 | ||||
| 91631-B0616 | ||||

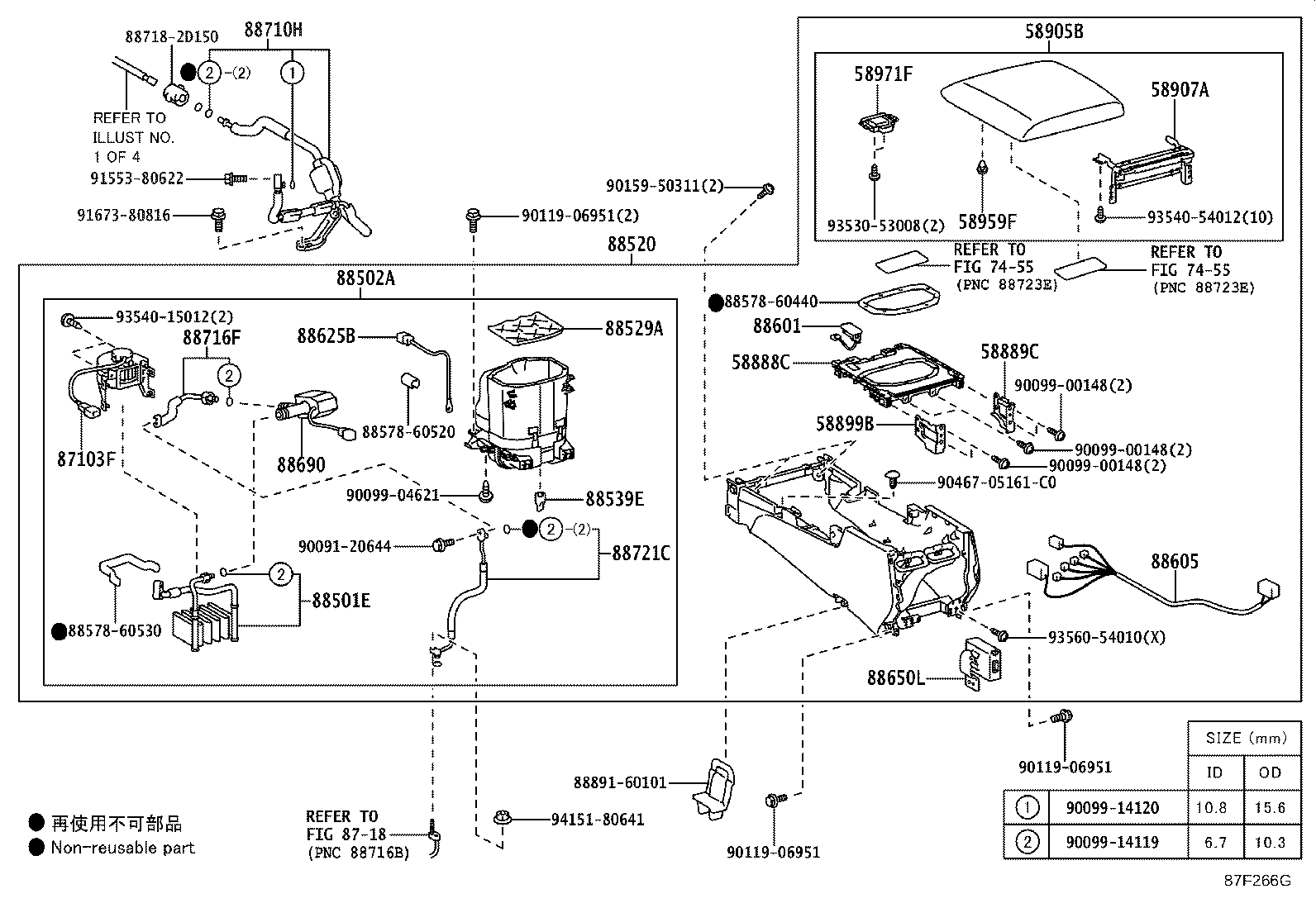

ILLUST NO. 3 OF 4(1509- )
Click highlighted areas on diagram
ｸｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58888C - BASE, COOLING BOX | ||||
| 58888-60020 |
URJ201 |
1 | ||
| 58889C - BRACKET, COOLING BOX | ||||
| 58889-60010 |
URJ201 |
1 | ||
| 58899B - BRACKET, COOLING BOX, NO.2 | ||||
| 58899-60010 |
URJ201 |
1 | ||
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60540A5 |
URJ201 IVORY(SMOOTH LEATHER),TRIM0# |
1 | ||
| 58905-60540C4 |
URJ201 BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 58905-60540A5 |
URJ201 IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 58905-60540C4 |
URJ201 BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#,5# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60150 |
URJ201 |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 58959-35010 |
URJ201 |
2 | ||
| 58971F - LOCK, COOLING BOX DOOR | ||||
| 58971-60070 |
URJ201 |
1 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60451 |
URJ201 |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60610 |
URJ201 |
1 | ||
| 88501-60350 |
URJ201 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60211 |
URJ201 |
1 | ||
| 88502-60360 |
URJ201 |
1 | ||
| 88530-60190 |
URJ201 |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60840C3 |
URJ201 BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 88520-60D10A0 |
URJ201 IVORY,TRIM0# |
1 | ||
| 88520-60840A4 |
URJ201 IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60D10C0 |
URJ201 BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-60050 |
URJ201 |
1 | ||
| 88529-60050 |
URJ201 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60270 |
URJ201 |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88470-60060 |
URJ201 |
1 | ||
| 88601-60060 |
URJ201 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-6A152 |
URJ201 |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-60070 |
URJ201 |
1 | ||
| 88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX) | ||||
| 88950-60010 |
URJ201 |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60280 |
URJ201 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88720-60240 |
URJ201 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6C280 |
URJ201 |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88721-60170 |
URJ201 |
1 | ||
| Common parts | ||||
| 88578-60440 | ||||
| 88578-60520 | ||||
| 88578-60530 | ||||
| 88718-2D150 | ||||
| 88891-60101 | ||||
| 90091-20644 | ||||
| 90099-00148 | ||||
| 90099-04621 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90467-05161C0 | ||||
| 91553-80622 | ||||
| 91673-80816 | ||||
| 93530-53008 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-54010 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||

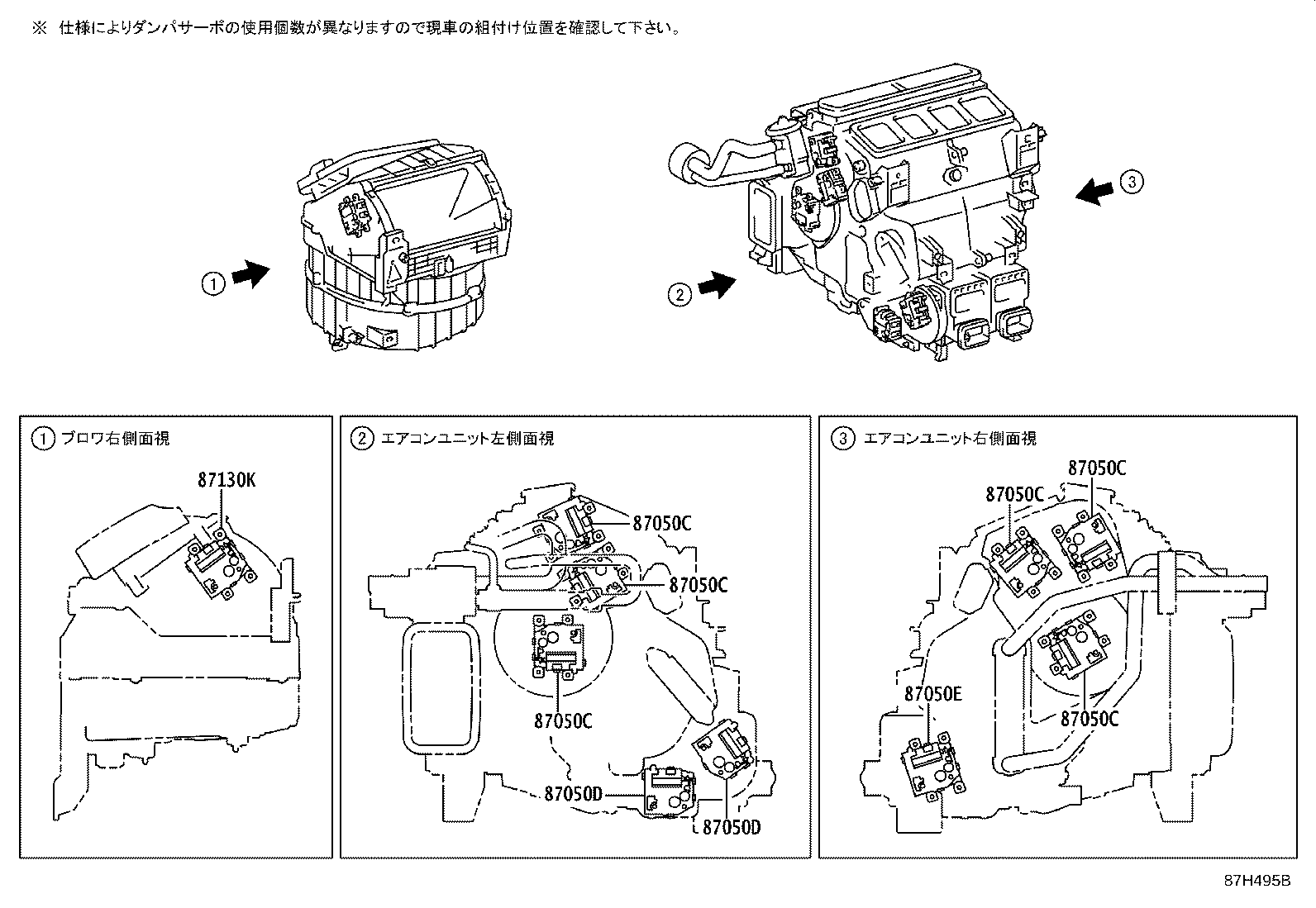

ILLUST NO. 4 OF 4(1509- )
Click highlighted areas on diagram
ﾀﾞﾝﾊﾟｻｰﾎﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201 |
7 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ201 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ201 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-60340 |
URJ201 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-60350 |
URJ201 |
1 | ||
