URJ201W-GNZGK (2015)

Toyota Lexus Lx570

Production Sep 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

Click highlighted areas on diagram

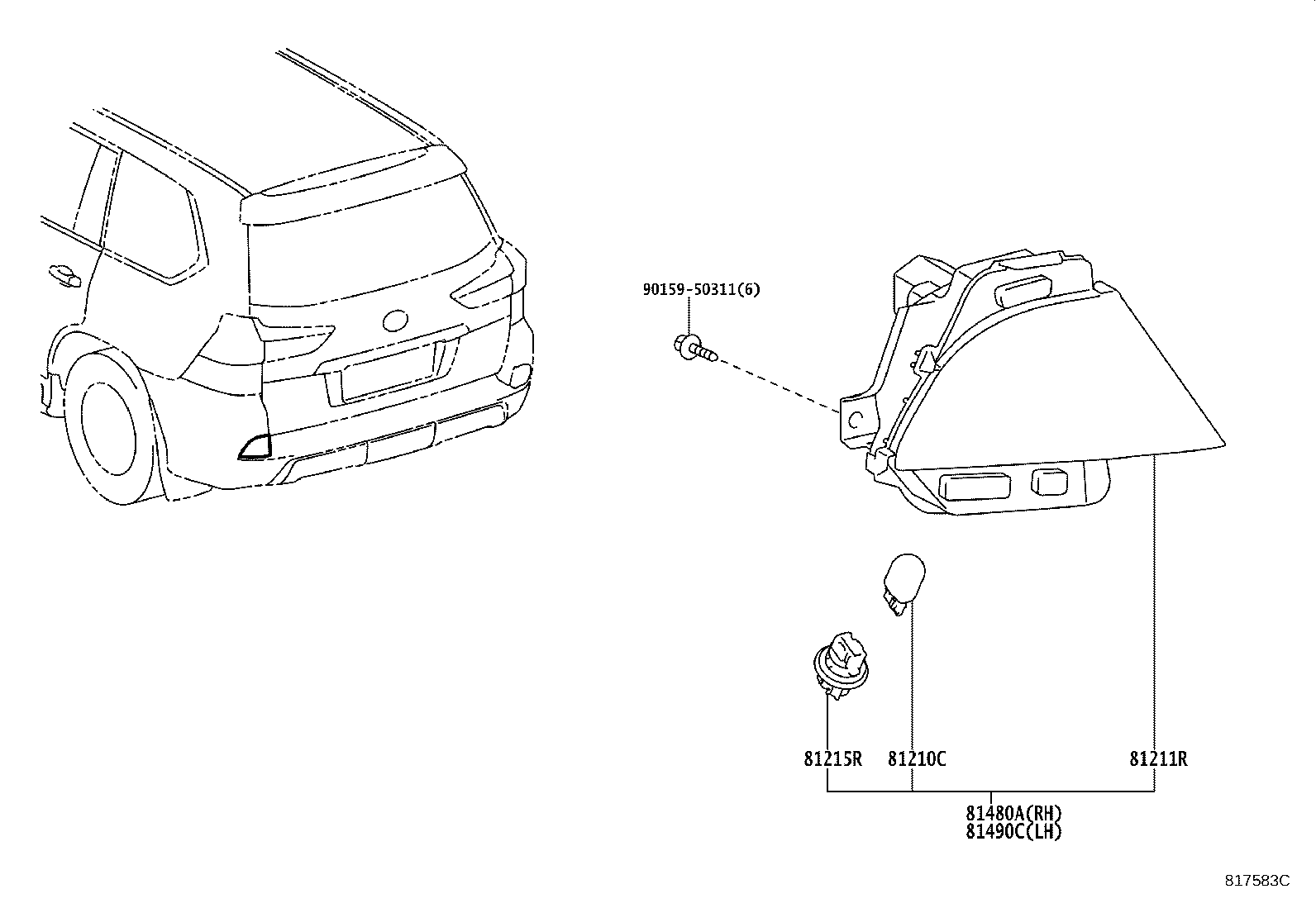

diagram 81210C 81211R 81215R 81480A 81490C 9015950311
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-1304379

URJ201

12V 21W

 2
81211R - LENS, REAR FOG LAMP
81456-60100

URJ201

左側

 1
81457-60100

URJ201

右側

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
90075-99080

URJ201

 2
81480A - LAMP ASSY, REAR FOG, RH
81480-60100

URJ201

 1
81490C - LAMP ASSY, REAR FOG, LH
81490-60100

URJ201

 1
Common parts
90159-50311
