URJ201W-GNZGK (2015)

Toyota Lexus Lx570

Production Sep 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )

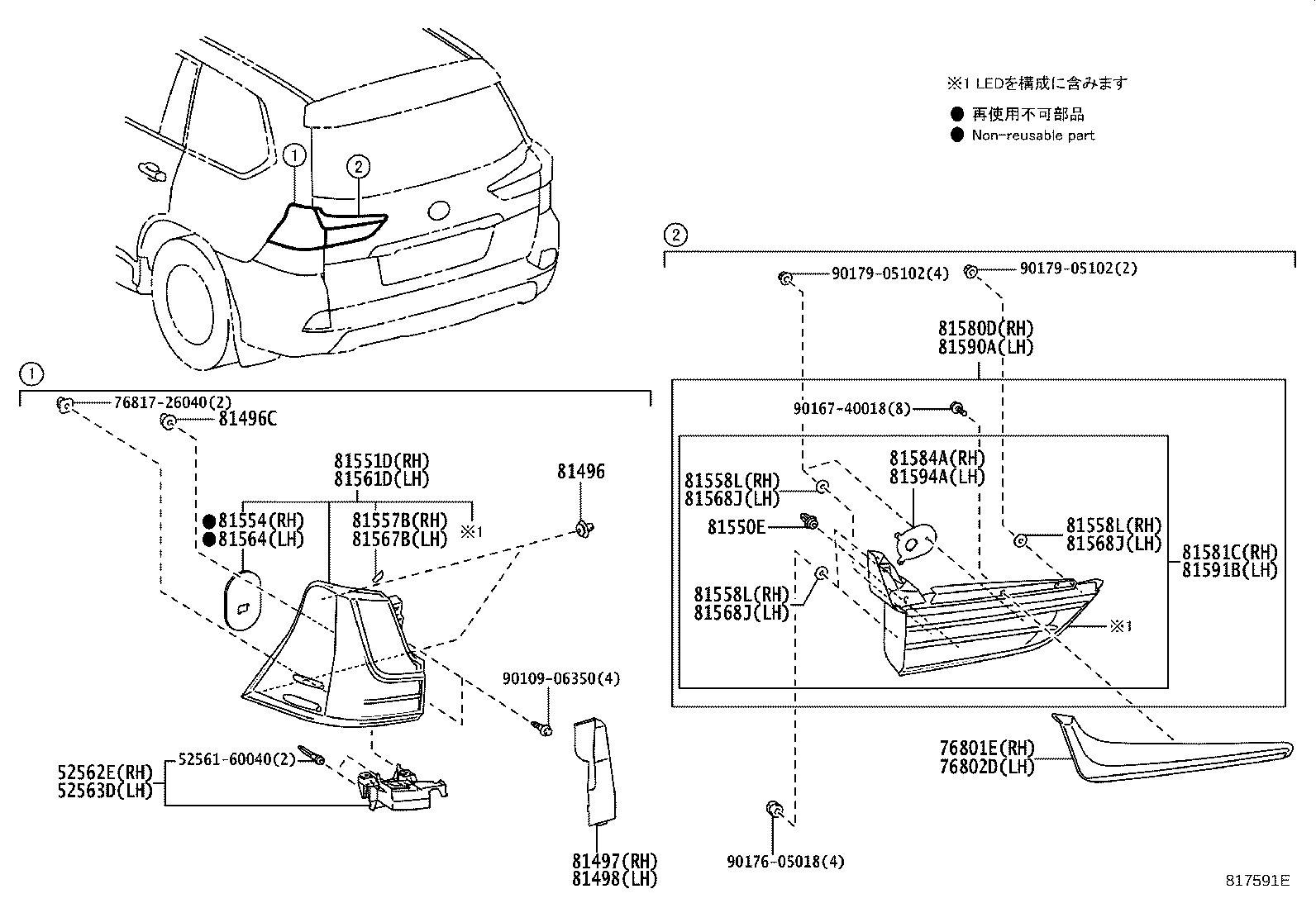

Click highlighted areas on diagram

diagram 5256160040 52562E 52563D 76801E 76802D 7681726040 81496 81496C 81497 81498 81550E 81551D 81554 81557B 81558L 81558L 81558L 81561D 81564 81567B 81568J 81568J 81568J 81580D 81581C 81584A 81590A 81591B 81594A 9010906350 9016740018 9017605018 9017905102 9017905102
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60080

URJ201

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60080

URJ201

 1
76801E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76801-60390

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
76801-60400

URJ201

 1
76801-60390

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
76802D - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH
76802-60180

URJ201

 1
76802-60230

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
76802-60230

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

URJ201

 4
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

URJ201

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-60010

URJ201

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-60010

URJ201

 1
81550E - CLIP(FOR REAR COMBINATION LAMP)
64726-30080

URJ201

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60C20

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81551-60C20

URJ201

 1
81551-60C81

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81551-60C00

URJ201

 1
81551-60C80

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-60C00

URJ201

 1
81554-60C80

URJ201

 1
81557B - PROTECTOR, REAR COMBINATION LAMP, RH
81558-60C00

URJ201

 1
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

URJ201

 4
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

URJ201

 4
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

URJ201

 4
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60B51

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81561-60C20

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81561-60C20

URJ201

 1
81561-60B50

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81561-60C00

URJ201

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-60C00

URJ201

 1
81554-60C80

URJ201

 1
81567B - PROTECTOR, REAR COMBINATION LAMP, LH
81558-60C00

URJ201

 1
81568J - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

URJ201

 4
81568J - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

URJ201

 4
81568J - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

URJ201

 4
81580D - LAMP ASSY, REAR, RH
81580-60420

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81580-60420

URJ201

 1
81580-60350

URJ201

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-60420

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81581-60350

URJ201

 1
81581-60420

URJ201

 1
81581-60330

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81581-60331

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81584A - GASKET, REAR LAMP RH
81584-60350

URJ201

 1
81590A - LAMP ASSY, REAR, LH
81590-60400

URJ201

 1
81590-60430

URJ201

 1
81590-60430

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-60430

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ)

 1
81591-60490

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81591-60491

URJ201

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,有り(*AHS & ｼｰｹﾝｼｬﾙﾀｰﾝ),ﾌﾞﾗｯｸﾀｲﾌﾟ

 1
81591-60430

URJ201

 1
81591-60400

URJ201

 1
81594A - GASKET, REAR LAMP LH
81584-60350

URJ201

 1
Common parts
52561-60040
76817-26040
90109-06350
90167-40018
90176-05018
90179-05102
