URJ201W-GNZGK (2015)
Toyota Lexus Lx570
Production
Sep 2015
-
Sep 9999
Engine
3URFE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1509- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-60230 |
URJ201 |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90114-12044 |
URJ201 |
8 | ||
| 46503B - NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 94151-21201 |
URJ201 |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-60370 |
URJ201 |
1 | ||
| 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR | ||||
| 46505-60220 |
URJ201 |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-34010 |
URJ201 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-34010 |
URJ201 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23052 |
URJ201 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY007 |
URJ201 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46530-34010 |
URJ201 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46530-34010 |
URJ201 |
1 | ||
| 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH | ||||
| 46601-0C010 |
URJ201 |
1 | ||
| 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 46602-0C010 |
URJ201 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
URJ201 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
URJ201 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22010 |
URJ201 |
4 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22010 |
URJ201 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
URJ201 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
URJ201 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
URJ201 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
URJ201 |
4 | ||
| Common parts | ||||
| 94151-21201 | ||||

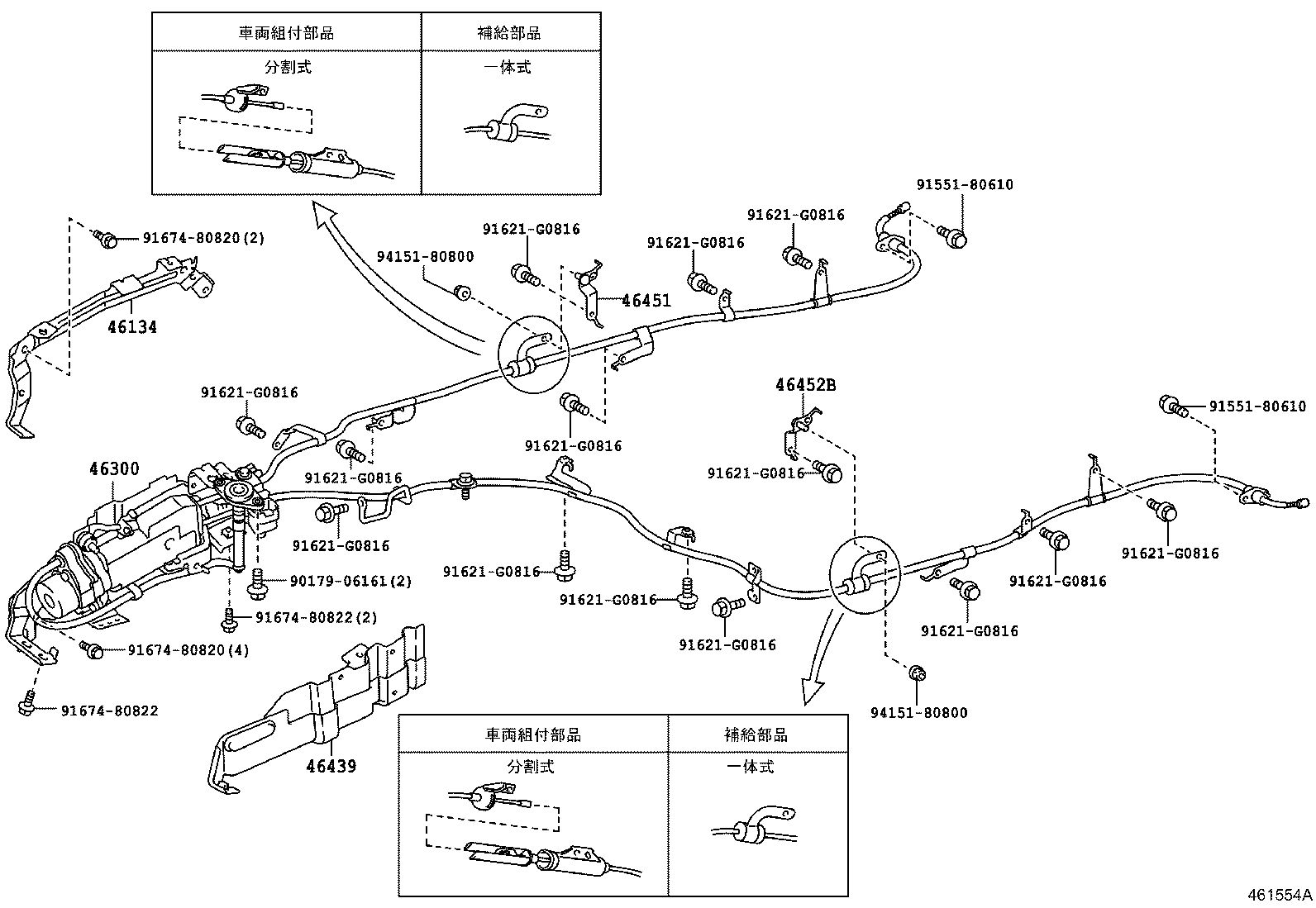

ILLUST NO. 1 OF 2(1509- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46134 - SUPPORT, PARKING BRAKE BRACKET, NO.2 | ||||
| 46134-60010 |
URJ201 |
1 | ||
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-60030 |
URJ201 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-60030 |
URJ201 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-60210 |
URJ201 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-60120 |
URJ201 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 91551-80610 | ||||
| 91621-G0816 | ||||
| 91674-80820 | ||||
| 91674-80822 | ||||
| 94151-80800 | ||||
